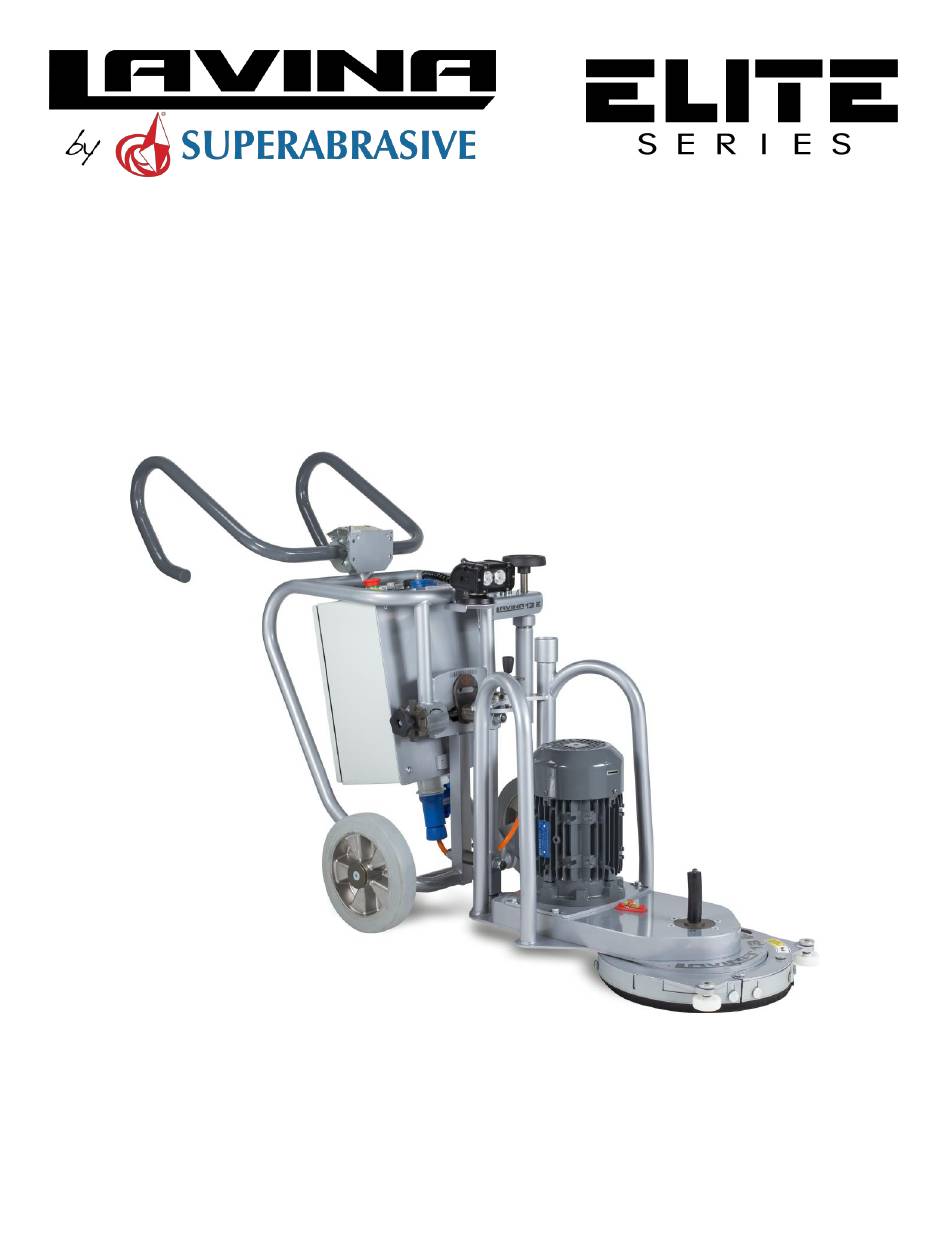

  • Page 1 LAVINA ELITE L13E User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
  • Page 2 Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019...

  • Page 3: Warranty And Returns

    WARRANTY AND RETURNS WARRANTY POLICY FOR LAVINA® E MACHINES A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2.

  • Page 4: Table Of Contents

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 4. TOOLS AND ACCESSORIES ......... 11 ..................2 WEIGHTS ................... 11 ....................11 Tool holder key................11 WARRANTY AND RETURNS ........ 3 Foam Plate ........Error! Bookmark not defined. WARRANTY POLICY FOR LAVINA® E MACHINES ......3 Security plate for Quickchange pads ..........

  • Page 5: General Information

    MANUFACTURER Superabrasive was founded in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.

  • Page 6: Vacuum Connection

    The data on the label provides the correct Voltage and kW (needed for operational purposes); Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). Customer Service For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at: www.superabrasive.com...

  • Page 7: Safety Instruction

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 2. SAFETY INSTRUCTION Position Risks due to operator’s incorrect working position RECOMMENDED USE Tangling up Risks due to wearing inappropriate working clothes The Lavina®13E machine is designed and manufactured to grind Training Risks due to lack of operational training and polish concrete, terrazzo and natural stone floors.

  • Page 8: Operator

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 The operator must understand and interpret all the drawings OPERATOR and designs in manual. The Lavina®13E machine. The operator must know all sanitation and safety regulations The operator must know the machine’s work environment.

  • Page 9: Adjusting Handle

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 ° Tilt crosswise to the left and to the right to 4 - release the screw handle (Fig. 3.5) Using the handle (Fig 3.6) and guided by the index line and the levelling put the operating part in the desired crosswise position and screw the handle (Fig 3.5)

  • Page 10: The Control Board

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 THE CONTROL BOARD 1. Digital RPM indicator Indicates the revolution per minute of the grinding plates (not the revolution per minute of the entire unit). Alarm/Reset button resets the alarm of the inverter. Button lights blue when the inverter goes into alarm mode.

  • Page 11: Tools And Accessories

    User Manual 2/2019 4. TOOLS AND ACCESSORIES WEIGHTS Superabrasive offers additional weights for increasing the productivity of the machine (Fig.4.1). Each additional weight weighs about 12,5 lbs or 5,67 kg for 1'' bars (0.83'' H x 8.86'' W x 8.86'' D).

  • Page 12: Popular Tools

    NATO® WITH QUICK CHANGE ATTACHMENT Superabrasive's Nato resin pucks are a great tool choice for soft and hard concrete polishing applications. Among the thickest diamond pads on the market - featuring a thick 12mm layer of resin and diamonds for extra long life. Wide channels and a unique patented design allow for work on a cleaner surface, ensuring a quality polish.

  • Page 13: Maintenance And Inspection

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 6. MAINTENANCE AND INSPECTION CLEANING Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they cause damage to the machine. Most importantly, check and clean the tool plate connections, power cord and plugs, vacuum hoses.

  • Page 14: Lavina® 13E Electrical Schemes With Yaskawa Inverter 200-240 Volt

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 LAVINA® 13E ELECTRICAL SCHEMES WITH YASKAWA INVERTER 200-240 VOLT Figure 6.3 LAVINA® 13E ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT TERMINALS The motor is connected in “Delta” (triangle) 230 Volt, reminder wire connection of the motor...

  • Page 15: Lavina® 13E-Hv Electrical Schemes With Yaskawa Inverter 440-480 Volt

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 LAVINA® 13E-HV ELECTRICAL SCHEMES WITH YASKAWA INVERTER 440-480 VOLT LAVINA® 13E-HV ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT TERMINALS The motor is connected in “Star” 380 Volt, reminder for the wire connection of the motor.

  • Page 16: Index Of Problems And Solutions

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 7. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 7.1 REPLACING POWER CORD AND PLUGS When replacing the power cord or plugs always use cords and plugs with specifications as the original ones. Never use lower quality or different type cord and plugs.
  • Page 17 Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 Figure 7.3.2 Figure 7.3.3 Figure 7.3.1 Figure 7.3.6 Figure 7.3.4 Figure 7.3.5 Figure 7.3.7 Figure 7.3.8 Figure 7.3.9 Make sure the four bolts holding the adaptor (Fig.7.3.12) are reliably tighten. Mount the holder on the machine using the same socket as mentioned in 7.2 (Fig.7.3.10;Fig.7.3.11).

  • Page 18: Tensioning The Belts

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 7.4 TENSIONING THE BELTS PLEASE MAKE SURE YOU CHECK THE TENSION OF THE BELT AFTER THE FIRST 15 HOURS OF OPERATION If the operator notices, the grinding spindle is turning irregular or noisy or in the worse case, the grinding spindle does not turn although the motor turns.

  • Page 19: Motor Connection

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 7.6 MOTOR CONNECTION In case of changing the motor, please check the cable connection to your motor (Fig.7.6.1 and Fig.7.6.2). Lavina 13E The motor is connected in “Delta” (Triangle) 230 Volt, reminder for the wire connection of the motor.

  • Page 20: Fault Diagnosis Inverter Yaskawa V1000

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 7.7 FAULT DIAGNOSIS INVERTER YASKAWA V1000 Pages are referring to Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual...
  • Page 21 Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019...

  • Page 22: Disposal

    2/2019 8. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 9. MANUFACTURER’S CONTACTS If you need to contact Superabrasive Inc.

  • Page 23: Spare Parts

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 10. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 1. LAVINA®13E GENERAL PARTS Item No. Description Pcs. L13E10.00.00 Main Head L13E20.00.00 Carriage L13X.30.00.00 Electric Cabinet M16DIN982 Self Locking Nut M16DIN125A Washer М8х20DIN6921 Bolt L13E40.00.00 Set Water OPTION 2.

  • Page 24: Lavina®13E Main Head 2

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 2. LAVINA®13E MAIN HEAD 2 Item No. Description Pcs. A64.00.00 Tool Holder A64 M5X12DIN912 Screw М5DIN7980 Washer L13GX10.40.00 Succer Cover L13GX10.00.02 Strip Brush M5DIN137B Spring Washer L13GX10.00.07 Screw L13GX10.30.00 Cover L13GX10.31.00 Cover L13GX10.30.01 Strip Brush L13GX10.00.07...
  • Page 25 Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 6. LAVINA®13E CARRIAGE PARTS 1 Item No. Description Pcs. Item No. Description Pcs. M10X16DIN7991 Screw F17760 Handle L25X-20.00.03 Wheel Cap M16DIN6319D Washer IFP250x50-25x60 Wheel M16DIN6319C Washer L13S-21.00.06-1 Bush L13S-20.40.01-1 Screw L13S-21.20.00 Connecting Rod A50.00.00.00...

  • Page 26: Lavina®13E Carriage Parts 2

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 5. LAVINA®13E CARRIAGE PARTS 2 Item No. Description Pcs. L13GX21.00.00 Handle M8X16DIN912 Screw M5X12DIN6921 Bolt L20GX-23.00.11 Fixator L20GX-23.20.00 Fixator M6X16DIN6921 Bolt L20GX-23.00.01 Flange M6X12ISO7380-1 Screw М6DIN9021 Screw L20GX-23.00.02-1 Axle M8DIN985 Self Locking Nut L13E20.40.00...

  • Page 27: Control Box Parts 200-240 Volt

    Original Language Lavina®13E/Lavina®13E-HV Superabrasive User Manual 2/2019 7. CONTROL BOX PARTS 200-240 VOLT 7. LAVINA® 13E CONTROL BOX PARTS 200-240 VOLT Item No. Description Pcs. Item No. Description Pcs. L20NS-30.10.11 Switch Button F/R L13X-30.11.00 Metal Box Plate L20NS-30.10.04 Potentiometer L13X-30.11.02 Rail L32S-30.10.25...
