M-system MFS2 Instruction Manual

INSTRUCTION MANUAL
SPLIT-RANGE TRANSMITTER
(isolated four outputs)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner
(body + base socket + input resistor)..................................(1)
Input resistor is provided only with current input type.
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
This unit is factory adjusted and calibrated according to the
Ordering Information included in the product package.
The MFS2 is programmable using the PC Configurator
Software. For detailed information on the PC configuration,
refer to the MFS2CFG users manual. The MFS2CFG PC
Configurator Software is downloadable at M-System's web
site: http://www.m-system.co.jp.
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
85 – 264V AC rating: 85 − 264V, 47 – 66 Hz, approx. 4 – 6.5VA
24V DC rating: 24V ±10%, approx. 2W
110V DC rating: 85 – 150V, approx. 2W
■ GENERAL PRECAUTIONS
• Before you remove the unit from its base socket or mount
it, turn off the power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within 0 to 50°C
(32 to 122°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.

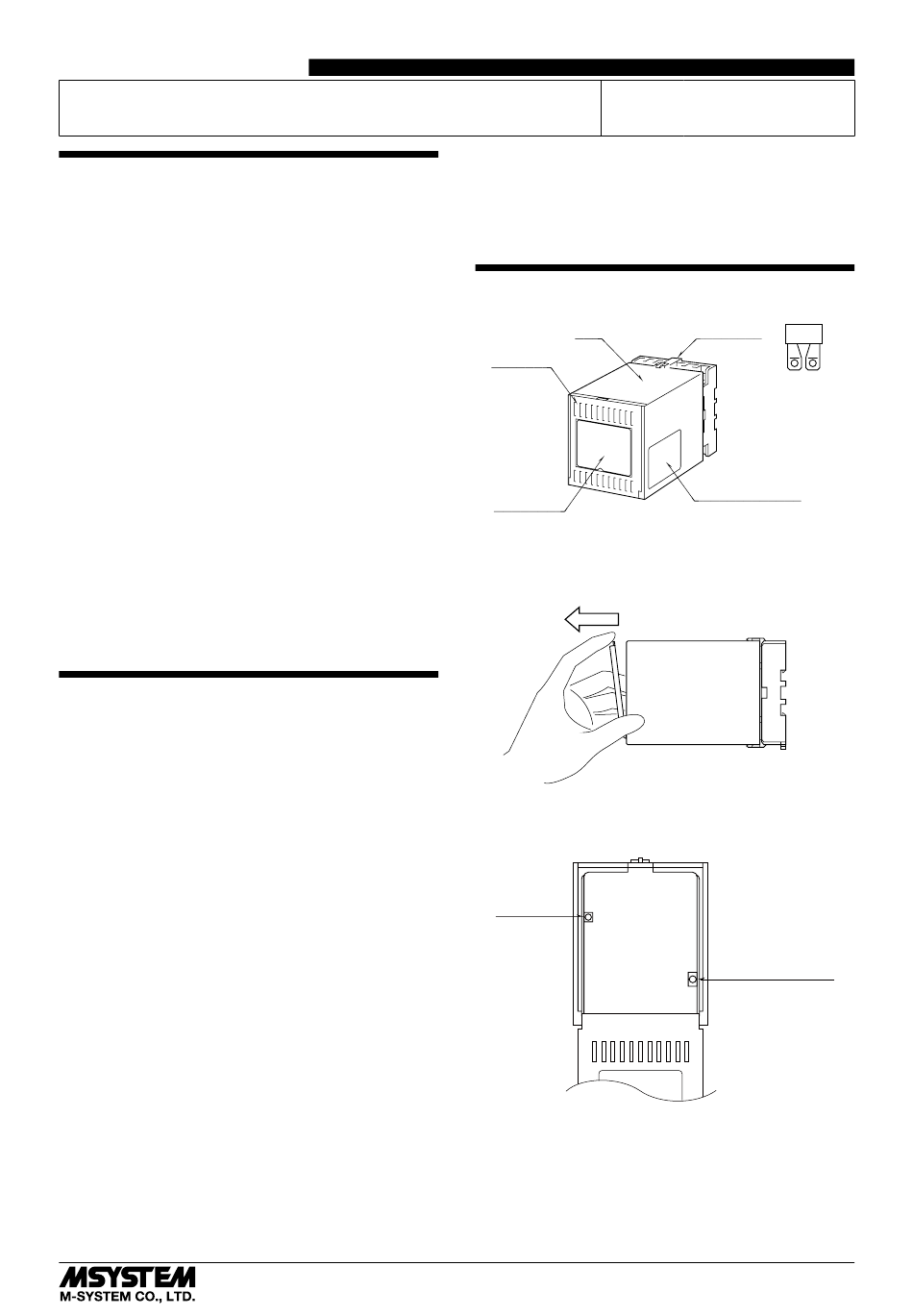

COMPONENT IDENTIFICATION
Body
Front Cover
Specification
■ HOW TO OPEN THE FRONT COVER:
Hang your finger on the hook at the top of front cover and
pull.
The shape of base socket may be different
for some models.
■ FRONT PANEL CONFIGURATION
Power LED
MFS2
Base Socket
Input Resistor
Connection Diagram
PC Configurator Jack
EM-1383 Rev.3 P. 1 / 4
