1.0 Introduction

1.1 Overview of the CM2001

The Legrand CM2001 Video Door Internet Enabling Kit (see Figure 1), when used with the Legrand
Selective Call Intercom system, provides local or remote network access to images from the SCI Video
Door Unit camera. These images (still or compressed video) may be recorded and/or sent via email to a
remote user. The trigger to start recording can be configured as a simple doorbell button push on the SCI
VDU.

1.2 Product Features


H.264 / MPEG-4 / M-JPEG Video Compression

30 fps video frame rate in all resolutions (4CIF(D1), CIF, QCIF)

Auto MDI/MDI-X supported (IEEE 802.3 10Base-T / IEEE 802.3u 100Base-T) on network port

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour,
UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, and Samba protocols supported

Supports up to 20 simultaneous users

Image file upload via FTP, Samba to NAS, micro SD card or email, HTTP and TCP

DHCP or Static IP operation

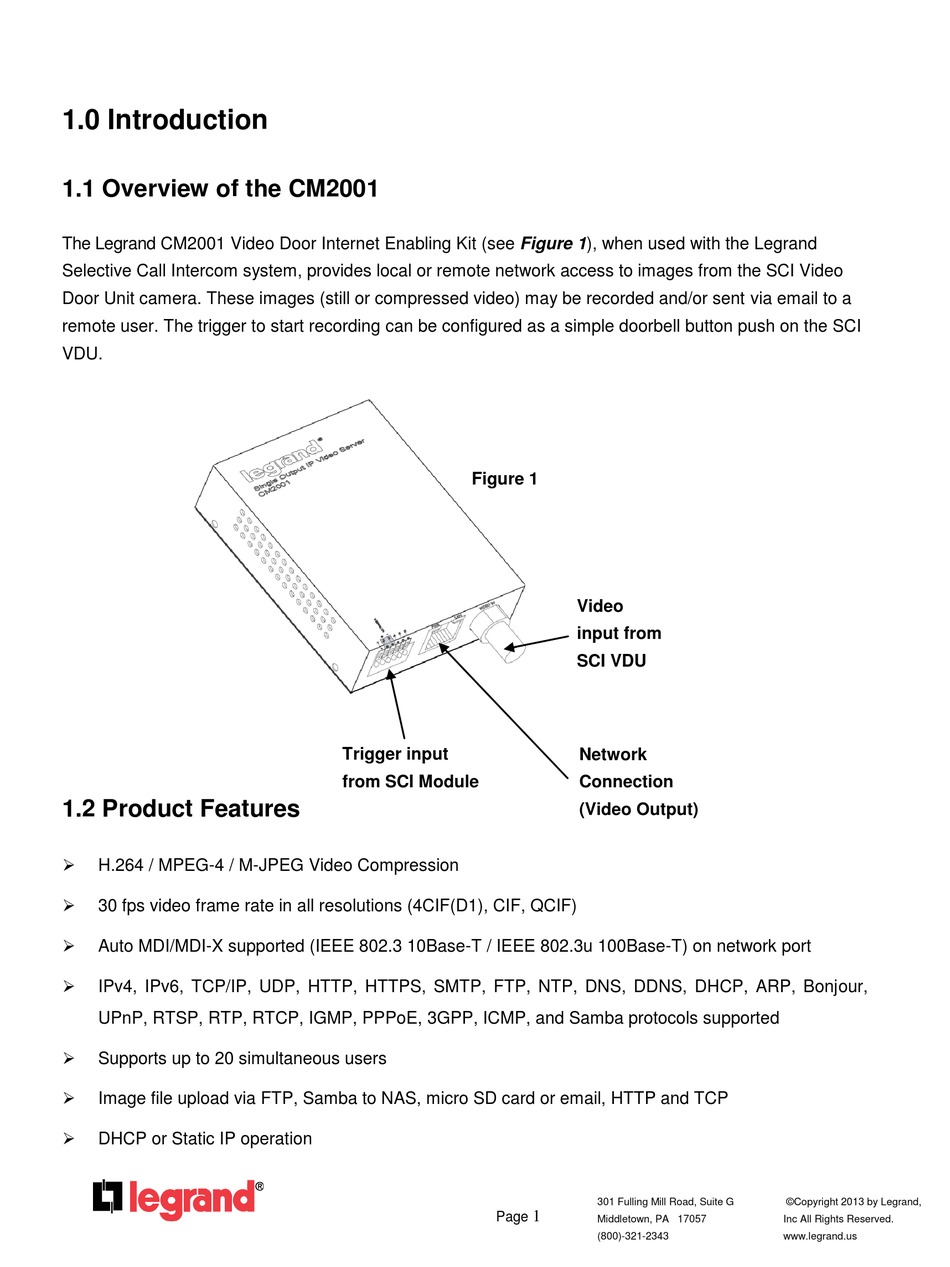

Figure 1
Trigger input
from SCI Module
Page
Video
input from
SCI VDU
Network
Connection
(Video Output)
