Hubbell KILLARK KFLC Series Installation, Operation & Maintenance Data Sheet

Led luminaire flood

INSTALLATION, OPERATION & MAINTENANCE DATA

KFLC SERIES LED LUMINAIRE FLOOD

Luminaires are designed to be installed in Class I, Division 2, Class II, Division 1, or Class I Zone 2

Hazardous locations.

CAUTION: Before installing luminaire, make sure luminaire complies with area classifications,

failure to do so may result in bodily injury and/or property damage. Do not attempt installation

until you are familiar with the following procedures. All installation must comply with the

applicable local and/or National Electrical Code and be performed by a qualified electrician.

Make sure that the circuit is de-energized before starting installation or maintenance.

Verify that luminaire is grounded. Failure to ground will create electrical shock hazards, which can

cause serious injury and or death.

NOTE- For Class I, Division 2 / Class II, Division 1 / Class I, Zone 2 Hazardous Locations, use rigid conduit or

appropriate cable connector.

INSTALLATION INSTRUCTIONS:

FLOOD LIGHT WITH YOKE MOUNT: (See Figure 1)

1. For convenience, install the yoke bracket on the trunnion before mounting the structure.

2. Loosen bolts - aim the floodlight to the desired spot.

3. Tighten both bolts securely.

4. Fasten the yoke bracket to the mounting location using ½" bolts/fasteners.

P/N KIL00921414 FORM NO. K1414 ERO-6-059-13 07/13

SHEET

FOR

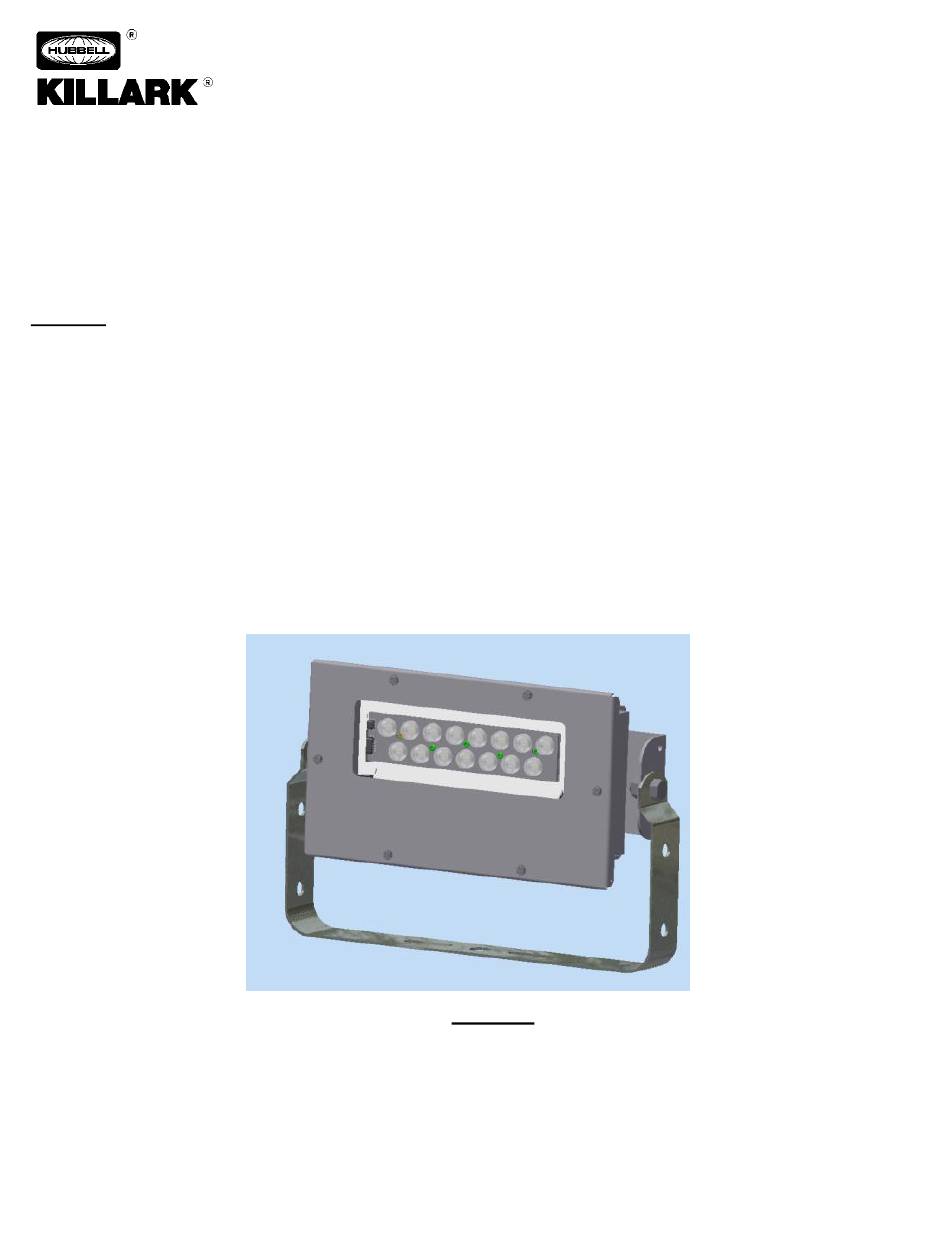

Figure 1

HUBBELL ELECTRICAL PRODUCTS

A Division of

HUBBELL

INCORPORATED

(Delaware)

3940 Martin Luther King Drive

St. Louis, Missouri 63113 USA

Sheet 1 of 4

Table of Contents

Do you have a question about the KILLARK KFLC Series and is the answer not in the manual?

Page 1 HUBBELL ELECTRICAL PRODUCTS A Division of HUBBELL INCORPORATED (Delaware) 3940 Martin Luther King Drive St. Louis, Missouri 63113 USA INSTALLATION, OPERATION & MAINTENANCE DATA SHEET KFLC SERIES LED LUMINAIRE FLOOD Luminaires are designed to be installed in Class I, Division 2, Class II, Division 1, or Class I Zone 2 Hazardous locations.
Page 2 IMPORTANT NOTE: Turn off electricity to circuit at main fuse or at circuit breaker. 1. Loosen and remove the six (6) lens frame screws. Remove lens frame assembly to allow for entry into fixture. See Figure 2 for more details 2.
Page 3 OPTIONAL DARK SKIES REFLECTOR AND GUARD 1. Place reflector between the yoke and the star washer. See Figure 3 2. To place the dark skies reflector properly when the fixture is aimed at 70 degrees with respect to the ground, align the back hole in the reflector with the hole in the body.
Page 4 Figure 6 Guard Assembly MAINTENANCE INSTRUCTIONS: CAUTION: Disconnect the supplying circuit before opening fixture or removing optics. To maintain maximum light output, this fixture should be cleaned periodically. Maintenance procedures sometimes require fixtures to be hosed down for good housekeeping. The supply circuit must be turned and the fixture lens must be allowed to cool to the ambient room temperature before cleaning.
