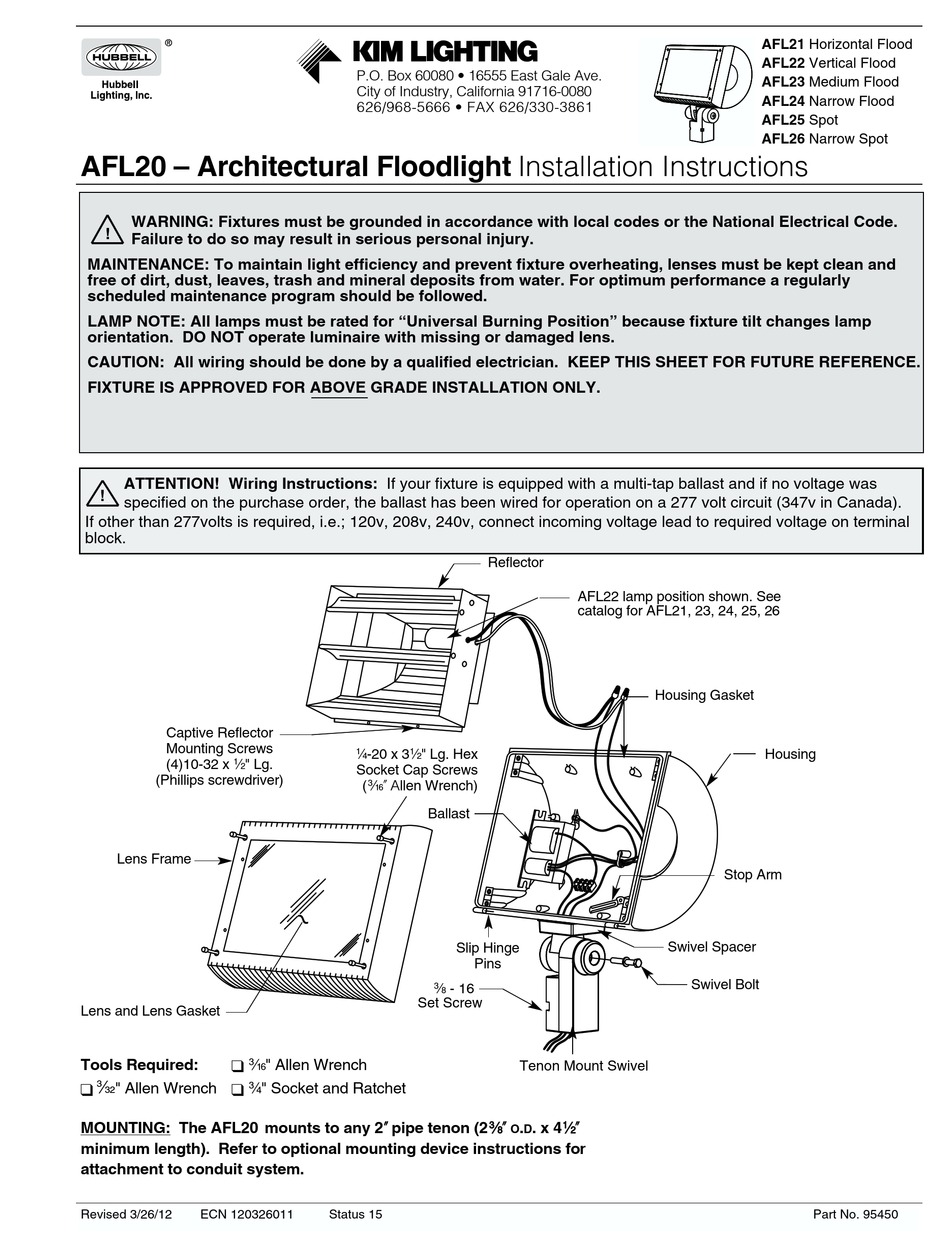

AFL20 – Architectural Floodlight Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
MAINTENANCE: To maintain light efficiency and prevent fixture overheating, lenses must be kept clean and
free of dirt, dust, leaves, trash and mineral deposits from water. For optimum performance a regularly
scheduled maintenance program should be followed.
LAMP NOTE: All lamps must be rated for "Universal Burning Position" because fixture tilt changes lamp
orientation. DO NOT operate luminaire with missing or damaged lens.
CAUTION: All wiring should be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
FIXTURE IS APPROVED FOR ABOVE GRADE INSTALLATION ONLY.
ATTENTION! Wiring Instructions: If your fixture is equipped with a multi-tap ballast and if no voltage was
!
specified on the purchase order, the ballast has been wired for operation on a 277 volt circuit (347v in Canada).
If other than 277volts is required, i.e.; 120v, 208v, 240v, connect incoming voltage lead to required voltage on terminal
block.
Captive Reflector
Mounting Screws
(4)10-32 x K" Lg.
(Phillips screwdriver)
Lens Frame
Lens and Lens Gasket
Tools Required:
F" Allen Wrench
⁄
3
" Allen Wrench
L" Socket and Ratchet
32
MOUNTING: The AFL20 mounts to any 2" pipe tenon (2C"
minimum length). Refer to optional mounting device instructions for
attachment to conduit system.
Revised 3/26/12
ECN 120326011
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
Reflector
J-20 x 3K" Lg. Hex
Socket Cap Screws
(F" Allen Wrench)
Ballast
Slip Hinge
Pins
C - 16
Set Screw
Status 15
AFL22 lamp position shown. See
catalog for AFL21, 23, 24, 25, 26
Housing Gasket
Swivel Spacer
Tenon Mount Swivel
.
. x 4K"
O
D
AFL21 Horizontal Flood
AFL22 Vertical Flood
AFL23 Medium Flood
AFL24 Narrow Flood
AFL25 Spot
AFL26 Narrow Spot
Housing
Stop Ar
m
Swivel Bolt
Part No. 95450
