INSTALLATION INSTRUCTIONS - SGF2 OR SGF3 SLING FLOODLIGHT
WARNING! Fixtures must be grounded and installed in accordance with the National Electrical Code and all local codes. Failure to do so may increase
the RISK OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH. Install and use so fixture failures do not cause a hazard and use only in
environments for which the product is specifically marked.
WARNING! This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. Thoroughly
wash hands after installing, handling, cleaning, or otherwise touching this product.
WARNING! Dangerous voltage exist within the unit and all precautions usually observed in handling high voltage equipment should be observed when
replacing light engine or otherwise servicing luminares. Disregarding this warning could result in electrical shock and possible injury to the individual
installing or servicing this equipment. Installation and servicing should be done by qualified personnel.
CAUTION! Follow ALL luminaire recommendations, product markings, instructions, restrictions and warnings regarding luminaire operation and burning
position. Luminaire label shows electrical and environmental requirements and restrictions.
NOTE! This luminare is designed for outdoor lighting applications with ambient temperatures not exceeding 40°C (104°F).
All electrical work must be done by a qualified electrician.
Turn off electric power to all affected circuits and allow to cool before installation or servicing.
A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention. Dusting with a soft, clean,
dry cloth is normally sufficient for the optical system. Any accumulation of dust or dirt should be removed regularly.
Carefully read these instructions before installing product. If you do not understand these instructions, before starting any work, contact your Hubbell
Lighting distributor or techsupport@hubbell-ltg.com or (864) 678-1000
Give instructions to facility owner/manager for future reference.
Tools required for SGF2 or SGF3 that are provided with (T) Trunnion mounting device: 8mm and 5mm hex key. Adjustable wrench.
Tools required for SGF2 or SGF3 that are provided with (K) Knuckle mounting device: 14mm and 6mm hex key.

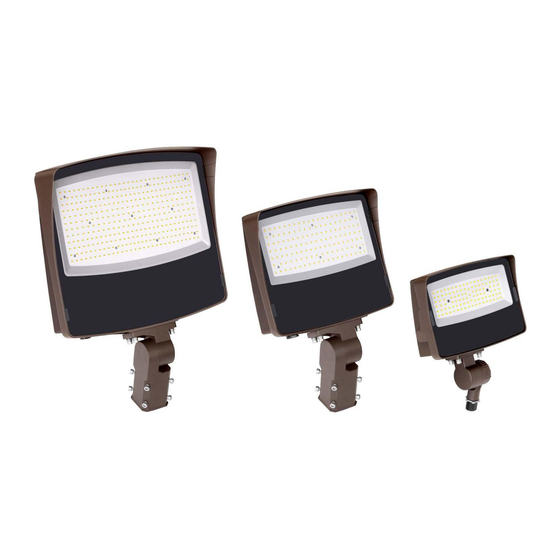

To determine if your light fixture is (T) Trunnion or (K) Knuckle, please see the pictures below.
Please note that these light fixtures can not be opened because they have a glass lens that is completely sealed to the housing with adhesive.
Wiring of fixture: Your fixture may have wires for dimming, see below to determine. Wires are as follows; Black wire (line voltage), White wire
(neutral), Green or Green Yellow (ground), Pink wire is DIM (-) (0-10VDC dimming) if dimming is not desired cap this wire. Purple wire is DIM
(+) (0-10VDC dimming) if dimming is not desired cap this wire.
Fixture Wiring
