WARNING
DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION
SAFETY PRECAUTIONS
1. Do not mount the body of this fixture within an inch of any combustible
material.
2. Do not mount in a closed room or boxedin location where air cannot circulate
around the fixture. The normal operating temperature of a quartz halogen
fixture is very high and requires free air circulation so the fixture will
not over heat.
3. Turn off power before installation and servicing. Before installing consult
local electrical codes for wiring and grounding requirements.
4. For use with 120 volts only.
5. Do not look directly at lighted lamp.
INSTALLATION
1. This unit operates on regular household power. (120V,60HZ)
2. Fixture is supplied with two leads of I~AWG, SF2 wires six inches long.
Connect one to black service wire and other to white service wire, using wire
nuts, crimpon lugs or other approved device. Make sure connections are
secure and no loose wire strands are sticking out of connector. Then, connect
fixture ground wire to house ground wire for grounding requirement.
Hubbell Canada LP, Lighting Division
870 Brock Road South, Pickering, ON, L1W 1Z8
Tel. (905) 8391138

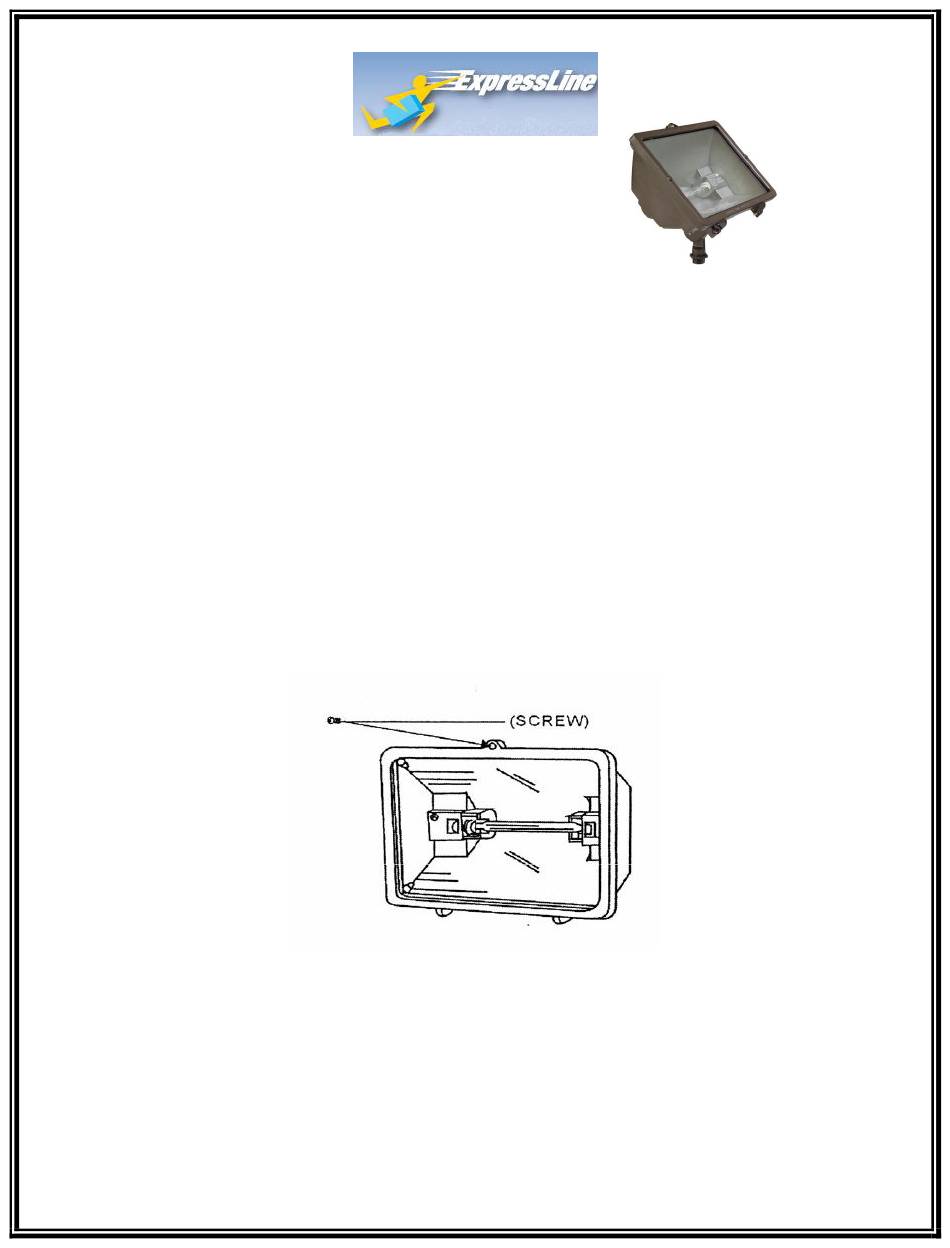

INSTALLATION INSTRUCTIONS
Quartz Flood
Q500 / Q300 Series
For more information, visit our website: www.hubbellonline.com
Advertisement
Table of Contents
Related Manuals for Hubbell Quartz Flood Q500 Series
Summary of Contents for Hubbell Quartz Flood Q500 Series
- Page 1 INSTALLATION INSTRUCTIONS Quartz Flood Q500 / Q300 Series WARNING DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING. READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION SAFETY PRECAUTIONS 1. Do not mount the body of this fixture within an inch of any combustible material. 2. Do not mount in a closed room or boxedin location where air cannot circulate around the fixture. The normal operating temperature of a quartz halogen fixture is very high and requires free air circulation so the fixture will not over heat. 3. Turn off power before installation and servicing. Before installing consult local electrical codes for wiring and grounding requirements. 4. For use with 120 volts only. 5. Do not look directly at lighted lamp. INSTALLATION 1. This unit operates on regular household power. (120V,60HZ) 2. Fixture is supplied with two leads of I~AWG, SF2 wires six inches long. Connect one to black service wire and other to white service wire, using wire nuts, crimpon lugs or other approved device. Make sure connections are secure and no loose wire strands are sticking out of connector. Then, connect fixture ground wire to house ground wire for grounding requirement. Hubbell Canada LP, Lighting Division 870 Brock Road South, Pickering, ON, L1W 1Z8 Tel. (905) 8391138 For more information, visit our website: www.hubbellonline.com ...
- Page 2 INSTALLATION INSTRUCTIONS Quartz Flood Q500 / Q300 Series WARNING DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING. READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION AIMING 1. Rotate fixture horizontally to illuminate the desired area. Make sure that the bulb in the fixture is no more than 4 degrees from level horizontally for electric shock, position the fixture 15 degrees below horizontal for rain tight. 2. Set the vertical aiming by loosing bolt at the pivot. Aim fixture at desired angle and securely retighten bolt. Apply silicone sealant on the following location for rain tight. A. Elbow screw. C. Thread plug B. Elbow joint. D. Cover and junction box joints INSTALLING BULB & SERVICING 1. Unscrew to release glass shield. 2. Using a clean cloth or paper to protect the T3 bulb from your bare hands, fit the T3bulb into the right hand springloaded socket and push towards it. Make sure that each of the bulb is securely seated against the socket contact. 3. Close door and tighten screw for secure seal. TROUBLE SHOOTERCHECK LIST IF LIGHT DOES NOT WORK: Check Your Power Source. Check To Insure Proper Seating Of Lamp. Check Electrical Connections. Check If Lamp Filament Is Burned Out or Broken. Hubbell Canada LP, Lighting Division 870 Brock Road South, Pickering, ON, L1W 1Z8 Tel. (905) 8391138 For more information, visit our website: www.hubbellonline.com ...
