Hubbell RFL4 Installation Instructions

INSTALLATION INSTRUCTIONS - RFL4 & RFL5 LED FLOOD
WARNING! Fixtures must be grounded and installed in accordance with the National Electrical Code and all local codes. Failure to do so may increase
the RISK OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH. Install and use so fixture failures do not cause a hazard and use only in
environments for which the product is specifically marked.
WARNING! This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. Thoroughly
wash hands after installing, handling, cleaning, or otherwise touching this product.
WARNING! Dangerous voltage exist within the unit and all precautions usually observed in handling high voltage equipment should be observed when
replacing light engine or otherwise servicing luminares. Disregarding this warning could result in electrical shock and possible injury to the individual
installing or servicing this equipment. Installation and servicing should be done by qualified personnel.
CAUTION! Follow ALL luminaire recommendations, product markings, instructions, restrictions and warnings regarding luminaire operation and burning
position. Luminaire label shows electrical and environmental requirements and restrictions.
NOTE! This luminare is designed for outdoor lighting applications with ambient temperatures not exceeding 40°C (104°F).
All electrical work must be done by a qualified electrician.
Turn off electric power to all affected circuits and allow to cool before installation or servicing.
A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention. Dusting with a soft, clean,
dry cloth is normally sufficient for the optical system. Any accumulation of dust or dirt should be removed regularly.
Carefully read these instructions before installing product. If you do not understand these instructions, before starting any work, contact your Hubbell
Lighting distributor or techsupport@hubbell-ltg.com or (864) 678-1000
Give instructions to facility owner/manager for future reference.

Mounting The Fixture

Tools Required:
3/4" or 3/8" Wrench or Socket (Trunnion Mount)
3/8" Hex Key
•
Turn off power to electrical connections.
•
Wiring must be performed by a qualified electrician.
•
Make electrical connections according to the local and National Electrical Codes.
•
Remove fixture from packaging along with hardware bag.
•
There are three wires coming out of this fixture:
Black Wire - Line Voltage
White Wire - Neutral
Green Wire - Ground
Connect these wires to the supply wires using the wire nuts provided in the hardware bag.

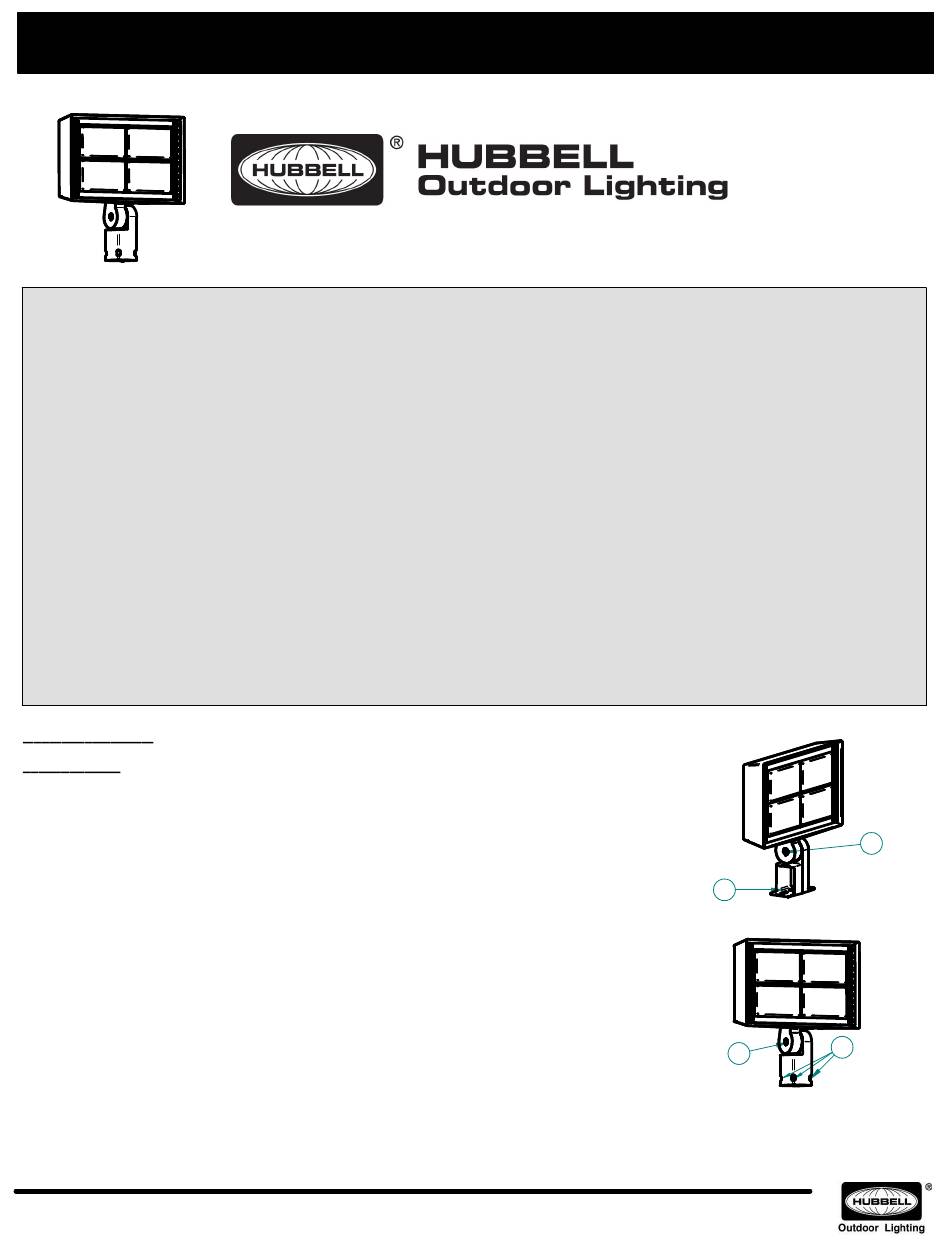

Trunnion Mount (Fig. 1):
•
Use a minimum of two 3/8" diameter bolts or one 3/4" diameter bolt for mounting (Item 1 in Fig. 1).
•
Loosen the bolt (Item 2 in Fig. 1) on the knuckle using a 3/8" hex key to allow the fixture to be aimed up or down.
•
Once the fixture is aimed at the desired target, tighten the bolt (Item 3 in Fig. 1) on the knuckle.
Knuckle Mount (Fig. 2):
•
Mount fixture on 2 3/8" tenon, tighten down 4 set screws (Item 3 Fig. 2).
•
Loosen bolt inside knuckle enough to adjust fixture. Once fixture is aimed at the desired target, tighten the bolt
(Item 4 Fig. 2).
93101891 Rev. A
Hubbell Lighting • 701 Millennium Boulevard • Greenville, SC 29607 • Phone: 864-678-1000
Due to our continued efforts to improve our products, product specifications are subject to change without notice.
© 2016 Hubbell Lighting, All Rights Reserved • For more information visit our website: www.hubbelloutdoor.com
SAVE THESE INSTRUCTIONS
READ THOROUGHLY BEFORE INSTALLATION
SHEET 1 OF 2
2
1
FIGURE 1
3
4
FIGURE 2
