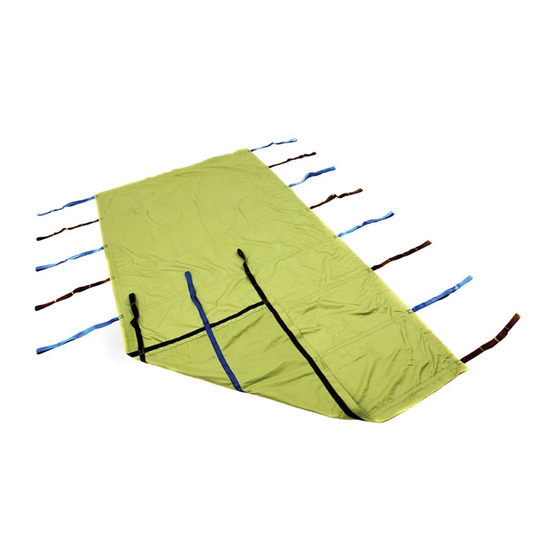

RepoSheet Original has been specially developed by
Liko to facilitate repositioning of the patient in bed. It is
ideal for moving the patient higher up in the bed and
turning the patient with the aid of a lift, with minimal
physical effort by the caregiver.
Repositioning can be done by one person, but we
recommend that two caregivers assist, since this is a
timesaving and efficient way to work.
RepoSheet Original can be used in combination with,
or instead of, an ordinary bed sheet.
Two models are available; Regular, for lifting up to
200 kg (440 lbs.), and Ultra, a heavier sheet for lifting
up to 500 kg (1100 lbs.).
RepoSheet Original is available in two different
materials. In most cases the design in cotton/polyester
is recommended, which has a soft and comfortable
RepoSheet Original is best used in combination with overhead lifts. We recommend Likorall, Multirall or
Liko MasterLift. See last page for recommended sling bars.
In this document, the person being lifted is referred to as the "patient" and the person helping them is referred to
as the "caregiver".
is a warning triangle used for situations that require extra care and attention.
Read the instruction guide for both the lifting accessory and the lift being used. Instruction guides can
be downloaded, free of charge, at www.liko.com.
Product Description
surface. Net polyester is recommended in cases
where the patient is supported on a special matress,
a so called low-air-loss matress, for pressure sore
treatment.
RepoSheet Original is not intended for lifting and
transferring from a supine to a sitting position. In these
cases we recommend using our slings, which are
available in many different models.
When lateral transfer is performed using the
RepoSheet, it is critical that a sufficient number of lift
straps are connected to the sling bar to ensure that
the patient gets sufficient support under the body for a
safe lifting during the transfer. Also, take care to assure
that no unconnected loop straps are dangling in such
a manner as to catch on any objects in the path of
movement.
RepoSheet ™ Original
Instruction Guide
English
7EN160156-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hill-Rom Liko RepoSheet Original
Summary of Contents for Hill-Rom Liko RepoSheet Original
- Page 1 RepoSheet ™ Original Instruction Guide English 7EN160156-02 Product Description RepoSheet Original has been specially developed by surface. Net polyester is recommended in cases Liko to facilitate repositioning of the patient in bed. It is where the patient is supported on a special matress, ideal for moving the patient higher up in the bed and a so called low-air-loss matress, for pressure sore turning the patient with the aid of a lift, with minimal...
- Page 2 Safety Instructions Keep the Following in Mind: A responsible person within your organization should decide on a case-by-case basis whether one or more • caregivers are needed. Plan the transfer operation carefully to make it as safe and smooth as possible. •...
- Page 3 Definitions 1. Loop straps 2. Serial number 3. Product label 4. Periodic Inspection label 5. Lift straps Procedure In some cases, especially when you want the patient to The first time RepoSheet Original is placed on the bed, remain as horizontal as possible during the lift, it may it is easiest if the patient is first lifted up from the bed in be better, instead, to use SideBars and distribute the a sling, for example,...
- Page 4 Lifting the Patient Higher Up in Bed With or Without SideBars With SideBars Without SideBars Lift up until the patient’s body clears the mattress and Hook the loop straps to the sling bar hooks on the can be moved up to the desired position. During re- respective sides (see the small illustrations).
- Page 5 Position the patient to make turning easier: arms at Help the patient to achieve a comfortable posture, e.g., placing pillows for support (behind the back, between sides, one leg over the other. the knees, under the head). Lower the sling bar and Lift carefully, so that the patient is turned to one side disconnect the loop straps.
- Page 6 Recommended Combinations with Liko’s Sling Bars: Lift and positioning higher up in bed: RepoSheet Original, Regular Explanation: RepoSheet Original, Ultra 1 = Recommended All recommendations apply to combinations both with and without SideBars. 2 = May work 3 = Not advisable 4 = Inappropriate Lift and positioning, turning in bed: RepoSheet Original, Regular...
