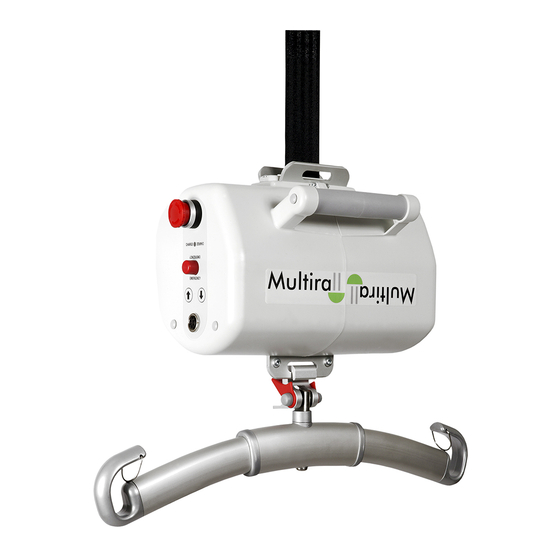

- Page 1 Multirall™ 200 overhead lift Service Manual Product No. 3130001 Multirall Multirall 3EN250401 Rev. 18 ENGLISH...
- Page 2 Spare parts are available in the spare parts list or in the Service Manual for each model of lift. Components (manufacturing parts) are not available after last manufacturing date. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts.
-
Page 3: Table Of Contents
Table of Contents Multirall™ 200 overhead lift Page Technical Data 1.1 Dimensions ............ 5 1.2 Technical Data ..........5 2.0 Troubleshooting ............. 6 3.0 Spare Parts Positions ............. 7 Spare Parts List .............. 8 5.0 Spare Parts Assembly Information ....... 10 6.0 Periodic Inspection Information ........13 7.0 Preventive Maintenance .......... - Page 4 1.1 Dimensions Multirall™ 200 overhead lift Ceiling Lateral view (Central Suspension Point) Overhead L*** view Measurements in mm. L*** 1600 Measurements in inch. L*** 10.4 11.6 17.4 12.1 63.0 Min. distance from ceiling to CSP at max. lifting height. Installation dimensions: the distance between the attachment point for the lift unit on the carriage and the CSP at max. lifting height. Lifting interval: the distance between max.
- Page 5 3. Check that the hand control is correctly connected. If connected, check the hoist switches for operation. If the lift still does not work satisfactorily, please contact Hill-Rom. The lift emits a repeated sound or 1. Charge the battery immediately. light signal.
-
Page 6: Spare Parts Positions
365 366 264 311 365 366 264 311 Spare Parts List • Liko™ Overhead Lifts 3EN800803 Rev. 3 www.hill-rom.com l www.liko.com Service Manual Multirall™ • 3EN250401 Rev. 18 www.hillrom.com overhead lift Spare Parts List • Liko™ Overhead Lifts 3EN800803 Rev. 3... -
Page 7: Spare Parts List
Multirall ™ 200 overhead lift 5.0 Spare Parts List PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31190018 Latch pair 3EN640271 31290007 Battery 2,4-2,6 Ah/12 V pair 3SE630239 3106004 Parking Bracket Fits Instruction Placard Multirall, 3136003 31390004 Cable for Hand control with Conn. 3SE640231 Plug 31390005... - Page 8 Multirall ™ 200 overhead lift 5.0 Spare Parts List PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31290091 Cable grommet, 10 pce 3SE690214 31390010 Electronic Card ll MR 3SE690219 31390014 Lift Strap Multirall 3SE670220 (including Limiting switch) 31390013 Extension Arm Multirall 3EN690245 Fits Carriage S65, Prod.
- Page 9 5.0 Spare Parts List Multirall ™ 200 overhead lift PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 3136016 Adapter MR/LR Fits Carriage hook for MR/LR, Prod. No. 3136015 Spare Parts List • Liko™ Overhead Lifts 3EN800803 Rev. 6 www.hillrom.com Service Manual Multirall™ •...
-
Page 10: Spare Parts Assembly Information
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Document Number - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. 3EN650261 Rev. 3 ENGLISH www.hill-rom.com... - Page 11 4 N-m (35 in-lbs). Make sure the screws are entirely inserted when tightened. See the illustrations below. Center line Side View Front View 3EN680109 Rev. 1 ENGLISH www.hill-rom.com l www.liko.com Service Manual Multirall™ • 3EN250401 Rev. 18 www.hillrom.com overhead lift...
- Page 12 Make sure when mounting the carriage that it is resting securely in the S65 hook and is not angled or leaning to one side. • Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko spare parts.
-
Page 13: Periodic Inspection Information
Post Code Liko™ overhead lifts must be thoroughly inspected at least once per year. Inspection and service must be carried out by Hill-Rom authorized personnel. If the lift is installed in a corrosive environment such as indoor pool or bathroom, see inspection point 11 before starting inspection. -
Page 14: Preventive Maintenance
Expected Life Time The expected life time of a Multirall™ overhead lift is 10 years of normal use provided that required Periodic Inspection and Preventive Maintenance is performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. However certain parts have a shorter life cycle and will need to be replaced in order for the overhead lift to meet its expected life time. -
Page 15: Product Changes
8.0 Product Changes, Multirall™ 200 overhead lift Prod. No. 3130001 Multirall Multirall Multirall 2021 Changes Type Prod. No. Rev. From S/N Proj. Q-link 31590005 removed as spare part to Multirall. MOD1322 Replaced by Q-link II 31590027. Improved design of hook R2R. The new design of hook R2R Univ SlingBar 450 R2R 3156095 1210645... - Page 16 8.0 Product Changes, Multirall™ 200 overhead lift Prod. No. 3130001 Changes From S/N Project 2013 The lift straps has been modified. New type of seam and new 6 506 400 1799 treaded bolt. The Lift Strap Spare Part has got new spare part number: 3139011 LiftStrap Multirall.
