Hill-Rom Liko Viking XS Instruction Manual

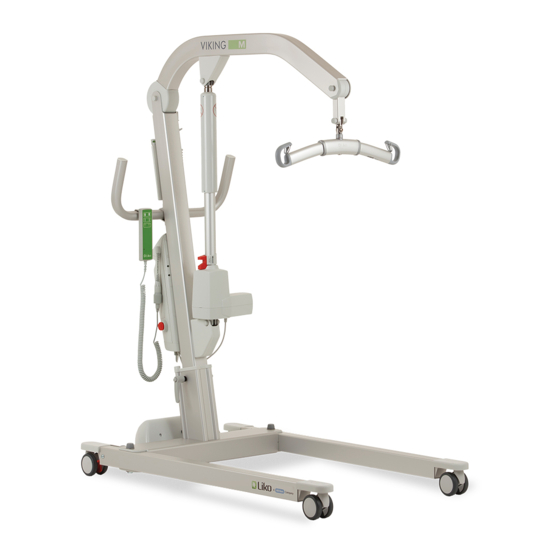

Viking XS and Viking S are two flexible mobile lift models
which are excellent in environments with limited space.
The application areas are the most commonly used lifting
situations, such as transfer between bed and wheel chair,
to and from the toilet and lifting to and from the floor.
Viking XS and Viking S have electric raising and lowering
of the lift arm and mechanical base widening.
Viking S has three height settings on the lift mast in order
to give an optimal lifting interval for different needs.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred to as
the caregiver.
is a warning triangle used for situations which require extra care and attention.
IMPORTANT!
Read the instruction guide for both the patient lift and lifting accessories before use. Lifting and transferring
a person always involves a certain level of risk. It is important to completely understand the contents
of the instruction guides. The equipment should only be used by trained personnel. Please contact
your Liko/Hill-Rom representative in the event of any uncertainties or questions.
Product Description
The middle position is the standard setting; the lowest
is suitable for, for instance, lifting children to and from
the floor. Select the highest position for lifting extra
high, for instance to beds/gurneys with fixed heights.
Individual fitting of the sling and other lifting accessories
is of utmost importance for function and safety when
using the lift.
Viking™ XS / Viking™ S
Viking S
Viking XS
Instruction Guide
English
7EN138104-01
2011-05-24
Applies to the following models:
Prod. No. 2040006
Prod. No. 2040007
