Contains / Innehåller:
x 1
Fits / Passar till: Golvo 7000ES up to Serial No. -7024206 , Golvo 7007ES up to Serial No. -7729722
/ Golvo 7000ES upp till Serienr. -7024206 , Golvo 7007ES upp till Serienr. -7729722
If pre-drilled holes exist, follow the instructions below:
Om förborrade hål finns, gör så här:

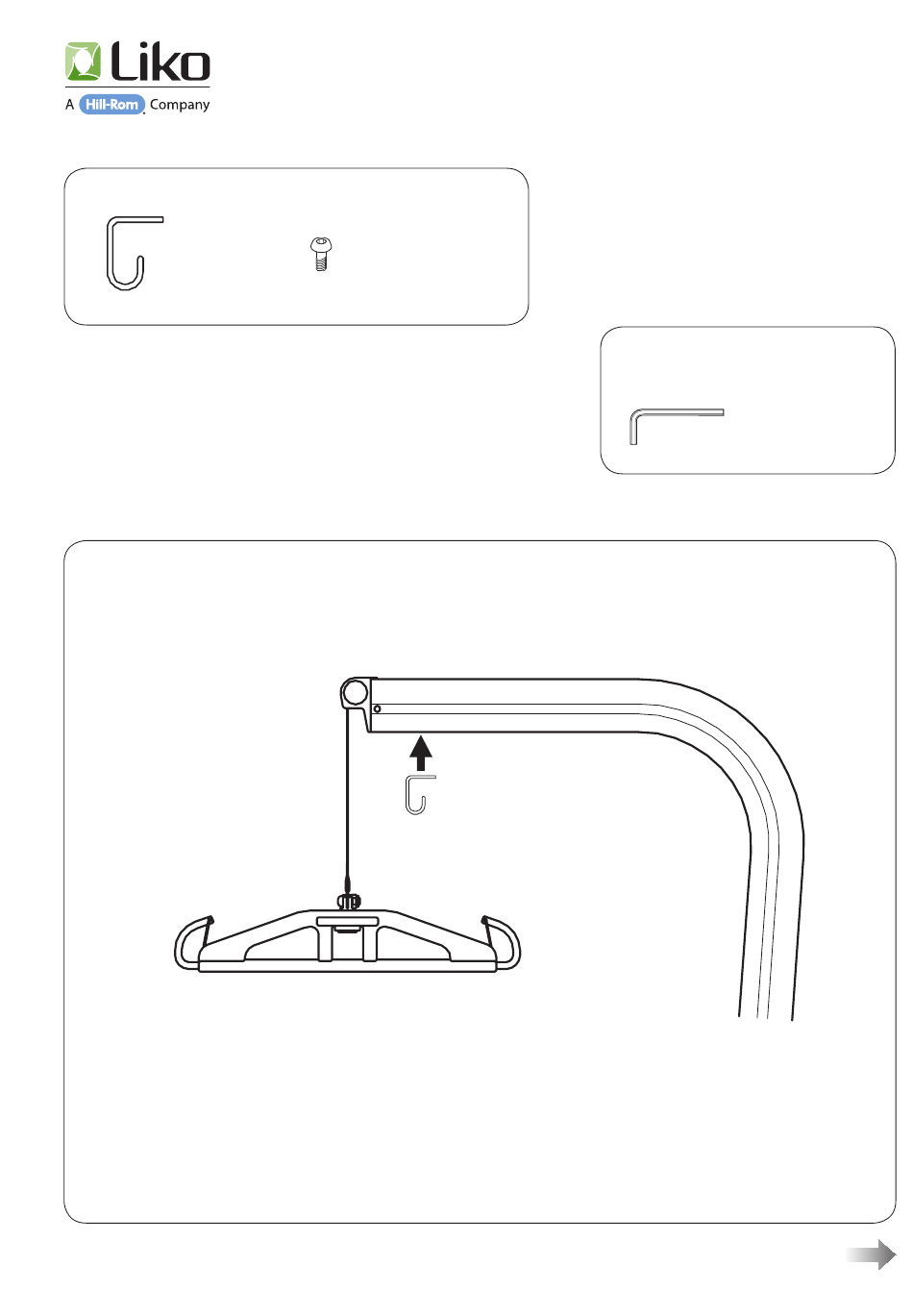

Mount the Parking Hook with two screws M6 (included).
Montera kroken med två skruvar M6 (ingår).
© Copyright Liko AB
x 2
Parking Hook for Golvo
Parkeringskrok för Golvo
Assembly Instruction
Monteringsanvisning
Prod. No. 2006001
7SE140204-02
2011-01-26
Tools required
Nödvändiga verktyg
4 mm
x 1
www.liko.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hill-Rom Liko 2006001
Summary of Contents for Hill-Rom Liko 2006001
- Page 1 Parking Hook for Golvo Parkeringskrok för Golvo Assembly Instruction Monteringsanvisning Contains / Innehåller: Prod. No. 2006001 7SE140204-02 2011-01-26 Tools required Nödvändiga verktyg 4 mm Fits / Passar till: Golvo 7000ES up to Serial No. -7024206 , Golvo 7007ES up to Serial No. -7729722 / Golvo 7000ES upp till Serienr.
- Page 2 If pre-drilled holes are missing, follow the instructions below: Om förborrade hål saknas, gör så här: 1. Loosen the screws (A) on the lift arm. 2. Drill and thread two holes M6 under the lift arm, Pull out the Roll Frame Attachment (B). according to sketch.
