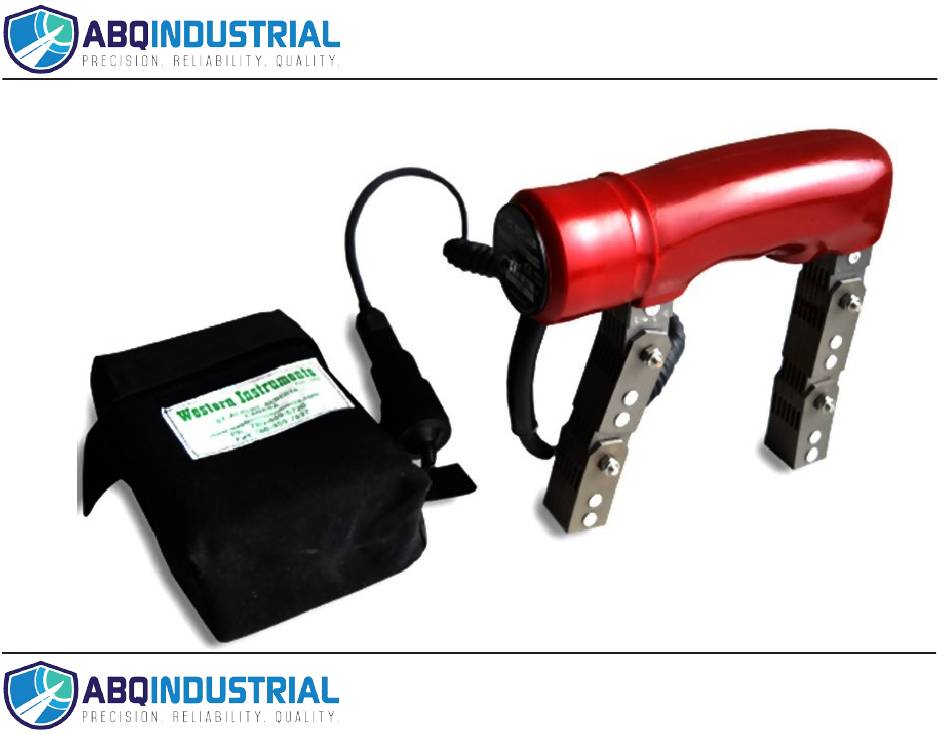

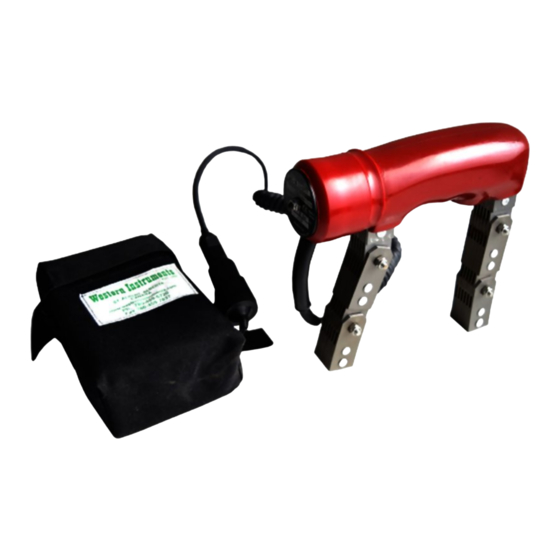

Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke
Instruction Manual
Distributed by: ABQ Industrial LP USA
Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451
Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net
Advertisement
Table of Contents
Related Manuals for ABQ Industrial Western Instruments WC-8
Summary of Contents for ABQ Industrial Western Instruments WC-8
- Page 1 Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke Instruction Manual Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451...
- Page 2 The WC-8 allows the Operator to induce a Pulsing DC inspection field (125Hz) into the ferrous material being tested. The device should be utilized within the parameters set by the operational specifications within this guide. Push Button Switch Junction Tube/End Cap Assembly Battery Pack Amp Hour shown,...
- Page 3 Top Exit Cord Protector/ Ground Lug (Not used) Strain Relief End Cap Power Lines (Name White – Positive Plate and Fastener Black - Negative not shown) Junction Tube Cross Bar Rear Leg Module and Insulating Tape 3. Operational Parameters The Operational Parameters or Duty Cycle for the operation is set to avoid damage to the internal coil or the Output Module, and must be observed.
- Page 4 It must be noted that there is no demagnetization provision on the WC-8, so parts will have some residual field in them after inspection. The work piece ® can be tested with a Magnetic Field Indicator, such as the W-Series W-FI , to measure the residual magnet field.
- Page 5 The Output Module (located inside the Junction Tube) is clearly identified with Positive (+) and Negative (-) terminal receptacles. The White wire on the Power Cord is connected to the Positive (+) terminal and the Black wire is connected to the Negative (-) terminal. Conversely, on the Cigarette Lighter Plug for the Power Cord, has the White Positive (+) wire connected to the Central Contact, and the Black Negative (-) wire connected to the outer or shell contact.
- Page 6 Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net Instruments receives notice of such defects during the warranty period, Western Instruments will either, at it’s option, repair, replace, or condemn products that prove to be defective.
