Haws 3603 Installation, Operation & Maintenance Instructions Manual

Haws 3603 Installation, Operation & Maintenance Instructions Manual

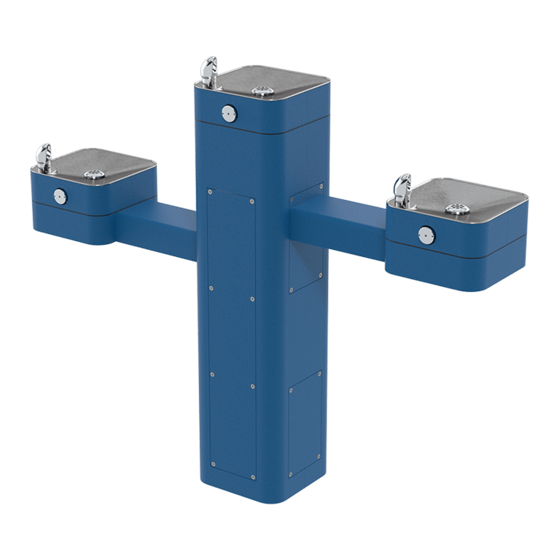

Outdoor triple drinking fountain

Advertisement

Quick Links

1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail:

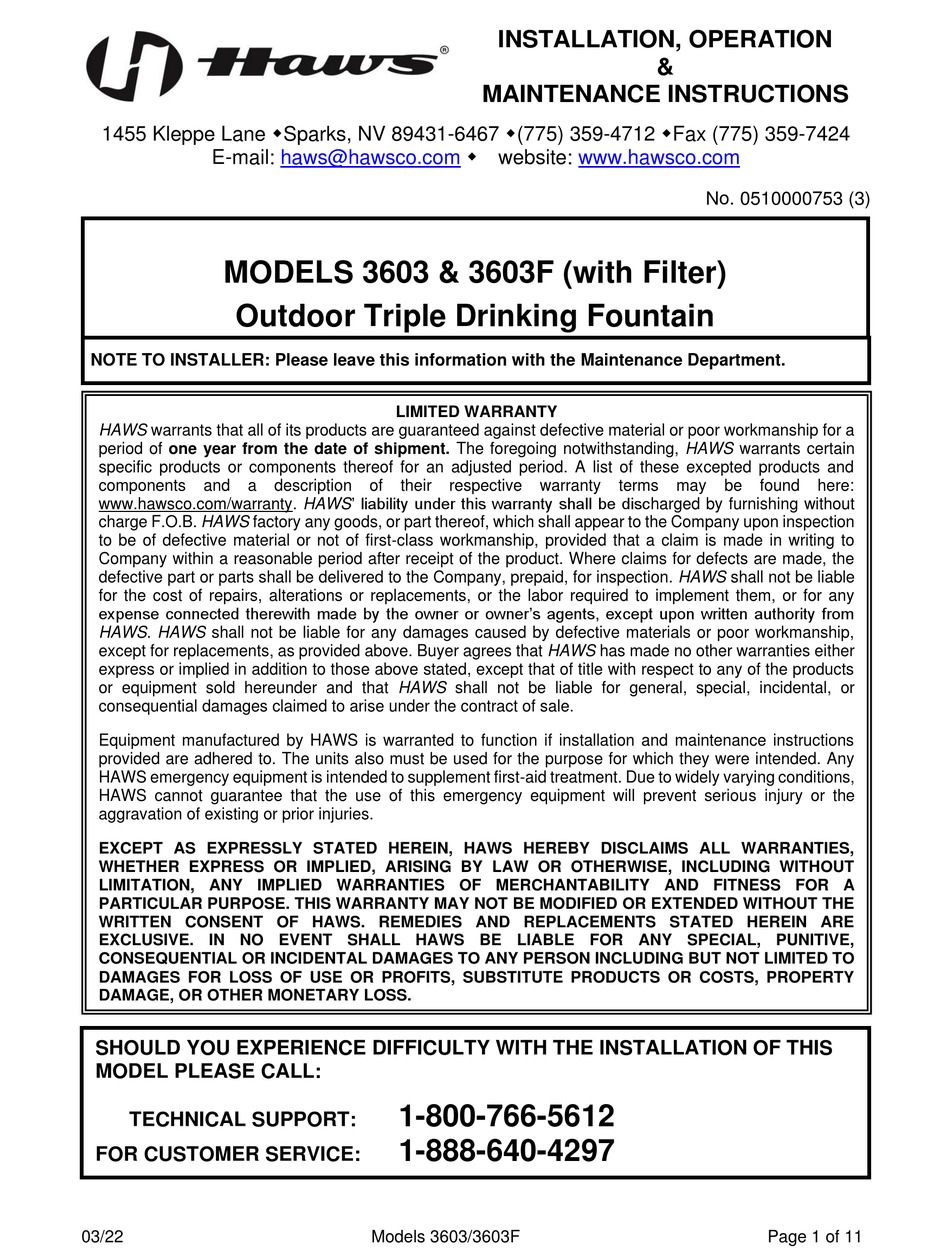

MODELS 3603 & 3603F (with Filter)
Outdoor Triple Drinking Fountain
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
HAWS warrants that all of its products are guaranteed against defective material or poor workmanship for a
period of one year from the date of shipment. The foregoing notwithstanding, HAWS warrants certain
specific products or components thereof for an adjusted period. A list of these excepted products and
components
and
a
www.hawsco.com/warranty. HAWS' liability under this warranty shall be discharged by furnishing without
charge F.O.B. HAWS factory any goods, or part thereof, which shall appear to the Company upon inspection
to be of defective material or not of first-class workmanship, provided that a claim is made in writing to
Company within a reasonable period after receipt of the product. Where claims for defects are made, the
defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS shall not be liable
for the cost of repairs, alterations or replacements, or the labor required to implement them, or for any
expense connected therewith made by the owner or owner's agents, except upon written authority from
HAWS. HAWS shall not be liable for any damages caused by defective materials or poor workmanship,
except for replacements, as provided above. Buyer agrees that HAWS has made no other warranties either
express or implied in addition to those above stated, except that of title with respect to any of the products
or equipment sold hereunder and that HAWS shall not be liable for general, special, incidental, or
consequential damages claimed to arise under the contract of sale.
Equipment manufactured by HAWS is warranted to function if installation and maintenance instructions
provided are adhered to. The units also must be used for the purpose for which they were intended. Any
HAWS emergency equipment is intended to supplement first-aid treatment. Due to widely varying conditions,
HAWS cannot guarantee that the use of this emergency equipment will prevent serious injury or the
aggravation of existing or prior injuries.
EXCEPT AS EXPRESSLY STATED HEREIN, HAWS HEREBY DISCLAIMS ALL WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY MAY NOT BE MODIFIED OR EXTENDED WITHOUT THE
WRITTEN CONSENT OF HAWS. REMEDIES AND REPLACEMENTS STATED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL HAWS BE LIABLE FOR ANY SPECIAL, PUNITIVE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON INCLUDING BUT NOT LIMITED TO
DAMAGES FOR LOSS OF USE OR PROFITS, SUBSTITUTE PRODUCTS OR COSTS, PROPERTY
DAMAGE, OR OTHER MONETARY LOSS.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT:
FOR CUSTOMER SERVICE:
03/22
haws@hawsco.com
LIMITED WARRANTY
description
of
their
respective
1-800-766-5612
1-888-640-4297
Models 3603/3603F
 website:
www.hawsco.com
warranty
terms
No. 0510000753 (3)
may
be
found
here:
Page 1 of 11
