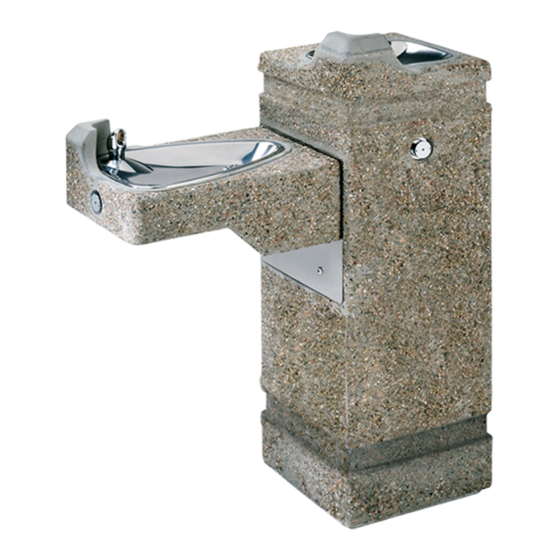

3150
Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.
Drain Clean-Out
Top-down access to the drain allows the fountain to be cleaned
without taking the unit apart, which is ideal for outdoor settings
that are high in drain-clogging sediment like leaves, garbage,
and other debris.
Construction
Heavy-duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with vandal-resistant bottom and access
plates for added peace of mind. Stainless steel basin with a
high-polished finish compliments almost any setting, and it also
resists stains and corrosion.
Barrier-Free
Configurable to Adult or Child barrier-free capabilities combined
with its ease of use allows for a number of installation location
possibilities.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly
which allows for front access stream adjustment as well as
cartridge and strainer access, this fountain offers the ultimate in
ease of maintenance.

OPTIONS

o
Bubbler Head: Model 5725 EnviroGard™ bubbler is a polished
chrome-plated solid brass bubbler head with stainless steel
water activated pop up canopy. (Pat.# 7,025,282)
o
Hose Bib: Model 6275, compression hose bib faucet assembly
with rough chrome-plated finish.
o Filter: Model 6426, 12" x 2", in-line lead removal element that
reduces lead from incoming water supply.
o
Sand Trap: Model 6611, sand trap for installing adjacent to
pedestal drinking fountains to help prevent debris and
contaminants from clogging waste line.
To see all options for this model, visit www.hawsco.com.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009

SPECIFICATIONS

Model 3150 "Hi-Lo" adult or child barrier-free square concrete
pedestal drinking fountain shall include polished stainless steel
basins, adjustable height child ADA capable arm, push-button
operated valves with front-accessible
adjustment, polished chrome-plated brass vandal-resistant bubbler
heads protected by hood extensions, polished chrome-plated
vandal-resistant waste strainers with top-down clean-out access,
Portland Gray exposed aggregate concrete finish with wire
reinforcement, integral mounting plate, vandal-resistant stainless
steel access plates, and 1-1/2" slip waste.

APPLICATIONS

Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong from the forest to the beach. Reinforced concrete
vibra-cast design not only protects from corrosion, its Portland Gray
color makes it recognizable enough to locate without compromising
the outdoor atmosphere. This type of pedestal drinking fountain
may also be placed in a variety of settings such as: parks, schools,
and other recreational outdoor
temperature remains above freezing.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
manufactures drinking fountains, electric water coolers and electric
drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9, California Proposition 65, and
the Federal Safe Drinking Water Act.
cartridge and flow
environments where the
Haws
