1047
Wall Mounted Drinking Fountain
FEATURES & BENEFITS
Drain Clean-Out
Top-down access to the drain allows the fountain to be cleaned
without taking the unit apart, which is ideal for outdoor settings
that are high in drain-clogging sediment like leaves, garbage,
and other debris.
Construction
Heavy duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with a vandal-resistant bottom plate for
added peace of mind. Stainless steel basin with a high-polished
finish compliments almost any setting, and it also resists stains
and corrosion.
Mounting
3/16" steel mounting plate with supplied mounting hardware
provides a solid unit base and allows for easy installation to a
framed wall.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly
which allows for front access stream adjustment as well as
cartridge and strainer access, this fountain offers the ultimate in
ease of maintenance.
Barrier-Free
Designed for Adult or Child ADA access, the spacious fountain
design allows for the trap to be internally mounted which allows
for easy access.
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.

OPTIONS

o
Bubbler Head: Model 5725 EnviroGard™ bubbler is a polished
chrome-plated solid brass bubbler head with stainless steel
water activated pop up canopy. (Pat.# 7,025,282)
o
Filter: Model 6426, 12" x 2", in-line lead removal element that
reduces lead from incoming water supply.
o Support Carrier: Model 6800 universal in-wall mounting support
for use with most fountains.
o
Inlaid Tile: Special 2" x 2" tile may be provided or specified.
Provide sample for special quotation.
To see all options for this model, visit www.hawsco.com.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 3 March, 2009

SPECIFICATIONS

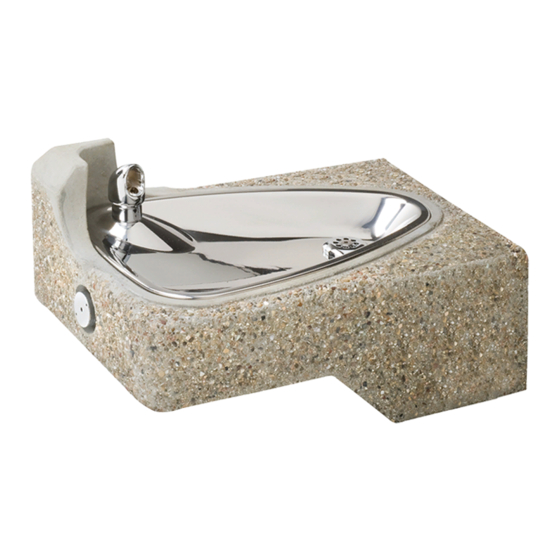

Model 1047 wall mounted adult or child barrier-free drinking
fountain shall include a stainless steel basin contained in a
vandal-resistant, vibra-cast reinforced concrete wall bracket with
exposed aggregate finish, push-button operated valve with
front-accessible cartridge
chrome-plated brass vandal-resistant bubbler head, polished
chrome-plated brass vandal-resistant waste strainer with top-down
access, vandal-resistant bottom plate, and chrome-plated 1-1/2"
IPS trap.

APPLICATIONS

Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong from the forest to the beach. Reinforced concrete
vibracast design not only protects from corrosion, its Portland gray
color makes it recognizable enough to locate without compromising
the outdoor atmosphere. Specifically, this type of wall mounted
drinking fountain may be placed in settings such as: parks, schools,
and other recreational outdoor
temperature remains above freezing.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
manufactures drinking fountains, electric water coolers and electric
drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9, California Proposition 65, and
the Federal Safe Drinking Water Act.
and flow adjustment, polished
environments where the
Haws
