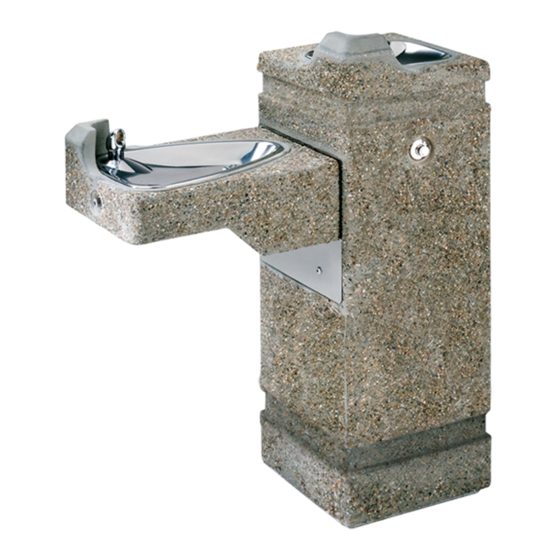

3150FR
Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.
Drain Clean-Out
Top-down access to the drain allows the fountain to be cleaned
without taking the unit apart, which is ideal for outdoor settings
that are high in drain-clogging sediment like leaves, garbage,
and other debris.
All-Weather Capabilities
Fully engineered system
freeze-resistant valve installed below frost line to drain water to
non-freezing depth allowing fountain to function year-round.
Assembly can be lifted to surface and lowered back into casing
for easy maintenance without disturbing the fountain.
Construction
Heavy-duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with vandal-resistant bottom and access
plates for added peace of mind. Stainless steel basin with a
high-polished finish compliments almost any setting, and it also
resists stains and corrosion.
Push Button
Polished chrome-plated push-button requires less than 5 lbs. to
activate.
Barrier-Free
Configurable to Adult or Child barrier-free capabilities combined
with its ease of use allows for a number of installation location
possibilities.
OPTIONS
o
Step: Model 6620, matching square concrete step for square
concrete pedestals, 10" high.
o Valve Box: Model 6625, ground box with lid, used with
freeze-resistant valve models 6518FR and 6518.2FR.
o
Inlaid Tile: Special 2" x 2" tile may be provided or specified.
Provide sample for special quotation.
o
Concrete Colors: Haws offers the full palette of L.M. Scofield's
integral admixtures as illustrated on the L.M. Scofield color chart
and the choice of 4 different finishes. White cement is also
available.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
with the pneumatic operated
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009
SPECIFICATIONS
Model 3150FR "Hi-Lo" adult or child barrier-free freeze-resistant,
square, vibra-cast reinforced concrete pedestal drinking fountain
shall include polished stainless steel basins, hood extensions to
protect the chrome-plated brass bubbler heads, adjustable height
child ADA capable arm, polished chrome-plated vandal-resistant
waste strainers that allow for top down access, and push-button
activated pneumatic valve system. Portland Gray in color with
exposed aggregate finish and wire reinforced, and 1-1/2" slip
waste.
APPLICATIONS
Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong against any element. Reinforced concrete design
not only protects from corrosion, its Portland Gray color makes it
recognizable enough to locate without compromising the outdoor
atmosphere. This type of pedestal drinking fountain may also be
placed in a variety of settings such as: parks, schools, and other
recreational outdoor environments where the temperature may
drop into freezing conditions.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
manufactures drinking fountains, electric water coolers and electric
drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9, California Proposition 65, and
the Federal Safe Drinking Water Act.
