3060

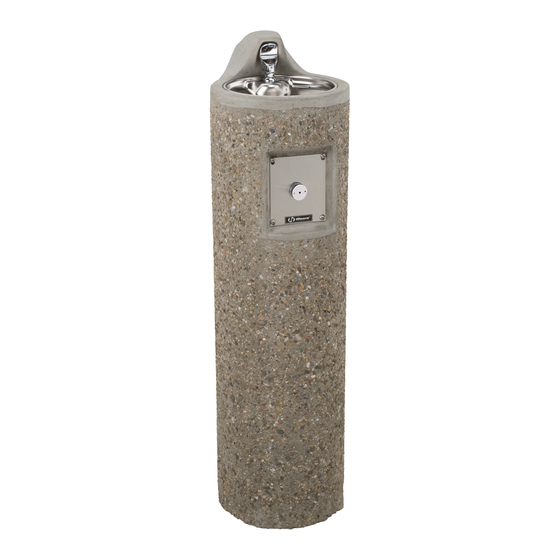

Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Construction
Heavy-duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with a vandal-resistant access plate for
added peace of mind. Stainless steel basin with a high-polished
finish compliments almost any setting, and it also resists stains
and corrosion.
Bubbler Head
Polished chrome-plated brass bubbler head is equipped with a
shielded, anti-squirt orifice that provides a steady sanitary
source of water.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly
which allows for front access stream adjustment as well as
cartridge and strainer access, this fountain offers the ultimate in
ease of maintenance.

OPTIONS

o
Hose Bib: Model 6275, compression hose bib faucet assembly
with rough chrome-plated finish.
o
Filter: Model 6426, 12" x 2", in-line lead removal element that
reduces lead from incoming water supply.
o Sand Trap: Model 6611, sand trap for installing adjacent to
pedestal drinking fountains to help prevent debris and
contaminants from clogging waste line.
o
Concrete Colors: Haws offers the full palette of L.M. Scofield's
integral admixtures as illustrated on the L.M. Scofield color chart
and the choice of 4 different finishes. White cement is also
available.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009

SPECIFICATIONS

Model 3060 circular concrete pedestal drinking fountain shall
include a polished stainless steel basin, push-button operated
valve with front-accessible cartridge and flow adjustment, polished
chrome-plated brass vandal-resistant bubbler head protected by a
hood extension, polished chrome-plated vandal-resistant waste
strainer, Portland Gray exposed aggregate concrete finish with wire
reinforcement, integral mounting feet, vandal-resistant stainless
steel access plate, and 1-1/4" O.D. tailpiece.

APPLICATIONS

Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong from the forest to the beach. Reinforced concrete
vibra-cast design not only protects from corrosion, its Portland Gray
color makes it recognizable enough to locate without compromising
the outdoor atmosphere. This type of pedestal drinking fountain
may also be placed in a variety of settings such as: parks, schools,
and other recreational outdoor
temperature remains above freezing.
Haws manufactures drinking fountains, electric water coolers and
electric drinking fountains to be lead-free by all known definitions
including ANSI/NSF Standard 61, Section 9, California Proposition
65, and the Federal Safe Drinking Water Act.
environments where the
