3177FR

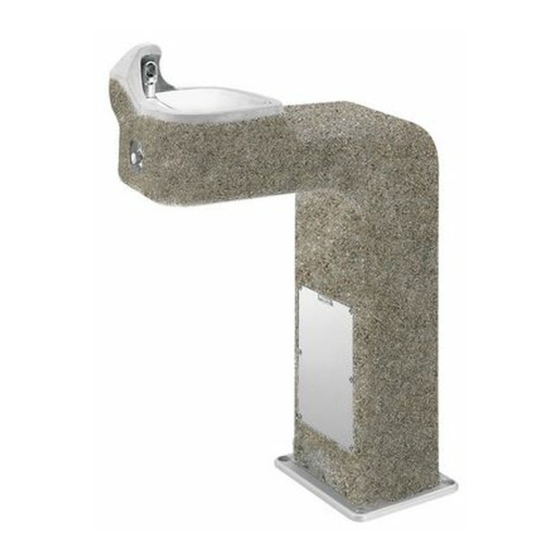

Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.
Drain Clean-Out
Top-down access to the drain allows the fountain to be cleaned
without taking the unit apart, which is ideal for outdoor settings
that are high in drain-clogging sediment like leaves, garbage,
and other debris.
All-Weather Capabilities
Fully engineered system
freeze-resistant valve installed below frost line to drain water to
non-freezing depth allowing fountain to function year-round.
Assembly can be lifted to surface and lowered back into casing
for easy maintenance without disturbing the fountain.
Construction
Heavy-duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with vandal-resistant bottom and access
plates for added peace of mind. Stainless steel basin with a
high-polished finish compliments almost any setting, and it also
resists stains and corrosion.
Push Button
Polished chrome-plated push-button requires less than 5 lbs. to
activate.
OPTIONS
o
Valve Box: Model 6625, ground box with lid, used with
freeze-resistant valve models 6518FR and 6518.2FR.
o Concrete Colors: Haws offers the full palette of L.M. Scofield's
integral admixtures as illustrated on the L.M. Scofield color chart
and the choice of 4 different finishes. White cement is also
available.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
with the pneumatic operated
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009
SPECIFICATIONS
Model 3177FR barrier free, freeze-resistant concrete pedestal
drinking fountain shall include a polished stainless steel basin,
polished chrome-plated brass push-button, polished chrome-plated
brass vandal-resistant bubbler head protected by a hood extension,
polished chrome-plated vandal-resistant waste strainer with
top-down clean-out access, Portland Gray exposed aggregate
concrete finish with wire reinforcement, integral mounting plate,
vandal-resistant stainless steel access plates, and 1-1/2" O.D.
tailpiece.
APPLICATIONS
Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong against any elements.
vibra-cast design not only protects from corrosion, its Portland Gray
color makes it recognizable enough to locate without compromising
the outdoor atmosphere. This type of pedestal drinking fountain
may also be placed in a variety of settings such as: parks, schools,
and other recreational outdoor
temperature may drop into freezing conditions.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
manufactures drinking fountains, electric water coolers and electric
drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9, California Proposition 65, and
the Federal Safe Drinking Water Act.
Reinforced concrete
environments where the
