Haws 3121FR Manual

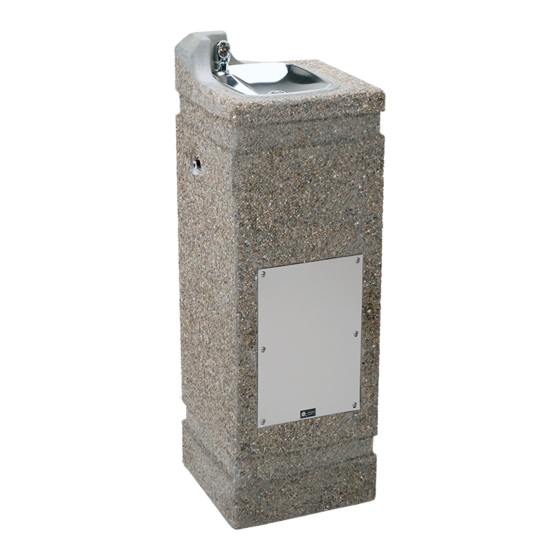

3121FR
Pedestal Mounted Drinking Fountain
FEATURES & BENEFITS
Bubbler Head
Polished chrome-plated brass bubbler head features an integral
basin shank for added strength, and is equipped with a shielded,
anti-squirt orifice that provides a steady sanitary source of water.
Drain Clean-Out
Top-down access to the drain allows the fountain to be cleaned
without taking the unit apart, which is ideal for outdoor settings
that are high in drain-clogging sediment like leaves, garbage,
and other debris.
All-Weather Capabilities
Fully engineered system
freeze-resistant valve installed below frost line to drain water to
non-freezing depth allowing fountain to function year-round.
Assembly can be lifted to surface and lowered back into casing
for easy maintenance without disturbing the fountain.
Construction
Heavy-duty vibra-cast reinforced concrete construction with
exposed aggregate finish provide a perfect addition to outside
environments, along with a vandal-resistant access plate for
added peace of mind. Stainless steel basin with a high-polished
finish compliments almost any setting, and it also resists stains
and corrosion.
Push Button
Polished chrome-plated push-button requires less than 5 lbs. to
activate.
OPTIONS
o
Step: Model 6620, matching square concrete step for square
concrete pedestals, 10" high.
o Valve Box: Model 6625, ground box with lid, used with
freeze-resistant valve models 6518FR and 6518.2FR.
o
Inlaid Tile: Special 2" x 2" tile may be provided or specified.
Provide sample for special quotation.
o
Concrete Colors: Haws offers the full palette of L.M. Scofield's
integral admixtures as illustrated on the L.M. Scofield color chart
and the choice of 4 different finishes. White cement is also
available.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
with the pneumatic operated
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 4 March, 2009
SPECIFICATIONS
Model 3121FR freeze-resistant square concrete pedestal drinking
fountain shall include a polished stainless steel basin, polished
chrome-plated brass push-button, polished chrome-plated brass
vandal-resistant bubbler head protected by a hood extension,
polished chrome-plated brass vandal-resistant waste strainer with
top-down clean-out access, Portland Gray exposed aggregate
concrete finish with wire reinforcement, integral mounting feet,
vandal-resistant stainless steel access plate, and 1-1/4" O.D.
tailpiece.
APPLICATIONS
Perfect for either public or private settings, our concrete vibra-cast
series is a great fit in "open-air" environments. Suitable in areas
where weather conditions may be cause for concern, this series
stands strong in harsh environments.
vibra-cast design not only protects from corrosion, its Portland Gray
color makes it recognizable enough to locate without compromising
the outdoor atmosphere. This type of pedestal drinking fountain
may also be placed in a variety of settings such as: parks, schools,
and other recreational outdoor
temperature may drop into freezing conditions.
Haws manufactures drinking fountains, electric water coolers and
electric drinking fountains to be lead-free by all known definitions
including ANSI/NSF Standard 61, Section 9, California Proposition
65, and the Federal Safe Drinking Water Act.
Reinforced concrete
environments where the
