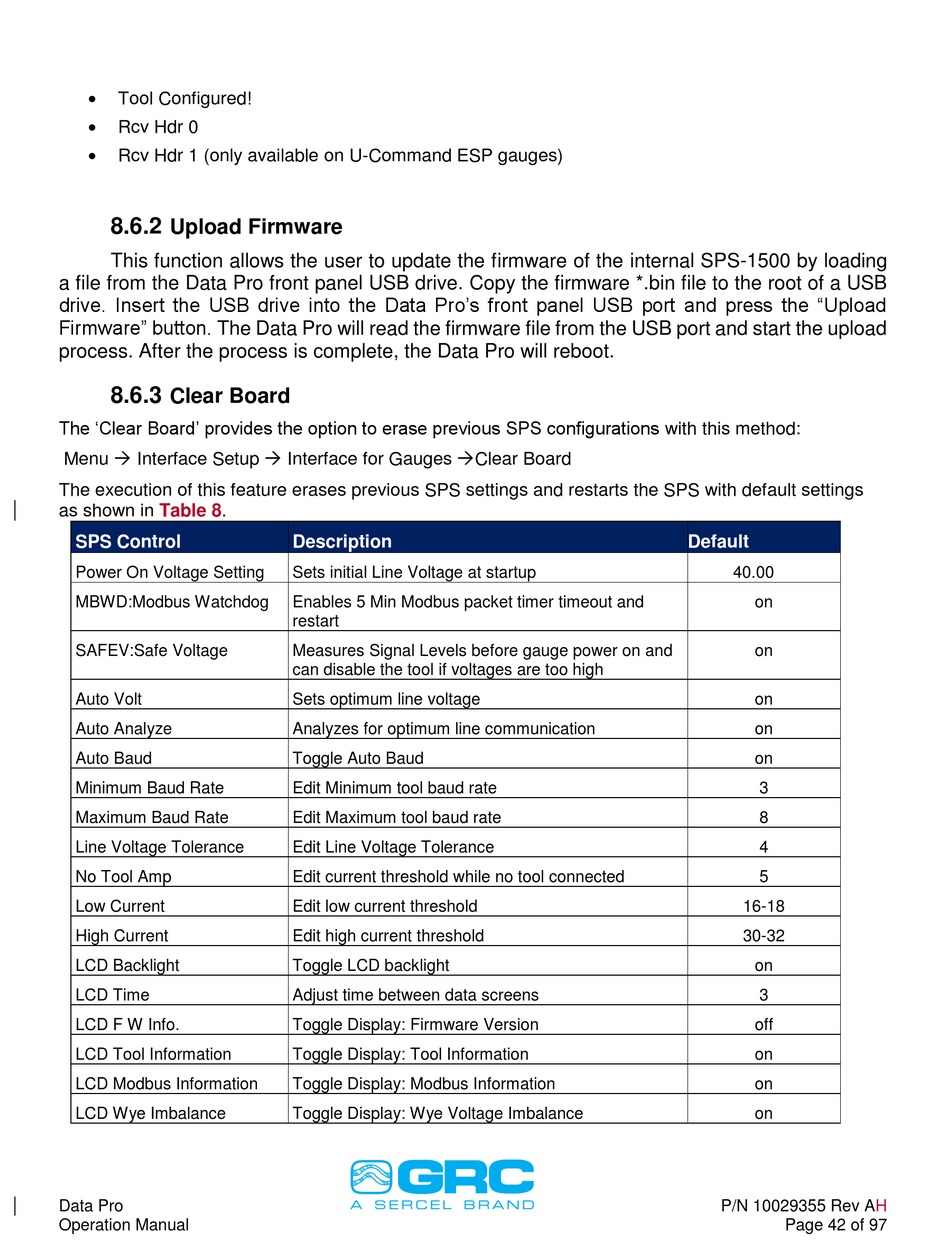

8.6.2

Upload Firmware

This function allows the user to update the firmware of the internal SPS-1500 by loading
a file from the Data Pro front panel USB drive. Copy the firmware *.bin file to the root of a USB
drive. Insert the USB drive into the Data Pro's front panel USB port and press the "Upload
Firmware" button. The Data Pro will read the firmware file from the USB port and start the upload
process. After the process is complete, the Data Pro will reboot.
8.6.3

Clear Board

The 'Clear Board' provides the option to erase previous SPS configurations with this method:
Menu  Interface Setup  Interface for Gauges Clear Board
The execution of this feature erases previous SPS settings and restarts the SPS with default settings
as shown in Table 8.
SPS Control
Power On Voltage Setting
MBWD:Modbus Watchdog
SAFEV:Safe Voltage
Auto Volt
Auto Analyze
Auto Baud
Minimum Baud Rate
Maximum Baud Rate
Line Voltage Tolerance
No Tool Amp
Low Current
High Current
LCD Backlight
LCD Time
LCD F W Info.
LCD Tool Information
LCD Modbus Information
LCD Wye Imbalance
Data Pro
Operation Manual
Description
Sets initial Line Voltage at startup
Enables 5 Min Modbus packet timer timeout and
restart
Measures Signal Levels before gauge power on and
can disable the tool if voltages are too high
Sets optimum line voltage
Analyzes for optimum line communication
Toggle Auto Baud
Edit Minimum tool baud rate
Edit Maximum tool baud rate
Edit Line Voltage Tolerance
Edit current threshold while no tool connected
Edit low current threshold
Edit high current threshold
Toggle LCD backlight
Adjust time between data screens
Toggle Display: Firmware Version
Toggle Display: Tool Information
Toggle Display: Modbus Information
Toggle Display: Wye Voltage Imbalance
Default
40.00
on
on
on
on
on
3
8
4
5
16-18
30-32
on
3
off
on
on
on
