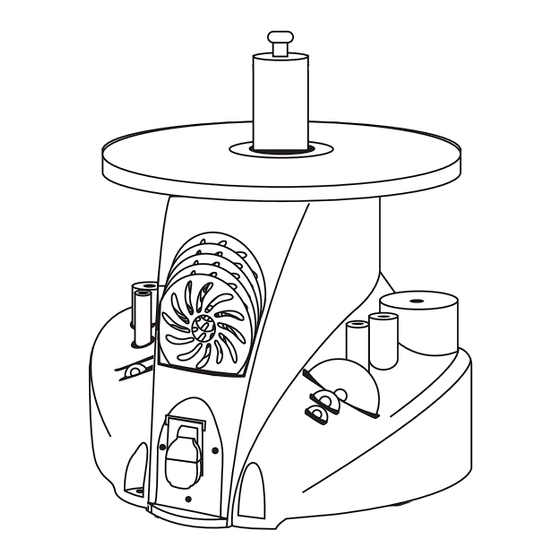

- Page 1 Model No. 240-2982 Owner’s Manual OSCILLATING SPINDLE SANDER QUESTION... 1•847•780•6120 You will need this manual for safety instructions, operating procedures, and warranty. Put it and the original sales invoice in a safe, dry place for future reference. 17-0711...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT SPECIFICATIONS SECTION PAGE SAFETY RULES Spindle diameter ......1/2" Drum diameters. -
Page 3: Safety Rules
SAFETY RULES • Ensure your work shop is childproof. Use padlocks, WARNING master switches or remove switch keys to prevent any unintentional use of power tools. For your own safety, read and understand all warnings and operating instructions before using any tool TOOL MAINTENANCE or equipment. - Page 4 ASSEMBLY UNPACKING Refer to Figure 1 Check for shipping damage. If damage has occurred, a claim must be filed with carrier. Check to ensure all parts are present. Immediately report missing parts to dealer. The sander comes assembled as one unit. Additional parts should be located and accounted for before assembling.
-
Page 5: Assembly
ASSEMBLY Refer to Figures 2 - 4 Figure 3- Attaching 2” Drum with Sleeve CAUTION Knob Do not attempt assembly if parts are missing. Use this manual to order replacement parts. 2” Drum Washer WARNING Do not operate machine until completely assembled. Do not operate machine until you have completely read and understood this manual. -
Page 6: Power Source
POWER SOURCE Figure 5 - 3-Prong Receptacle WARNING Ground Outlet Box Do not connect to the power source until the machine is completely assembled. 3-Prong Plug The machine is wired for 120 volts, 60 HZ alternating current. Before connecting the machine to the power source, make sure the switch is in the "OFF"... -
Page 7: Extension Cords
EXTENSION CORDS ELECTRICAL CONNECTIONS Use proper extension cords. Make sure the extension WARNING cord is in good condition. Use only 3-wire extension cords have 3-prong grounding type plugs and 3-pole receptacles All electrical connections must be performed by a qualified which accept the tool plug. -
Page 8: Operation
OPERATION • Avoid kickback of the workpiece by sanding in Refer to Figures 8 and 9 accordance with the directional arrows. DESCRIPTION • Never push a sharp object rapidly against sleeve. Abrasive backing may be damaged. The Oscillating Spindle Sander makes sanding irregular shapes and curves in wood easy and convenient. - Page 9 BASIC SANDING OPERATION DUST COLLECTION Refer to Figure 9 NOTE: This tool is approved for sanding wood and wood products only. A dust collection port has been provided; it is located beneath the work table on the rear side of the sander. •...
- Page 10 OSCILLATING SPINDLE SANDER PARTS ILLUSTRATION...
- Page 11 OSCILLATING SPINDLE SANDER PARTS LIST Key No. Part No. Description Specification Key No. Part No. Description Specification OS1000001 Knob OS1400018 Motor Stud OS1000002 Drum Washer 3/4",1",1-1/2",2",3" OS1400019 Flange Straight Gear OS1000003 Abrasive Sleeve 1/2",3/4",1",1-1/2",2",3" OS1400020 Circlip for Shaft Φ12 OS1000004 Rubber Drum 3/4",1",1-1/2",2",3"...
- Page 12 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) SOLUTIONS Motor will not start 1. Low voltage 1. Check power supply for proper voltage 2. Short circuit in line cord or plug 2. Inspect line cord and plug for faulty insulation or shorted connection 3. Inspect connection on motor. 3.
- Page 13 MENARDS ® retail store. At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with ®...
- Page 16 Menard, Inc. Eau Claire, WI 54703...
