- Page 1 English Instructions S O L U T I O N S I N R A D I O T H E R A P Y MacroMedics DSPS-Prominent ® ® MacroMedics BV Oostbaan 670 2841ML Moordrecht The Netherlands +31(0)182 389 777 info@macromedics.com...
- Page 2 Manual DSPS-Prominent Instructions for use ® S O L U T I O N S I N R A D I O T H E R A P Y [ This page is intentionally left blank ] MacroMedics ® 06042023V4IFU113000...
-
Page 3: Table Of Contents
S O L U T I O N S I N R A D I O T H E R A P Y Table of Contents 1. Warnings 2. MRI Safety Information 3. Intended Use/Indications for Use 4. Baseplate and cradle set-up 5. Mask set-up 6. Cleaning, Storage and Disposal 7. Warranty 8. Notices 9. Glossary of Symbols 06042023V4IFU113000 MacroMedics ®... -
Page 4: Warnings
3. Intended Use/Indications for Use Positioning and immobilization of the patient during radiotherapy. This includes positioning and immobilization of the patient during image acquisition to support treatment, such as in Magnetic Resonance (MR) and Computed Tomography (CT) Imaging Systems. MacroMedics ® 06042023V4IFU113000... -
Page 5: Baseplate And Cradle Set-Up
fi t in the MR Head coil. that the formed mask will be able to fi t in the MR Head coil. • Screw the Mouldroom Tool to the DSPS-Prominent frame. Screw the Mouldroom Tool to the DSPS-Prominent frame. 06042023V4IFU113000 MacroMedics ® MacroMedics ®... - Page 6 When using a Waterbath (for the head, neck & shoulder mask, we recommend using the MacroMedics MacroBath 4 or a bath with min. internal dimensions, in mm: 665w x 575d x 80h) to heat the mask, set the water temperature between 68°C and 70°C (154.4°F and 158°F). Leave the mask in the water for approximately 15 to 20 seconds until it becomes suffi...
- Page 7 When using a Waterbath (for the head, neck & shoulder mask, we recommend using the MacroMedics MacroBath 4 or a bath with min. internal dimensions, in mm: 665w x 575d x 80h) to heat the mask, set the water temperature between 68°C and 70°C (154.4°F and 158°F). Leave the mask in the water for approximately 1 to 2 minutes until it becomes suffi...

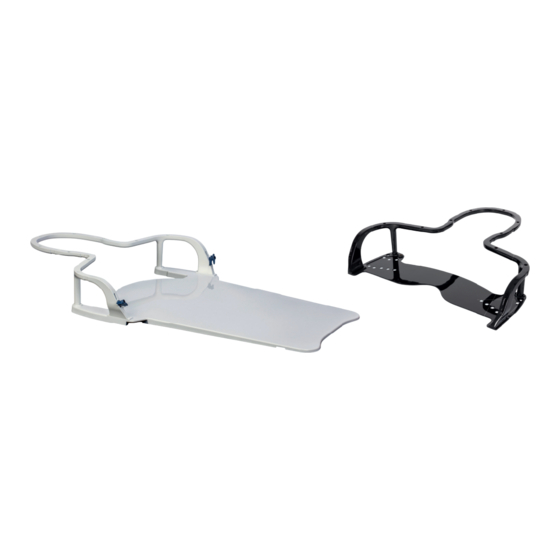

- Page 8 Remove the Mouldroom Tool and label the mask(s) with the patient’s name/ identifi er. GF DSPS-Prominent Baseplate with moulded Head, neck & shoulder Facial and Occipital Masks CF DSPS-Prominent Cradle with moulded Head Only Facial and Occipital Masks MacroMedics ® 06042023V4IFU113000...
- Page 9 fi nger to unlock it and then pull with both fi ngers in the horizontal direction, into unlocked position. Remove the facial mask. The patient can now get up. Push the sliding lock pawls back into locked position for storage of the mask. 06042023V4IFU113000 MacroMedics ®...
-
Page 10: Cleaning, Storage And Disposal
Defects, malfunctions or failures caused by nature, misuse, abuse and unauthorised alteration or repair are not warranted. This warranty is limited to the repair and/or replacement at the sole discretion of MacroMedics. 8. Notices Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user or patient is established. -
Page 11: Glossary Of Symbols
An item which poses unacceptable risks to the patient, MR Unsafe medical staff or other persons within the MR environment. Single patient multiple use To indicate that the emdical device may be used multiple times (multiple procedures) on a single patient. 06042023V4IFU113000 MacroMedics ®... - Page 12 S O L U T I O N S I N R A D I O T H E R A P Y MacroMedics BV Oostbaan 670 2841ML Moordrecht The Netherlands +31(0)182 38 97 77 info@macromedics.com www.macromedics.com (Visit www.macromedics.com for a digital copy of this manual)
