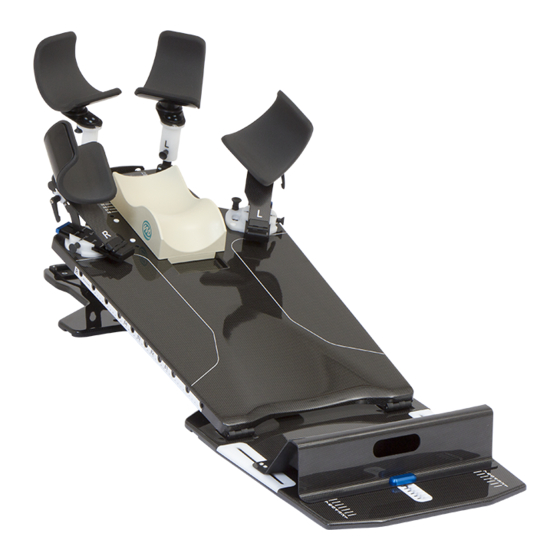

- Page 1 MANUAL 122500 Instructions for use English Instructions MacroMedics BreastBoards & ThoraxSupports ® MacroMedics BV Oostbaan 670 2841ML Moordrecht The Netherlands +31(0)182-389777 info@macromedics.com www.macromedics.com...
- Page 2 Manual BreastBoards & ThoraxSupports Instructions for use [ This page is intentionally left blank ] MacroMedics ® 03062022V14IFU122500...
-
Page 3: Table Of Contents
Manual BreastBoards & ThoraxSupports Instructions for use Table of Contents 1. Warnings 2. MRI Safety Information 3. Intended Use and Indications for Use 4. Installation Instructions 5. Cleaning, Storage and Disposal 6. Warranty 7. Notices 8. Glossary of Symbols 03062022V14IFU122500... -
Page 4: Warnings
Manual BreastBoards & ThoraxSupports Instructions for use 1. Warnings • Inspect the device thoroughly before use. Do not use the device if damaged or incomplete. • Check individual components on MR-Safety when used together in a patient positioning system. •... -
Page 5: Intended Use And Indications For Use
Manual BreastBoards & ThoraxSupports Instructions for use MR CONDITIONAL The following devices are MR Conditional: • 122150 ThoraxSupport™, MRC • 122310 Upper AS TS/MBLX, MRC, set/2 • 122340 Cranial AS for BBLX/TS MRC, set/2 • 122660 ThoraxSupport™, short MRC •... -
Page 6: Installation Instructions
Manual BreastBoards & ThoraxSupports Instructions for use 4. Installation Instructions Instructions for placing the BreastBoard SX Module, BreastBoard LX Module & BreastBoard EX Module on an OmniBoard or FleXBoard: FleXBoard OmniBoard OmniBoard BreastBoard Module BreastBoard Module BreastBoard Module Lift the BreastBoard Module and position it vertically above the predestined board. Align the hinge plates at the caudal end of the BreastBoard Module with the slots in the predestined board and slide the BreastBoard in the slots. - Page 7 Manual BreastBoards & ThoraxSupports Instructions for use Instructions for placing the FleXBoard with BreastBoard Module SX, LX & EX, the BreastBoard SX & LX and the ThoraxSupport on a CouchTop: Place the correct Couchstrips on the Couch in indexed positions. Fasten the CouchStrip and make sure that no movement is possible between the CouchStrip and the couch.
- Page 8 Instructions for use III. Adjusting the components of the BreastBoards & ThoraxSupports Adjust the components of the BreastBoards and ThoraxSupports for accurate patient positioning and record the positions in the corresponding Set-Up sheet. The Armsupports The armsupports can be adjusted in one direction.
- Page 9 Manual BreastBoards & ThoraxSupports Instructions for use The BottomStop Lift the bottomstop on the grip aperture, slide into the desired position and lower into the middle strip. Carbon Fiber L-Profi les Place the carbon fi ber profi les for the...
- Page 10 Manual BreastBoards & ThoraxSupports Instructions for use Slide the EagleBoard 2 towards the caudal side and lock it by turning the lock knobs counterclockwise. Turn the lock knobs back in clockwise direction to loosen. For adjustment of the EagleBoard 2 in longitudinal direction, loosen both of the grip knobs at the dorsal side of the BreastBoard EX.
- Page 11 Manual BreastBoards & ThoraxSupports Instructions for use Turn the grip knobs clockwise to lock the EagleBoard 2 on the desired indexed position. Align the M-Grip with the rails on the EagleBoard 2. Push the white lock knobs on the M-Grip and slide it onto the rails.
- Page 12 Manual BreastBoards & ThoraxSupports Instructions for use Place the M-Grip on the desired indexed position and release the lock knobs to fi x the M-Grip to the rails of the OmniBoard EX. Place the HeadSupport in the HeadSupport adaptor. MacroMedics ®...
-
Page 13: Cleaning, Storage And Disposal
Defects, malfunctions or failures caused by nature, misuse, abuse and unauthorised alteration or repair are not warranted. This warranty is limited to the repair and/or replacement at the sole discretion of MacroMedics. 7. Notices Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user or patient is established. -
Page 14: Glossary Of Symbols
Manual BreastBoards & ThoraxSupports Instructions for use 8. Glossary of Symbols Symbol Symbol Name Description of Symbol EC declaration of conformity by manufacturer. European Conformity Indicates the medical device manufacturer. Manufacturer Indicates the manufacturer’s catalogue number so that the Catalogue Number medical device can be identifi... - Page 15 Manual BreastBoards & ThoraxSupports Instructions for use [ This page is intentionally left blank ] 03062022V14IFU122500 MacroMedics ®...
