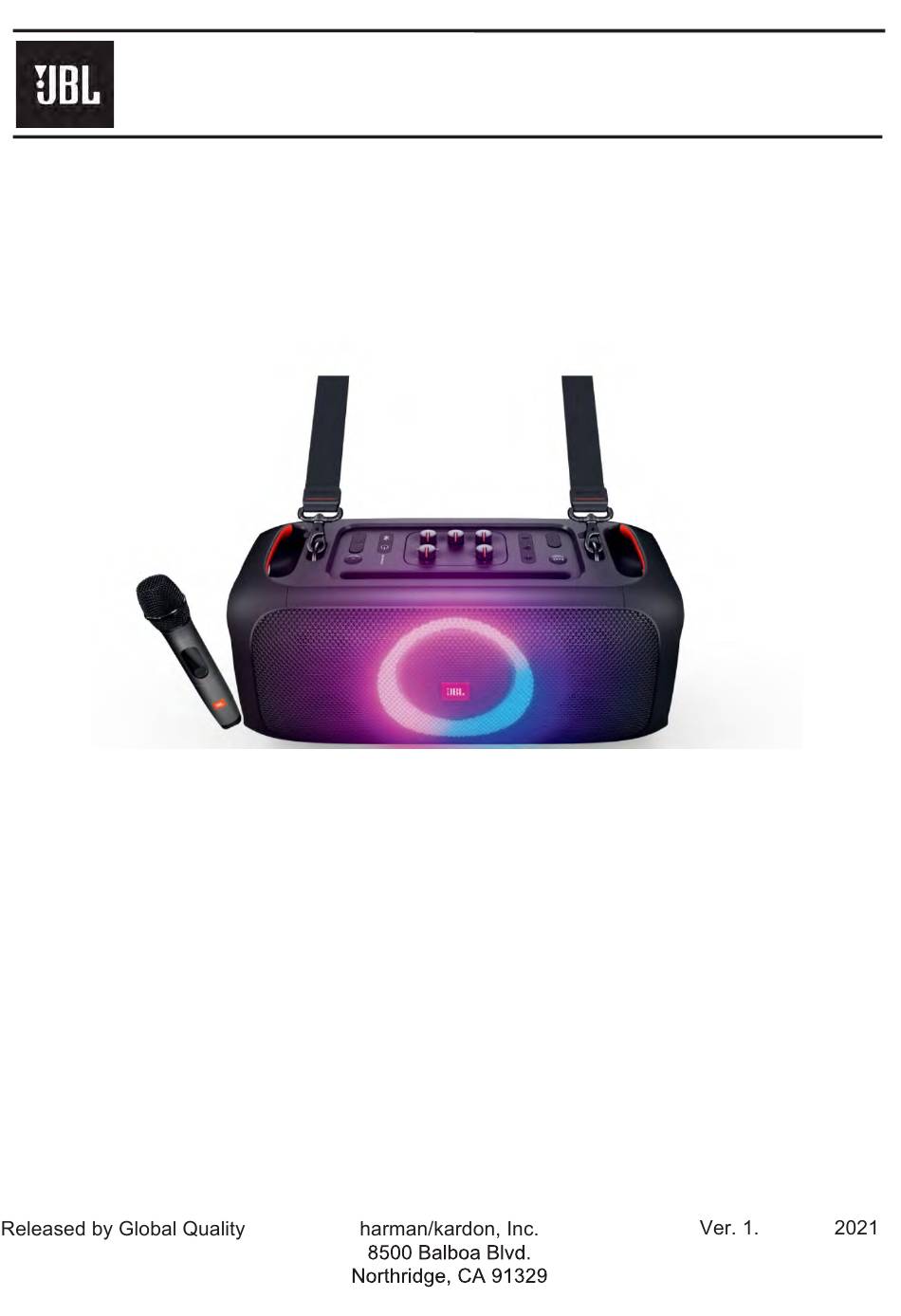

Harman JBL PartyBox On-The-Go Service Manual

Hide thumbs Also See for JBL PartyBox On-The-Go:
Table of Contents

Advertisement

Quick Links

B
JBLPARTYBOXOTGAS, JBLPARTYBOXOTGAS2, JBLPARTYBOXOTGAS3, JBLPARTYBOXGOBBR,
SKU:
JBLPARTYBOXGOBBR2, JBLPARTYBOXGOBCN, JBLPARTYBOXOTGEU, JBLPARTYBOXOTGRU,
JBLPARTYBOXOTGUK,JBLPARTYBOXGOBAM
On-The-Go
Safety Instruction, Warning & Notes
Set Block Diagram
Schematic & Layout Diagrams
Service Manual
(S/N starting from TL)
CONTENTS
& Wiring Diagram
2
3
6
7
9
16
19
38
39
40
42
1 Aug.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL PartyBox On-The-Go and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman JBL PartyBox On-The-Go

Summary of Contents for Harman JBL PartyBox On-The-Go

  • Page 1 Service Manual On-The-Go (S/N starting from TL) JBLPARTYBOXOTGAS, JBLPARTYBOXOTGAS2, JBLPARTYBOXOTGAS3, JBLPARTYBOXGOBBR, SKU: JBLPARTYBOXGOBBR2, JBLPARTYBOXGOBCN, JBLPARTYBOXOTGEU, JBLPARTYBOXOTGRU, JBLPARTYBOXOTGUK,JBLPARTYBOXGOBAM CONTENTS Technical Specifications Safety Instruction, Warning & Notes Software Upgrade Procedure Trouble shooting Dismantling Instruction Set Block Diagram & Wiring Diagram Schematic & Layout Diagrams Set Mechanical Exploded View Packaging Exploded View Spare Parts List...
  • Page 2 TECHNICAL SPECIFICATIONS Product name: PARTYBOX ON-THE-GO  AC power input: 100 - 240 V ~ 50/60 Hz  Built-in Battery: 18 Wh  Power consumption: 60 W  Total output power: 100 W RMS  Standby power consumption: < 2 W with BT Connection; < 0.5 W without BT ...
  • Page 3 Contact your local waste management officials for information NOTE: Changes or modifications not expressly approved regarding the environmentally sound collection, recycling and by Harman could void the user’s authority to operate the disposal of used batteries. equipment. To remove the batteries from your equipment or remote...
  • Page 4 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1.
  • Page 5 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).
  • Page 6 SOFTWARE UPGRADE PROCEDURE USB update method 1. Copy software to an empty USB(named as PBGT_FW_xxxxxxxx_Verxxxxxx.bin,such as PBGT_ALL_202101290_Ver09.bin or PBGT_ALL_202102220_Ver10.bin) 2. Set power on 3. Press volume+ & Bluetooth key over 10 sec at same time, Set will enter DFU mode, and LED will show RED 4.
  • Page 7 TROUBLE SHOOTING Oscilloscope Check DC Check I C& I check PWM Check L+,L- Setting Values voltage signal signal signal Voltage/DIV Depend voltage 1V/div 10V/div 10V/div TIME/DIV 500ms/div 20us/div 1us/div 500us/div 1. If press the power button, the device does not work, Please check the power flow as blow: Do not work Insert the AC power...
  • Page 8 2 .No audio output NO audio output Power supply have No 8~16V 8~19V of AMP? Change the main board （U16,U17 Pin3， 4,21,22） No 19V Change the power board Are the input signals of Exchange AMP the NO AMP normal? （U16,U17 Pin12~17） Replace the Speakers...
  • Page 17 ' 3 6   <      < - 6 / 5 ( U U Y Z , O R Z K X  <     '  ; 9 ( E  < ;...
  • Page 34 MAIN&MIC&AUDIO PCB LAYOUT (TOP)
  • Page 35 MAIN&MIC&AUDIO PCB LAYOUT (BOTTOM)
  • Page 36 RING&GUITAR&POWER PCB LAYOUT (TOP)
  • Page 37 RING&GUITAR&POWER PCB LAYOUT (BOTTOM)
  • Page 38 EXPLODED VIEW Part Number SAP Description Usage UoM Pos. No. 08-HPBOTG-FC0S FRONT GRILLE ASSY EA 1 2 5 08-HMPGP0-XX0B1S DUCT ASSY EA 3 4 08-HPBOTG-LD0S LAMP RING EA 6 08-025020-06006 2INCH SPEAKER EA 7 08-055040-03002 5.25INCH SPEAKER EA 8 59-435410-000B1 RUBBER FEET EA 9 08-HMPGB1-XX0B1S BOTTOM COVER...
  • Page 40 JBL PARTYBOX ON THE GO (TL) ‐ SPARE PARTS LIST V1.1 Pos. No. Part Number SAP Description Usage 1,2,5 08-HPBOTG-FC0S FRONT GRILLE ASSY PBOTG TL 08-HMPGP0-XX0B1S DUCT ASSY PBOTG TL 08-HPBOTG-LD0S LAMP RING PBOTG TL 08-025020-06006 2INCH SPEAKER PBOTG TL 08-055040-03002 5.25INCH SPEAKER PBOTG TL 59-435410-000B1 RUBBER FEET PBOTG TL 08-HMPGB1-XX0B1S BOTTOM COVER PBOTG TL 54-438010-000B1...
  • Page 41 51-D70150-0AR08-M POWER CORD 1.5M UK PBOTG TL 51-D71500-0CR08-M POWER CORD 1.5M EP/RU PBOTG TL 51-G70150-0GR08-M POWER CORD 1.5M CN PBOTG TL 51-D71500-01R08-M POWER CORD 1.5M BR PBOTG TL 51-B8B150-0LR08-M POWER CORD 1.5M AM/ARGENTINA PBOTG TL 51-D71500-0KR08-M POWER CORD 1.5M KO PBOTG TL 51-D71500-0DR08-M POWER CORD 1.5M THA PBOTG TL 51-D71500-0PR08-M...
  • Page 42 REVISION LIST Version 1.0 * Initial release for JBL ON-THE-GO. 2021-4 Version 1.1 * Correct Microphones and remove India's version. 2021-8...
