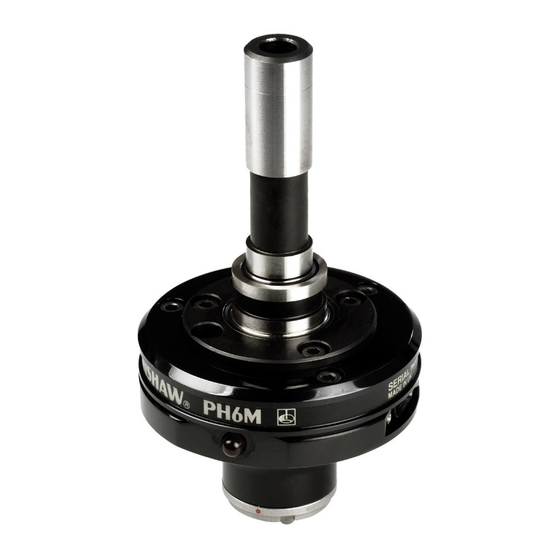

Renishaw PH6M User Manual

Probe head
Hide thumbs Also See for PH6M:
Table of Contents

Advertisement

Quick Links

Download this manual
User's guide
H-1000-5001-03-A
PH6M probe head

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH6M and is the answer not in the manual?

Questions and answers

Related Manuals for Renishaw PH6M

Summary of Contents for Renishaw PH6M

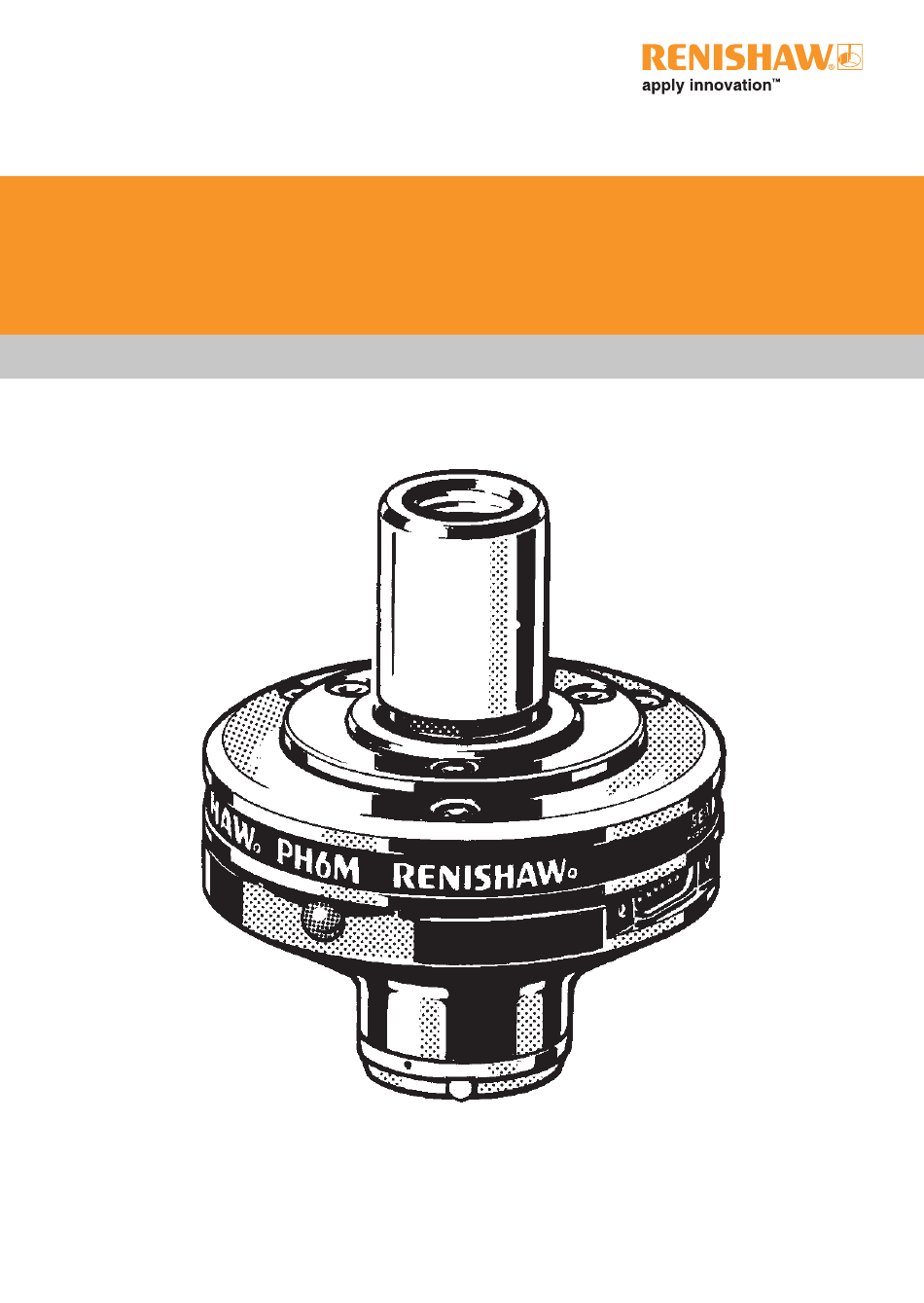

  • Page 1 User’s guide H-1000-5001-03-A PH6M probe head...
  • Page 2 Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation is a trademark of Renishaw plc.
  • Page 3 PH6M user’s guide...
  • Page 4 Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to equipment Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Warranty Renishaw plc warrants its equipment provided that it is installed exactly as defi...

  • Page 5: Table Of Contents

    Contents Contents Introduction ...................4 Installation and connection ............5 Dimensions ...................6 Operation ..................7 System connection ................9 Interconnecting cables ..............10 Specifi cation ................11 Probe compatibility ..............12 Accessories and parts list ............14 Accessories ................14 Parts list ................14...

  • Page 6: Introduction

    Introduction Introduction The PH6M is a shank mounted, fi xed orientation, probe head incorporating the Renishaw autojoint probe connector. The PH6M is compatible with the AM1 adjustment module to allow precise autojoint alignment with machine axes, enabling trouble-free autochange operation.

  • Page 7: Installation And Connection

    Installation and connection Installation and connection The PH6M is fi tted with an integral 15-pin micro ‘D’ socket. If required, this socket can be adapted by using a suitable cable to which a 5-pin DIN socket has been fi tted.

  • Page 8: Dimensions

    Dimensions Dimensions 40 mm (1.57 in) 60 mm (2.36 in) Figure 1 - PH6M dimensions...

  • Page 9: Operation

    S10 joint key for manual probe or extension bar changing applications (see fi gure 2 on page 8). Automatic probe or extension bar changing is possible using the Renishaw ACR1 or ACR3 autochange systems. The status of the probe is indicated by the probe status LED. This is normally lit when the probe is ready for use and extinguishes as the probe triggers.
  • Page 10 Operation Allen key 2.5 AF Shank M3 x 8 socket head screws Multiwire (3 off) probe cable Probe status LED Autojoint adaptor S10 joint key Figure 2 - PH6M...

  • Page 11: System Connection

    System connection System connection PI 7-2 interface PI 200 interface Abcd PLM 38/42 PL47 + PL26 PLM 38/42 TP7M PAA1 SP25M Probe: TP20 TP200 Figure 3 - System connection...

  • Page 12: Interconnecting Cables

    Interconnecting cables Interconnecting cables There is a choice of standard cables to connect from PH6M to probe interfaces PI 7-2, PI 200, OPI6, the AC2 card for SP600M or the ACR3 card for SP25M. Connectors shown in brackets are supplied in kit form. The cable is supplied with the micro ‘D’...

  • Page 13: Specifi Cation

    Specifi cation Specifi cation Repeatability 1 µm (2σ) at stylus tip 50 mm (1.97 in) from connector face. Probe compatibility Direct fi tting of SP25M, TP7M, OTP6M, SP600M and TP6A. PAA series adaptor/extension required for M8 connector probes TP200, TP20 and TP2.

  • Page 14: Probe Compatibility

    Probe compatibility Probe compatibility PH6M † PEL1 PEL2 PAA2 PEL3 PEL4 PAA3 TP2-5W Q24885 TP20 TP200‡* M3/M2 adaptor M2 thread styli...
  • Page 15 Probe compatibility PEM1 PEM3 PEM25 PEM25 PEM1 PEM2 SP600‡ SP25M‡ TP6A TP7M‡ M4/M3 adaptor M4 thread M3 thread styli styli...

  • Page 16: Accessories And Parts List

    CMM or autochange rack. Autojoint key A-1051-0040 Parts list Please quote the part number when ordering. Type Part number PH6M + MS1 shank A-1074-0031 PH6M + MS2 shank A-1074-0032 PH6M + MS3 shank A-1074-0033 PH6M + MS9 shank A-1074-0039...
  • Page 17 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, please visit our main website at www.renishaw.com/contact *H-1000-5001-03*...
