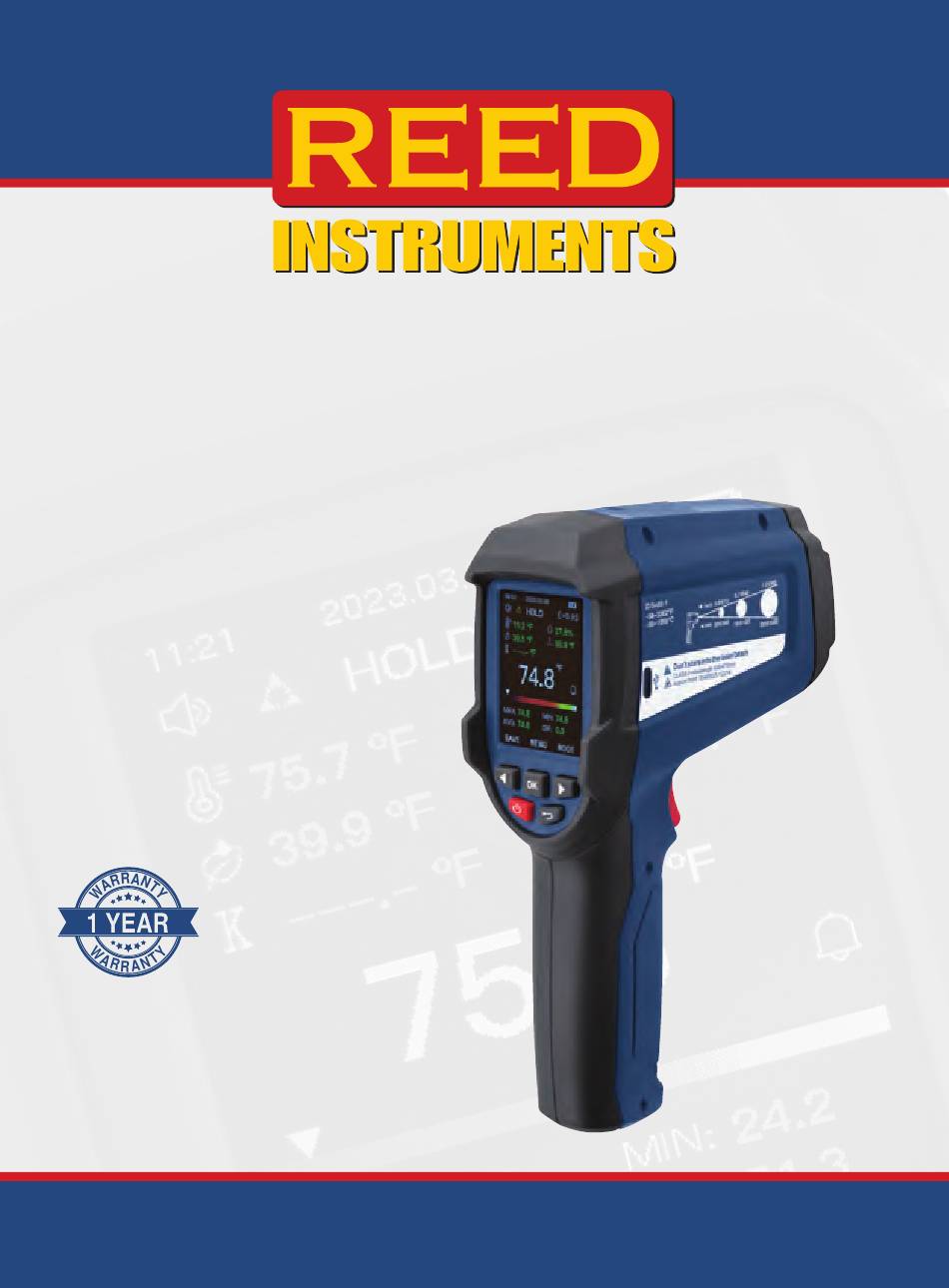

- Page 1 R2340 Professional Infrared Thermometer 1 YEAR 1 AN 1 AN 1 YEAR Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Thermocouple Mode ................14 Setup Menu ..................15-22 Set the Time and Date ..............15-16 Select the Temperature Unit of Measure ..........16 Set the High and Low Temperature Alarms........16-17 Adjust Emissivity ................. 17 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 3 Charging the Battery ................24 Applications ....................24 Accessories ....................24 Appendix: Emissivity Chart ..............25-26 Troubleshooting ..................27 Product Care .................... 28 Product Warranty ..................28 Product Disposal and Recycling .............. 28 Product Support ..................29 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 4: Introduction
Introduction Thank you for purchasing your REED R2340 Professional Infrared Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 5: Features
• Internal memory stores up to 999 datapoints • Trigger lock for continuous monitoring • Low battery indication and auto shut off Included • Professional Infrared Thermometer • USB Cable • Type K Bead Thermocouple • Hard Carrying Case REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Specifications
0.1°F (0.1°C) Relative Humidity Measuring Range: 10% RH to 90% RH Accuracy: ±5% RH General Specifications Optical Resolution (D:S): 55:1 Spectral Response: 8 to 14µm Emissivity: 0.1 to 1.0 (Adjustable) Response Time: 250ms continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 7 -4 to 140°F (-20 to 60°C) Operating Humidity Range: 10 to 90% Maximum Operating Altitude: 6561' (2000m) Maximum Storage Altitude: 39.370' (12.000m) Dimensions: 8.07 x 4.88 x 2.56" (205 x 124 x 65mm) Weight: 0.82lbs (375g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 8: Instrument Description
7. Power Button 2. Laser Pointer Beam 8. OK Button 3. Temperature and 9. Right Button Humidity Sensor 10. Back Button 4. IR Sensor 11. USB-C Interface 5. LCD Display 12. Trigger 6. Left Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Display Description
Wet bulb temperature Appointment Type K thermocouple temperature Battery status Infrared temperature Lock measurement Maximum Alarm Minimum Range bar Average Reference temperature (IR-Ref) Difference Difference (IR-Ref) Difference (IR-AT) Difference (IR-DP) Difference (comparison mode) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Distance & Spot Size
Distance & Spot Size The light spot diameter represents 90% of the energy of the circle. Le diamètre du point lumineux représente 90 % de l’énergie du cercle. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Operating Instructions
Note: Each time the trigger is pulled an internal log is created which captures the following information: a) IR temperature d) Min/Max/Avg/Dif (if either Min/ Max or Avg/Dif is enabled) b) Thermocouple temperature (if connected) e) Date/Time c) Emissivity continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Continuous Temperature Measurement (Trigger Lock)
ON and OFF. When turned on, the laser indicator will be displayed on the LCD, while the red laser beam will indicate the position being measured. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Measurement Modes
The thermometer automatically calculates the difference (IR-Ref) by subtracting the temperature of the object being measured (IR) from the reference temperature as shown in Figure 3. Figure 1 Figure 2 Figure 3 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Thermal Conduction
In this mode, the thermometer automatically calculates the difference by subtracting the temperature of the object being measured from the type K thermocouple temperature as shown in Figure 6. Figure 4 Figure 5 Figure 6 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Setup Menu
Hour as indicated by "00:". Press the OK button to confirm selection. Repeat steps 6, 7 and 8 to adjust the minutes time stamp as indicated by ":00". continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Select The Temperature Unit Of Measure
Press the OK button to activate the applicable temperature alarm. Press the button to select "-" or "+". Press the button to confirm selection and jump to the first digit. Press the button to set the temperature value. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 17: Adjust Emissivity
User scheduled Measurement Recording Interface. a) View Interval Recordings c) Set Recording Intervals b) Format Follow the instructions below to adjust each setting. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 18: View Interval Recordings (Inquiry)
"MM". Press the buttons to adjust the Month. Press the OK button to confirm selection and activate the day digits as indicated by "DD". Press the buttons to adjust the Day. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 19 29. Press the OK button to confirm selection. 30. To disable this feature, the "Close" selection box must be selected by pressing the OK button when highlighted. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 20: View/Format Recorded Logs
When complete, the meter will automatically return to the "Memory Storage Interface" screen. Note: At any time, press the BACK button twice or pull the trigger to exit the Setup Menu screen and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 21: System Settings
Press the BACK button to return to the "System Settings" screen. Note: At any time, press the BACK button twice or pull the trigger to exit the Setup Menu screen and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 22: Set Trigger Lock Time
Press the BACK button to return to the "System Settings" screen. Note: At any time, press the BACK button twice or pull the trigger to exit the Setup Menu screen and resume normal operation. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 23: Data Logging
PDF/CSV formats. Note: No software is necessary to view saved data. Simply click and drag data from the device on to a computer's desktop or open directly from any of the folders. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 24: Charging The Battery
Charging the Battery Connect the R2340 via the included cable to a USB port on a PC or into a wall outlet using a USB Power Adapter (not included). Charge the meter until the battery indicator appears full and remove the charging cable when complete. -
Page 25: Appendix: Emissivity Chart
0.6-0.95, 0.2, 0.2-0.3 Non-Oxidization, Casting Iron (Forging): Passivation Lead: Rough, Oxidization 0.4, 0.2-0.6 Molybdenum: Oxidization 0.2-0.6 Nickel: Oxidization 0.2-0.5 Platimun: Black Steel: Cold Rolling, Steel Plate- 0.7-0.9, 0.4-0.6, 0.1 Burnishing, Steel Plate Rubbing continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 26 0.95 Clay 0.95 Concrete 0.95 Cloth Glass: Convex, Smooth, Lead-Boron 0.76-0.8, 0.92-0.94, 0.78-0.82 Plates 0.96 Stone Products 0.93 Plaster 0.8-0.95 0.98 Limestone 0.98 Paper 0.95 Plastics 0.95 Water 0.93 Soil 0.9-0.98 Wood 0.9-0.95 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 27: Troubleshooting
Inaccurate Wrong emissivity Refer to Field of View, D:S measurement setting, measured and other instructions in distance is too far, this manual measured target diameter is less than 20mm, etc. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 28: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 29: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 30 Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
