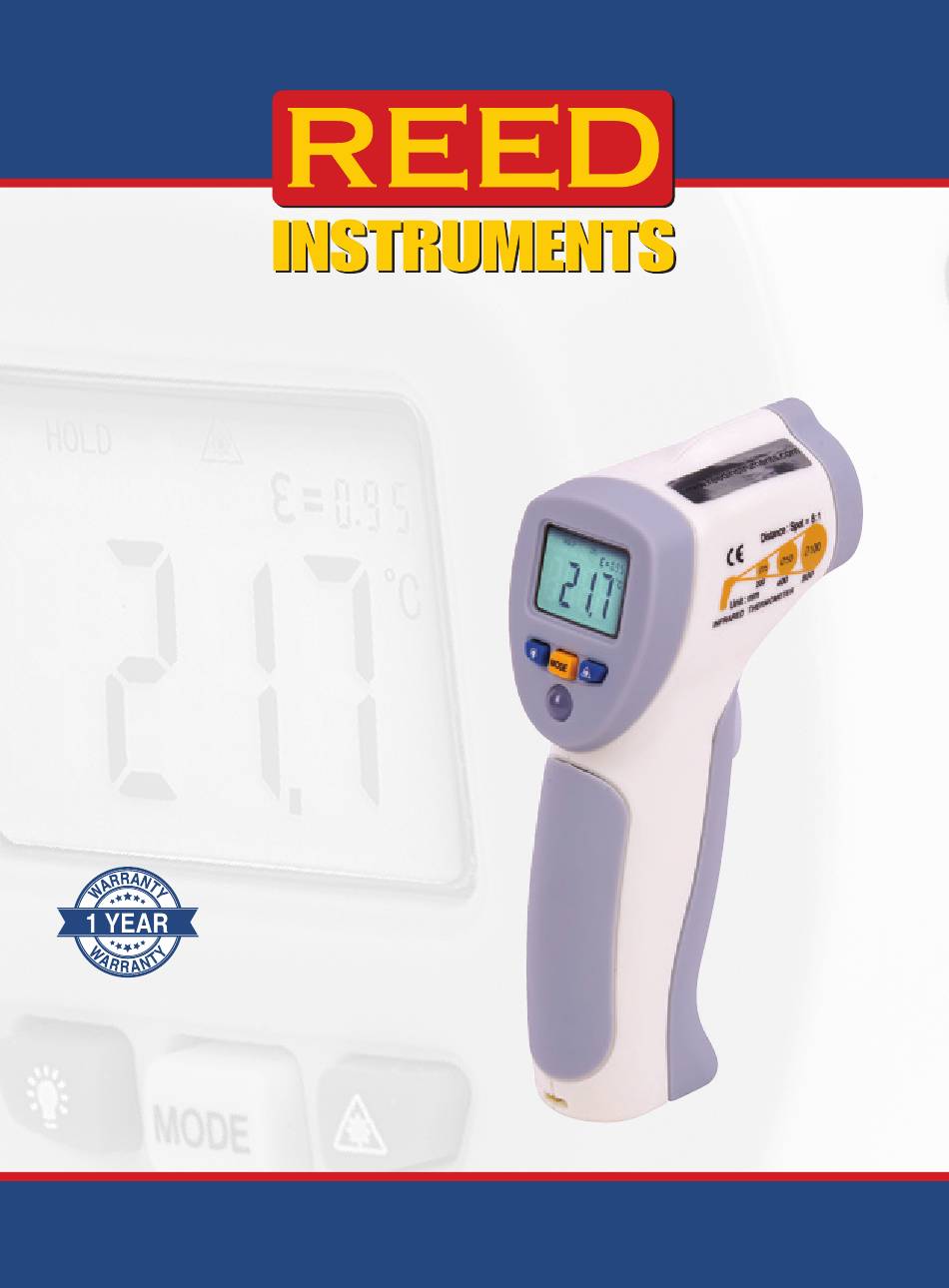

- Page 1 FS-200 Food Service Infrared Thermometer Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Trigger Lock Setup ................. 8 Battery Replacement .................. 8 Applications ....................9 Accessories and Replacement Parts ............9 Product Care ....................9 Product Warranty ..................10 Product Disposal and Recycling .............. 10 Product Support ..................10 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Introduction Thank you for purchasing your REED FS-200 Food Service Infrared Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality... -
Page 4: Features
4 to 392°F (-20 to 200°C): ±2% of reading or ±4°F (±2°C) Resolution: 0.1°F (0.1°C) Optical Resolution (D:S): Spectral Response: 6 to 14µm Emissivity: 0.95 (Fixed) Response Time: <1 second Display Size/Type: 1.5" LCD Backlit Display: continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Instrument Description
Instrument Description 1. Handle Grip 2. LED Alarm Indicator 3. BACKLIGHT Button 4. LCD Display 5. Laser Pointer Beam 6. IR Sensor 7. LASER Button 8. MODE Button 9. Triggerr 10. Battery Cover REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Display Description
The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size. See below for more information. 16mm Inch Distance(D) to Spot Size(S) D:S = 8:1 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Operating Instructions
Press the BACKLIGHT button to turn to the LCD backlight on or off. Switching the Unit of Measure (°F/°C) Press the MODE button to enter the unit of measure setup. The current selected unit of measure will begin to flash. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Setting The High/Low Temperature Alarms
Pull the trigger to confirm your selection and resume normal operation. Battery Replacement The battery should be replaced when appears on the LCD display. Open the battery cover. Replace the 9V battery. Close the battery cover. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Applications
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 11 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 12 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
