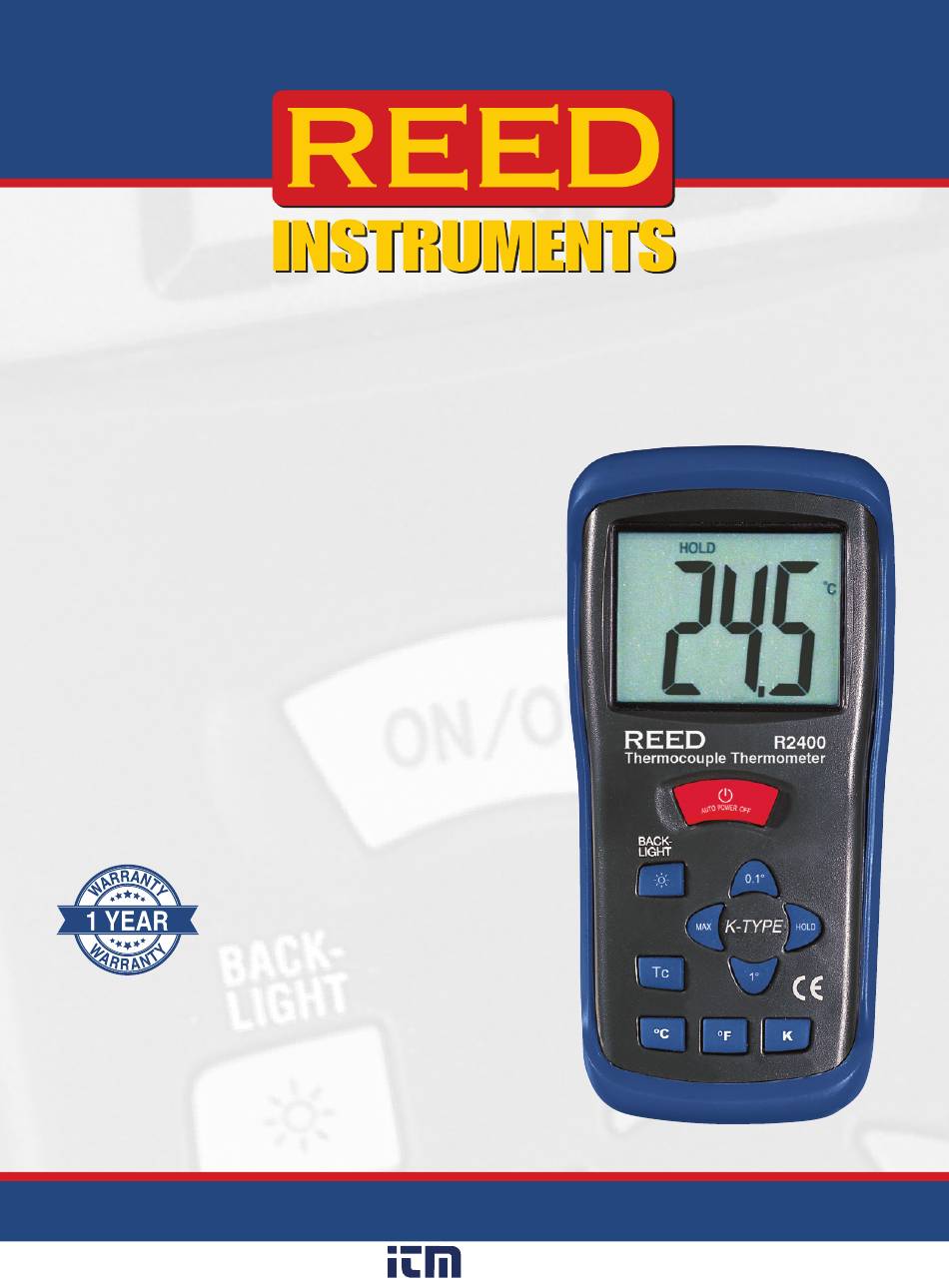

- Page 1 R2400 Type K Thermocouple Thermometer Instruction Manual www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............10 Product Support ..................10 Introduction Thank you for purchasing your REED R2400 Type K Thermocouple Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. -
Page 4: Features
Features • Type K thermocouple thermometer • Large, easy-to-read backlit LCD display • User selectable °C, °F or Kelvin • Max and Data Hold functions • User selectable resolution of 0.1 or 1°F (0.1 or 1°C) • Tripod mount for long-term monitoring • Low battery indicator and auto shut off Included • Protective Boot • Beaded Wire Probe • Carrying Case • Battery www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com... -
Page 5: Specifications
Specifications Measuring Range: -58 to 2000°F (-50 to 1300°C), 223 to 2000K Accuracy: -58 to 32°F: ±4°F 32 to 2000°F: ±(0.5% rdg+2°F) -50 to 0°C: ±2°C 0 to 1000°C: ±(0.5% rdg+1°C) 1000 to 1300°C: ±(0.8% rdg+1°C) 223 to 273K: ±5K 273 to 2000K: ±(1.0% rdg+2K) Resolution: 0.1 or 1°F/°C, 1K Type: Single Input, Thermocouple Type K Response Time: 1x/second Display: 3 1/2-Digit LCD Backlit Display: Data Hold: Max: Overrange Indicator: Auto Shut-Off: Yes (after 15 minutes) Kick Stand: Tripod Mountable: Low Battery Indicator: Power Supply: 1 x 9V Battery Product Certifications:... -
Page 6: Instrument Description

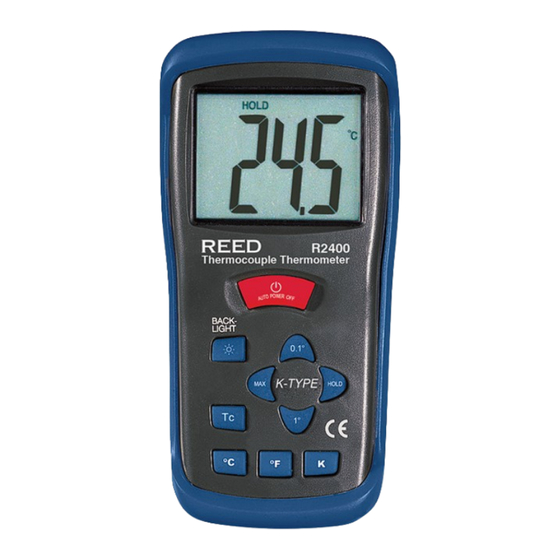

Instrument Description ° ° R2400 Thermocouple Thermometer BACK- LIGHT ° ° 1 ° ° 1. Data HOLD Indicator 9. MAX Button 2. Thermocouple Input Jack 10. Data Hold Button 3. Temperature Measurement 11. Temperature Compensation Indicator Button 4. MAX Indicator 12. 1° Resolution Button 5. Temperature Unit of Measure 13. °C Button 6. Power Button 14. Kelvin Unit of Measurement... -
Page 7: Operating Instructions
Operating Instructions Connecting Thermocouples This meter accepts K-type thermocouples with a mini plug. Measuring Procedure Turn the meter on by pressing the power button. To change the temperature unit of measure, press the °C, °F, or K buttons. Note: The meter will automatically save the last selected temperature unit when powered off. -
Page 8: Max Value
MAX Value While taking a measurement, press the MAX button to enter the Max Value Mode. The MAX Indicator will appear on the display. Under this mode the maximum value is recorded and updated when a new maximum temperature measurement has been taken. Press the HOLD button to stop the recording the maximum value Press the HOLD button again to resume recording the maximum value. -
Page 9: Accessories And Replacement Parts
Accessories and Replacement Parts • TP-01 Beaded Thermocouple Wire Probe • R2920 Surface Thermocouple Probe • R2930 Right Angle Thermocouple Probe • R2940 Air/Gas Thermocouple Probe • R2950 Immersion Thermocouple Probe • R2960 Needle Tip Thermocouple Probe • R1500 Tripod • CA-05A Soft Carrying Case Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com. -
Page 10: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 11 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
