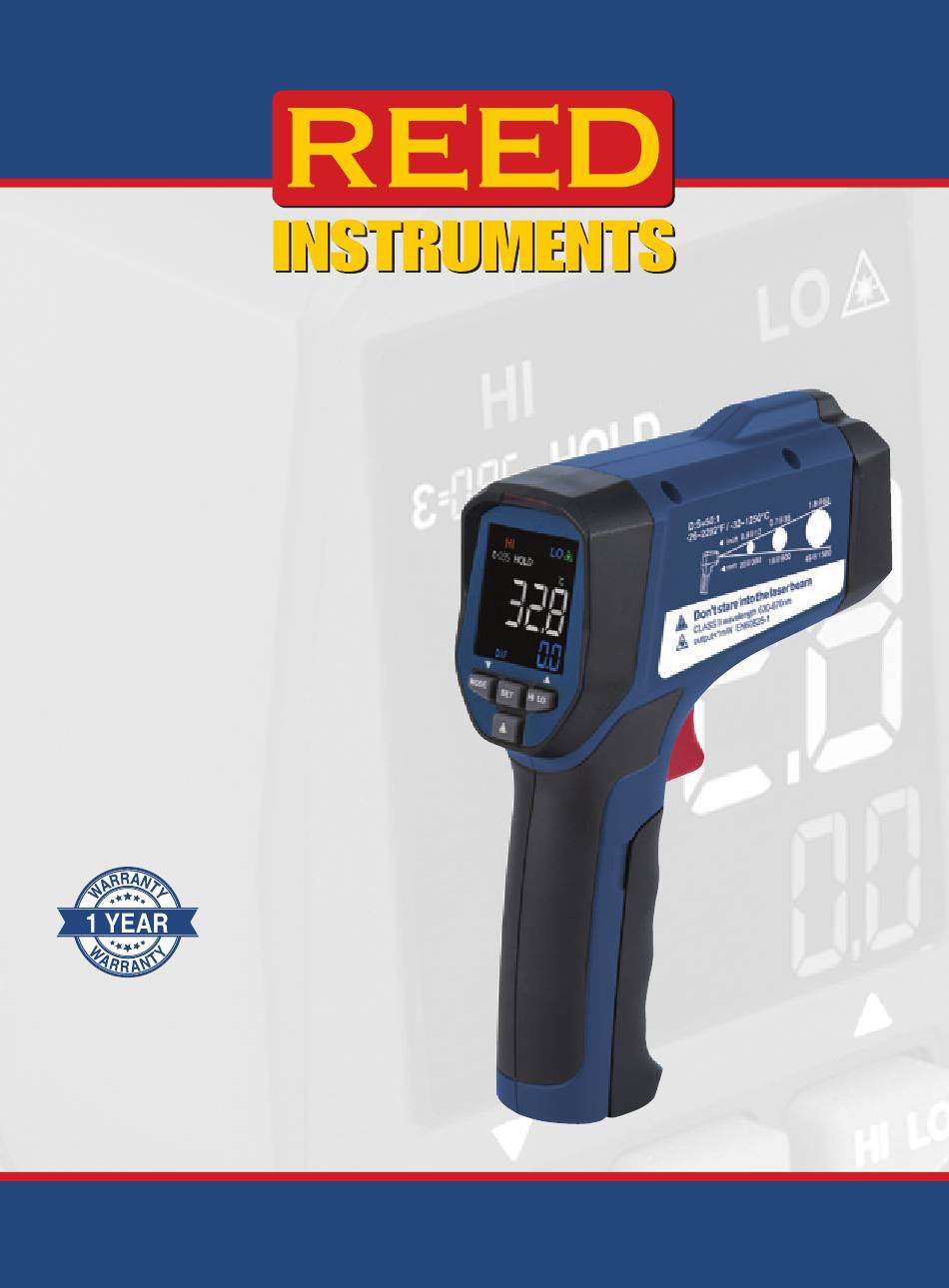

- Page 1 R2330 Infrared Thermometer Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Battery Replacement ................... 15 Applications ....................15 Appendix: Emissivity Chart ..............16-18 Fault Diagnostics ..................18 Product Care ....................18 Product Warranty ..................19 Product Disposal and Recycling ..............19 Product Support ..................19 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R2330 Infrared Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
≥32°F: ±3.6°F or ±1.8% of reading, whichever is greater, <32°F: ±(3.6°F+0.1°F/°F) Resolution: 0.1°F (0.1°C) Optical Resolution (D:S): 50:1 Laser Optimization Distance: 5.2' (1.6m) Repeatability: 0.8°C or 0.8%, whichever is greater (1.8°F or 0.8%, whichever is greater) continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 -4 to 140°F (-20 to 60°C) Operating Humidity Range: 10 to 90% Maximum Operating Altitude: 6561' (2000m) Maximum Storage Altitude: 39370' (12000m) Dimensions: 7 x 4.98 x 2" (179 × 126.5 × 53mm) Weight: 10.95oz (310g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Instrument Description
1. Dual Laser Pointer Beams 7. Mode Button/Down Arrow 2. IR Sensor 8. Set Button 3. Trigger 9. High/Low Alarm Button/ 4. Battery Cover Up Arrow 5. Tripod Mount 10. Laser ON/OFF Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Display Description
Temperature Measurement Trigger Lock Audible Alarm Indicator Temperature Measurement Alarm Indicator Low Battery Temperature Measurement Active Measurement Data Hold Unit of Measurement Temperature Measurement Value Temperature Measurement Value from Selected Mode Emissivity Laser On Mode REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Distance & Spot Size
Distance & Spot Size REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
You can view the last measured value by pulling the trigger. Note: The last measured value is cleared when a new test scan is started. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Maximum, Minimum, Average And Differential Functions
ON and OFF. When it is turned on, the laser indicator will be displayed on the LCD, while the red laser beam will indicate the position you are measuring during testing. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Setting The High Temperature Alarm
Hold the UP or DOWN buttons to add or subtract by 10 temperature values. The instrument will exit the setup after 10 seconds of inactivity or if the trigger is pulled at any time. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Adjusting Emissivity
Press the SET button four times to enter unit of measure setup. Use the UP and DOWN buttons to switch between °F and °C units. The instrument will exit the setup after 10 seconds of inactivity or if the trigger is pulled at any time. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Audible Alarm Setting
LED and "LO" indicator will flash when the measured value is below the set alarm. If the audible alarm function has been turned on, the meter will also emit a beeping sound. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 14 LED lights up and the OK indicator is displayed, indicating that the measured temperature value is normal. High/Low alarms on. High alarm on. Low alarm on. No alarm set. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 15: Battery Replacement
• Calibration and control of heater and oven temperatures • Monitoring materials in processes involving heating and/or cooling • Quality control monitoring • Research and development applications • Automotive diagnostics • Conduct HVAC/R energy audits REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Appendix: Emissivity Chart
Sand-Blasting, Electro Burnishing Iron: Oxidization, Rusting 0.5-0.9, 0.5-0.7 Iron (Casting): Oxidization, 0.6-0.95, 0.2, 0.2-0.3 Non-Oxidization, Casting Iron (Forging): Passivation Lead: Rough, Oxidization 0.4, 0.2-0.6 Molybdenum: Oxidization 0.2-0.6 Nickel: Oxidization 0.2-0.5 Platinum: Black continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 17 0.95 Clay 0.95 Concrete 0.95 Cloth Glass: Convex, Smooth, 0.76-0.8, 0.92-0.94, 0.78-0.82 Lead-Boron Plates 0.96 Stone Products 0.93 Plaster 0.8-0.95 0.98 Limestone 0.98 Paper 0.95 Plastics 0.95 Water 0.93 Soil 0.9-0.98 Wood 0.9-0.95 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 18: Fault Diagnostics
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 19: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 20 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
