MODEL #
CM7130DM
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Philip Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America CM7130DM
Summary of Contents for Furniture of America CM7130DM
- Page 1 MODEL # CM7130DM Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Philip Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...

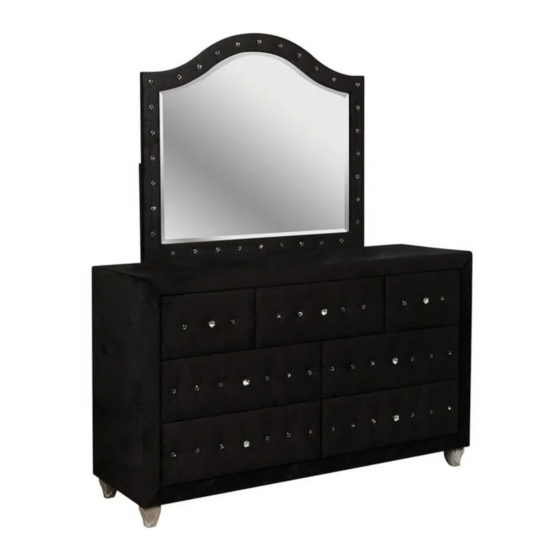

- Page 5 DRESSER&MIRROR CM7130D&M #3 2pcs #1 1pc #2 1pc Dresser Mirror Support Rob #B 8pcs #C 8pcs #A 8pcs Flat Washer Ø1/4" Lock Washer Ø1/4" Bolt Ø1/4" x 1-3/4" #D 1pc #E 1set Anti Tip Kit Allen Wrench 4mm 5 / 8...
- Page 6 Exploded View 20mm 40mm 40mm 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Align mirror supports (#3) to the Part #2 x1pc dresser (#1) and mirror (#2), Part Part then secure by using bolts (#A) #3 x2pcs with washers (#B,C). Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Hardware #E x1set 7 / 8...
