For more information contact our team: service.ec@foagroup.com

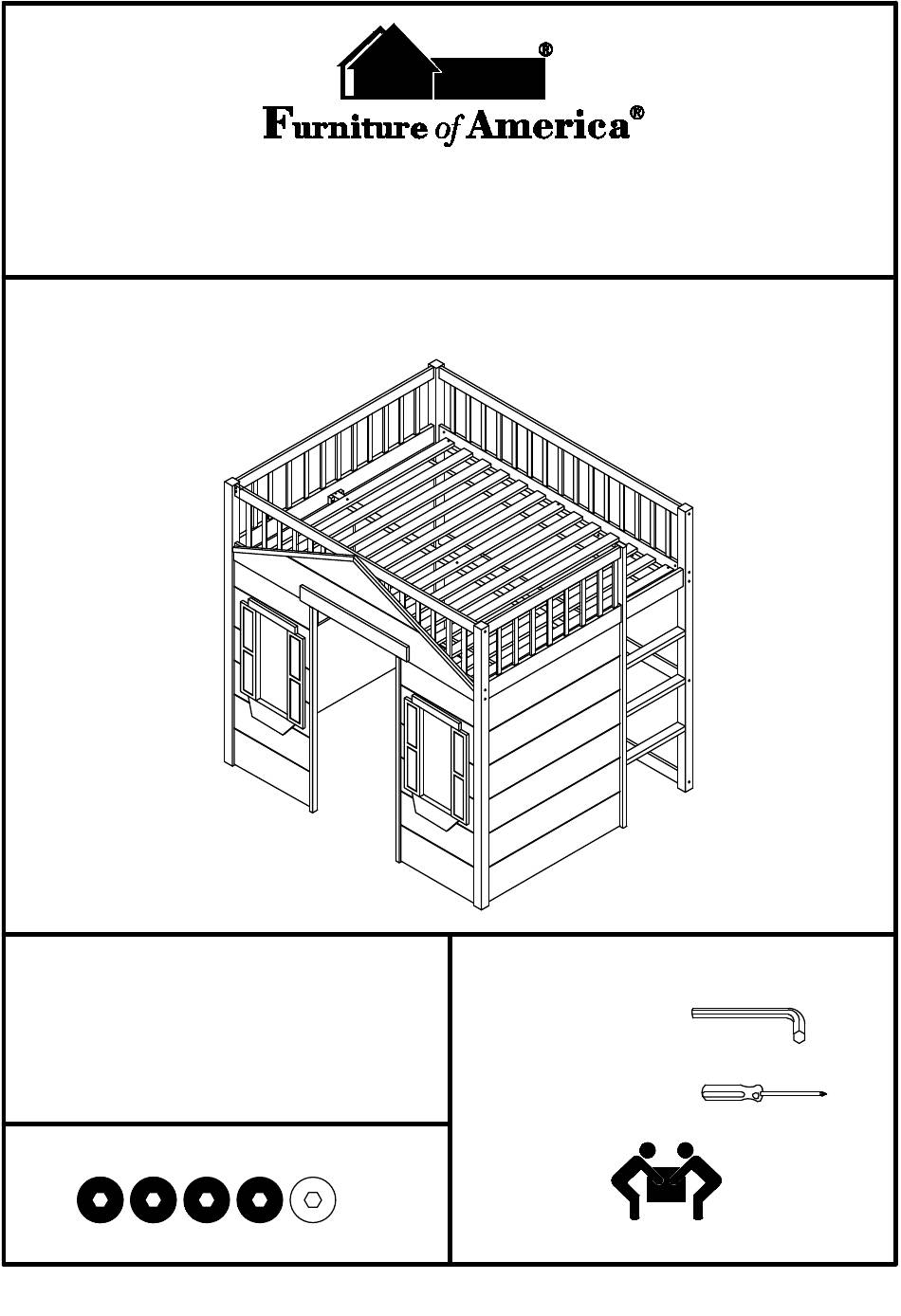

ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY

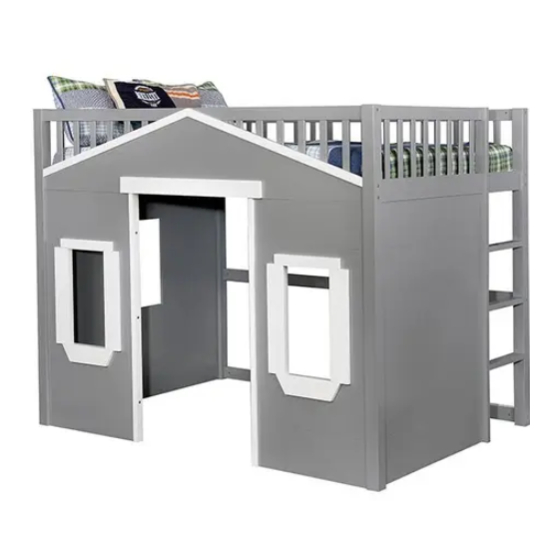

Assembly Instructions
CM7132F
DIFFICULT
Tools Required For Assembly:
Allen Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 10
(Included)
(Not Included)
Rev: 18-03-12
Advertisement
Related Manuals for Furniture of America CM7132F
Summary of Contents for Furniture of America CM7132F
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM7132F ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 10...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 16pcs Heardboard (Left) Bolt 1/4" x 4-3/8" #2 x 1pc #B x 16pcs Heardboard (Right) Barrel Nut 1/4"...
- Page 4 #9 x 1pc #I x 1pc Frames (Right) Allen Wrench 4mm #10 x 1pc Crossbar #13 x 2pcs Window #11 x 2pcs Window #14 x 1pc Center Support #12 x 4pcs Window Page 4 of 10...
- Page 5 1) Insert dowels (#E) and barrel nuts (#B) to the holes of the upper side rails (#3,4), then align the upper side rails (#3,4) to the upper holes of the headboards (#1,2). Secure by tightening bolts (#A) onto the inserted barrel nuts (#B) in the upper side rails (#1,2).
- Page 6 Align frames (#8,9) to the holes of the unit, then secure by using bolts (#C). #C x 10pcs #8,#9 #D x 4pcs #G x 2pcs Insert dowel (#G) to the window bar (#11), then align window bar (#11) to the holes of the window.
- Page 7 Insert dowel (#G) to the window side bars (#12), then align window side bars (#12) to the holes of the window. Secure by using bolts (#D). #D x 8pcs #G x 4pcs Insert dowel (#G) to the bottom window bars (#13), then align bottom window bars (#13) to the holes of the window.
- Page 8 Insert dowel (#G) to the crossbar (#10), then align crossbar (#10) to the holes of the unit. Secure by using bolts (#C). #C x 2pcs #F x 1pc Align center support (#14) to the headboards (#1,2), then secure by using screws (#H). #H x 2pcs Page 8 of 10...
- Page 9 #H x 9pcs Align slats (#6) to the upper bunk, then secure by using screws (#H). ASSEMBLY IS COMPLETED Page 9 of 10...
- Page 10 Page 10 of 10...
