VERSION # 21-10-12
1 / 9
MODEL #
CM7124-F/Q
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM7124-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Furniture of America CM7124-F

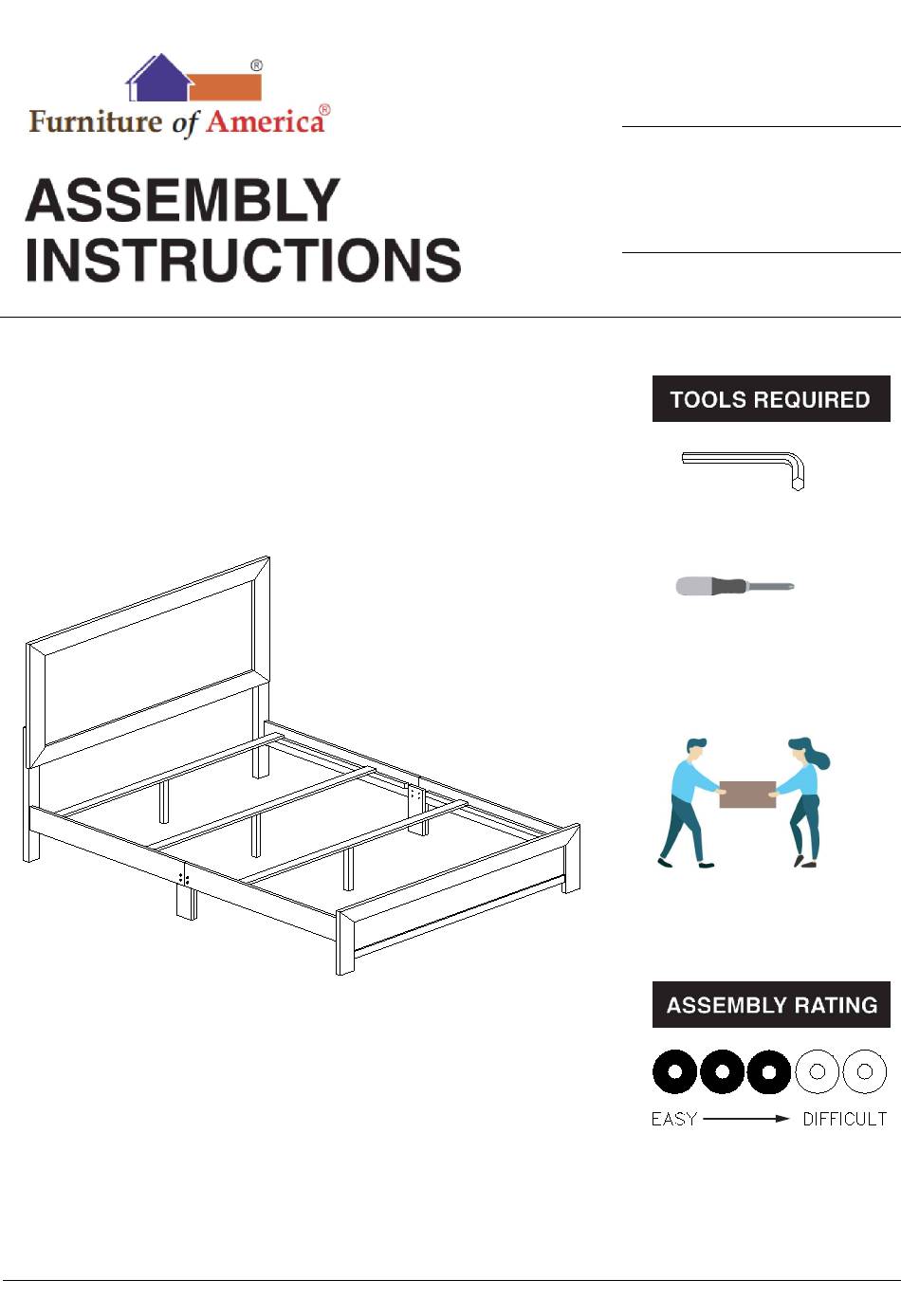

  • Page 1 MODEL # CM7124-F/Q Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
  • Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
  • Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
  • Page 4 4 / X X X X X X X 9...
  • Page 5 FULL BED / QUEEN BED CM7124-F-Q #1 1pc #2 2pcs #3 1pc Headboard Leg Footboard Headboard - L & R #4 4pcs #5 2pcs #6 4pcs Side Rail Bed Slat Side Rail - L & R Support Leg #7 4pcs...
  • Page 6 HARDWARE #A 6pcs #B 6pcs #C 6pcs #D 1pc Allen Key Spring Washer Flat Washer JCBB Bolt M8 x 40 mm #E 8pcs #F 12pcs #G 12pcs #H 8pcs JCBC Bolt Spring Washer Flat Washer JCBB Bolt M6 x 40 mm M8 x 16 mm #I 1pc #J 8pcs...
  • Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x2pcs Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs Hardware #D x1pc Part #4 x4pcs Part #5 x2pcs Hardware...
  • Page 8 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #3 x1pc Hardware #E x8pcs - Tighten the JCBC Bolt (#E) through the Headboard Leg (#2) or Footboard (#3) using allen key (#D). Align and hook side rails (#4,5) to the bolts of the headboard (#1) and footboard (#3), then secure by tightening the bolts.
  • Page 9 ASSEMBLY INSTRUCTIONS Part #6 x4pcs Part #7 x4pcs Hardware #F x4pcs Hardware #G x4pcs Hardware #I x1pc - Tighten the JCBC Bolt (#F) with spring washer (#G) through the slat support (#7) Adjustable glider using allen key (#I). NOTE: THE SETUP MUST DONE AT THE DECIDED LOCATION FOR THE BED OBTAIN PERFECT STABLITY Part...
