IPS Controllers M920 Owner's Manual page 33

M920 & M920W pH/Dual ORP Controller Owner's Manual
8. Type in the Network Key associated
with the selected Wi-Fi network.
Note: Keys are case sensitive. Click
on the Submit button.
See Figure 19.
9. Click on the OK button in the dialog
box. Ignore the displayed warning
during the final process. Note: The
device in the warning is XPicoWiFi.
See Figure 20.
10. The Wi-Fi network connection is
complete, and the green remote
light on the front of the controller
should show as a solid green.
If the light is not a solid green, verify
that the correct Wi-Fi network is
selected and re-enter the network
key. Note: Keys are case sensitive.

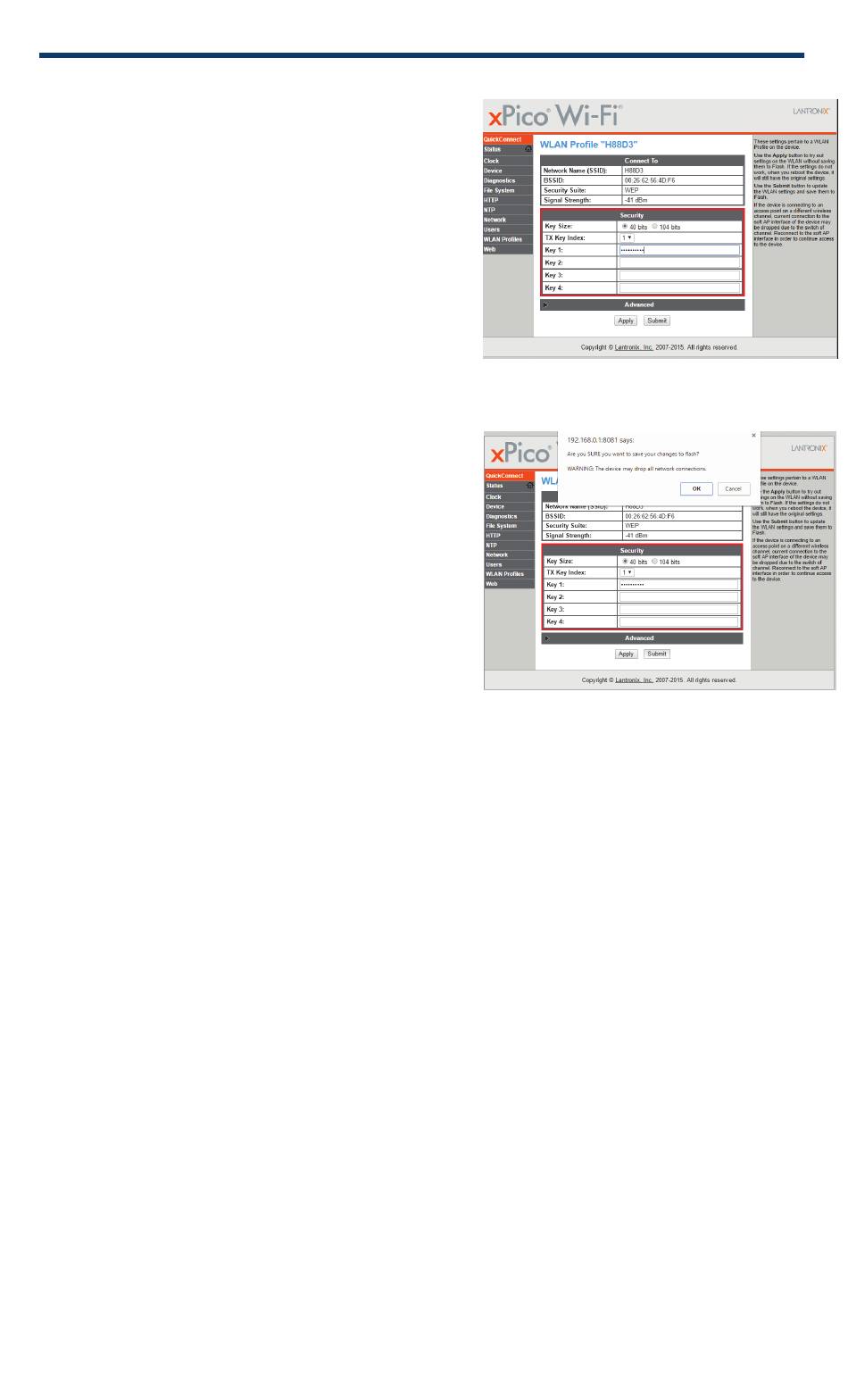

Figure 19: Wi-Fi Network Key
Figure 20: Complete Connection
31
