Delta Children babyGap Legacy Manual

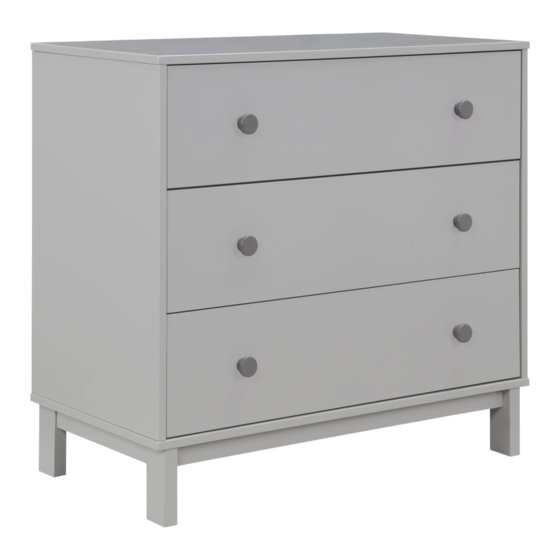

3 drawer dresser
Hide thumbs Also See for babyGap Legacy:

Advertisement

Quick Links

Download this manual
Read all instructions
before assembly and use.
KEEP INSTRUCTIONS FOR
FUTURE USE.
EN
Style #:
___________
Lot:
___________
A
REV
Date:
___________
Before contacting Delta Consumer
Experience Center please ensure this
information matches the information
found on the label on the Back Panel.
To Make Assembly Even
Easier Watch Video Here!
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,
keep out of reach of children until assembly is complete.
This product is not intended for institutional or commercial use.
3 Drawer Dresser
For Questions or
to Contact Us:
DeltaChildren.com/Help
If unable to access website, please email
wcs@DeltaChildren.com
Expect longer response times via email.
June 24, 2022, 43013, R2
