Read all instructions
before assembly and use.
KEEP INSTRUCTIONS FOR
FUTURE USE.
EN
Style #:
___________
Lot:
___________
A
REV
Date:
___________
Before contacting Delta Consumer
Experience Center please ensure this
information matches the information
matches the information found on the
label on the
Back Panel.
To Make Assembly Even
Easier Watch Video Here!
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,
keep out of reach of children until assembly is complete.
This product is not intended for institutional or commercial use.

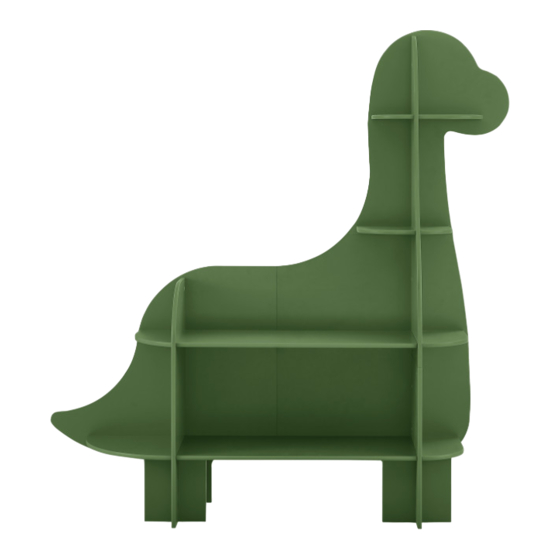

Bookcase
For Questions or
to Contact Us:
DeltaChildren.com/Help
If unable to access website, please email
wcs@DeltaChildren.com
Expect longer response times via email.
NOTE: 2 PERSON ASSEMBLY IS
NECESSARY.
NOTA: DEBE SER MONTADO
POR 2 PERSONAS.
August 12, 2022, 43156, R0

Advertisement

loading
Need help?

Need help?

Do you have a question about the W172451-318 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Children W172451-318

  • Page 1 Bookcase Read all instructions For Questions or To Make Assembly Even before assembly and use. to Contact Us: Easier Watch Video Here! KEEP INSTRUCTIONS FOR DeltaChildren.com/Help FUTURE USE. If unable to access website, please email wcs@DeltaChildren.com Expect longer response times via email. NOTE: 2 PERSON ASSEMBLY IS NECESSARY.
  • Page 2 Librero Para preguntar o para Para facilitar más aun el Lea todas las instrucciones ensamblaje ver el video aquí contactarnos : antes de ensamblar y usar. DeltaChildren.com/Help MANTENGA LAS Si no puede acceder el sitio web, por INSTRUCCIONES PARA SU favor envíenos un email a USO FUTURO.
  • Page 3 NOTAS SOBRE SU CUIDADO Y MANTENIMIENTO: - No arañe ni desconche el acabado. - Inspeccione el producto con regularidad, póngase en contacto con Delta Children’s Products para el recambio de partes o para formular preguntas. - No guarde el producto ni ninguna de sus partes a temperaturas ni en condiciones extremas como un ático caluroso o un sótano húmedo y frío.
  • Page 4 SAVE BIG WITH DELTA CHILDREN Visit Deltachildren.com To Start Shopping Welcome to the DELTA FAMILY Here's a Gift From Us To You USE CODE: DELTA10 Your Next Purchase From DeltaChildren.com *Exclusions Apply *Subject to Change REVIEW TO WIN $2500 R U L E S T O E N T E R “We LOVE, LOVE, LOVE this crib”...
  • Page 5 AHORRE MUCHO CON DELTA CHILDREN Visita Deltachildren.com Para Comenzar A Comprar Bienvenido a la FAMILIA DELTA Aquí Está Nuestro Regalo UTILICE EL CÓDIGO: Para Usted DELTA10 Su Próxima Compra En DeltaChildren.com *Exclusions Apply *Subject to Change CALIFIQUE EL PRODUCTO PARA GANAR $2500 REGLAS PARA PARTICIPAR CALIFIQUE EL PRODUCTO en la página web de la tienda donde haya sido comprado...
  • Page 6 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT PIEZAS: ASEGÚRESE DE QUE TODAS LAS PIEZAS PRE-ENSAMBLADAS ESTÁN BIEN APRETADAS. Right Upper Back Panel x 1 Panel trasero superior derecho 43138 Left Back Panel x 1 Panel Trasero izquierdo Right Lower Back Panel x 1 43136 Panel trasero inferior derecho 43137...
  • Page 7 Washer Arandela Center Middle Shelf x 1 Estante medio central 43149 Wall Strap Abrazadera Center Top Shelf x 1 Short Screw Long Screw Estante central superior Tornillo corto Tornillo Largo 43150 Right Bottom Shelf x 1 Right Upper Middle Shelf x 1 Estante inferior derecho Estante medio superior derecho 43151...
  • Page 8 PARTS: HARDWARE KITS PART#43155 PIEZAS: EL KIT DE HERRAMIENTAS - PIEZA #43155 No drills necessary. Do not use power screwdriver. Cam Bolt x 40 Perno de Leva x 40 No hace falta taladrar. 6252 No utilice destornilladores eléctricos Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Cam Lock x 54 Bloqueo de Leva x 54...
  • Page 9 How to use the cam lock system. Cómo utilizar el sistema de bloqueo de leva. 1.Insert the cams. 2.Cam bolts must be screwed down flush. 3.Refer to page 9 for instructions on how to use the cam lock system. 1. Inserte las levas. 2.
  • Page 10 STEP 1 PASO 1 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Center Shelf x 1 Estante central Cam Bolt x 2 Perno de Leva x 2 Left Small Foot x 1 Pata pequeña izquierda Cam Lock x 2...
  • Page 11 AA x 2 BB x 2...
  • Page 12 STEP 2 PASO 2 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Right Upper Divider Panel x 1 Panel divisor superior derecho Double Ended Dowel x 2 Pasador de doble extremo x 2 Right Lower Divider Panel x 1 Panel divisor inferior derecho...
  • Page 13 BB x 4 CC x 2...
  • Page 14 STEP 3 PASO 3 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso From Step 1 Desde el paso 1 Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) From Step 2 Desde el paso 2 Cam Bolt x 3 Perno de Leva x 3 Cam Lock x 3...
  • Page 15 From Step 2 Desde el paso 2 AA x 3 BB x 3 From Step 1 Desde el paso 1...
  • Page 16 STEP 4 PASO 4 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Left Divider Panel x 1 Panel divisor izquierdo Cam Bolt x 3 Perno de Leva x 3 Cam Lock x 3 Bloqueo de Leva x 3 From Step 3...
  • Page 17 AA x 3 BB x 3 From Step 3 Desde el paso 3...
  • Page 18 STEP 5 PASO 5 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Left Large Foot x 1 Pata grande izquierda Cam Bolt x 1 Left Bottom Shelf x 1 Perno de Leva x 1 Estante inferior izquierdo Cam Lock x 1...
  • Page 19 AA x 1 BB x 1...
  • Page 20 STEP 6 PASO 6 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso From Step 5 Desde el paso 5 Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Left Top Shelf x 1 Estante superior izquierdo Cam Bolt x 3 Perno de Leva x 3 Cam Lock x 3...
  • Page 21 From Step 4 Desde el paso 4 AA x 3 BB x 3 From Step 5 Desde el paso 5...
  • Page 22 STEP 7 PASO 7 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Right Large Foot x 1 Destornillador Phillips (no incluido) Pata grande derecha Cam Bolt x 1 Right Bottom Shelf x 1 Perno de Leva x 1 Estante inferior derecho Cam Lock x 1...
  • Page 23 AA x 1 BB x 1...
  • Page 24 STEP 8 PASO 8 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso From Step 7 Desde el paso 7 Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Right Lower Middle Shelf x 1 Estante medio inferior derecho Cam Bolt x 3 Perno de Leva x 3...
  • Page 25 From Step 6 Desde el paso 6 AA x 3 From Step 7 BB x 3 Desde el paso 7...
  • Page 26 STEP 9 PASO 9 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Right Upper Middle Shelf x 1 Phillips Screwdriver (Not Provided) Estante medio superior derecho Destornillador Phillips (no incluido) Right Top Shelf x 1 Estante superior derecho Cam Bolt x 2 Perno de Leva x 2...
  • Page 27 From Step 8 Desde el paso 8 AA x 2 BB x 2...
  • Page 28 STEP 10 PASO 10 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Center Middle Shelf x 1 Destornillador Phillips (no incluido) Estante medio central Center Top Shelf x 1 Estante central superior Cam Bolt x 2 Perno de Leva x 2...
  • Page 29 From Step 9 Desde el paso 9 AA x 2 BB x 2...
  • Page 30 STEP 11 PASO 11 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Right Lower Back Panel x 1 Panel trasero inferior derecho Double Ended Dowel x 5 Pasador de doble extremo x 5 Cam Lock x 5 Bloqueo de Leva x 5...
  • Page 31 BACK! POSTERIOR! BB x 5 CC x 5...
  • Page 32 STEP 12 PASO 12 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) From Step 11 Desde el paso 11 Cam Bolt x 20 Perno de Leva x 20 Left Back Panel x 1 Panel Trasero izquierdo x 1 Right Upper Back Panel x 1...
  • Page 33 FRONT! el FRENTE AA x 20...
  • Page 34 STEP 13 PASO 13 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso From Step 12 Desde el paso 12 Phillips Screwdriver (Not Provided) Destornillador Phillips (no incluido) Cam Lock x 20 Bloqueo de Leva x 20 From Step 10 Desde el paso 10 Sticker...
  • Page 35 STEP 13-1 PASO 13-1 From Step 10 Desde el paso 10 From Step 12 Desde el paso 12 NOTE: 2 PERSON ASSEMBLY IS NECESSARY. NOTA: DEBE SER MONTADO POR 2 PERSONAS.
  • Page 36 STEP 13-2 PASO 13-2...
  • Page 37 STEP 13-3 PASO 13-3 DD x 26...
  • Page 38 STEP 14 PASO 14 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso From Step 13 Desde el paso 13 Phillips Screwdriver (Not Provided) Destornillardor’Phillips’(No siempre) Cam Lock x 5 Bloqueo de Leva x 5 2 people are recommended for this Se recomiendan 2 personas para step.
  • Page 39 BACK! POSTERIOR! NOTE: 2 PERSON ASSEMBLY IS NECESSARY. NOTA: DEBE SER MONTADO POR 2 PERSONAS.
  • Page 40 Tipover Restraint Protección contra volcamiento WARNING ADVERTENCIA Use of tip-over restraints may only El uso de herramientas de contención reduce, but not eliminate, the risk de vuelcos tan solo puede reducir, pero of tip-over. no eliminar, el riesgo de vuelco. Do not attempt to screw into the No intente atornillar a paredes hechas wallboard only.
  • Page 41 NOTE: Be sure to attach any accessory items to case before completing this step. 6)Feed the Tipover Restarint through the hole as you place the bookcase in it’s final position. NOTA: Asegúrese de fijar todos los accesorios a la carcasa antes de completar este paso. 6) Pase el elemento de retención a través del orificio, a medida que posiciona el mueble en su posición final.
  • Page 42: Limited Warranty

    Para reportarcualquier problema por favor entre a www.DeltaChildren.com/help Fecha de Compra: _____________ (debe además mantener su recibo) Delta Children’s Products Corp |114 West 26th Street New York, NY 10001...
  • Page 43 POR QUÉ ELEGIR A DELTA CHILDREN? Visita Deltachildren.Com/Pages/Our-Story para más información DELTA LIDERA DELTA DONA A DELTA DELTA CRECE Más De 50 DELTA ESTÁ LE IMPORTA CON USTEDES Años De DEDICADA 1 de cada 2 10% de nuestros Seguridad, niños en los ingresos está...
  • Page 44 WHY CHOOSE DELTA CHILDREN? Visit Deltachildren.Com/Pages/Our-Story for more information DELTA IS DELTA DELTA DELTA DELTA GROWS Over DEDICATED LEADS CARES GIVES WITH YOU 50 Years Of Our Family-Run 1 Out Of 2 Children 10% Of Our Profits We Test Above &...
