Delta Children Emerson 3 Drawer Dresser with Changing Top 551030-026 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Read all instructions
before assembly and use.
KEEP INSTRUCTIONS FOR
FUTURE USE.
EN
Style #:
___________
Lot:
___________
C
REV
Date:
___________
Before contacting Delta Consumer
Experience Center please ensure this
information matches the information
found on the label on the Back Panel.
To Make Assembly Even
Easier Watch Video Here!
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,
keep out of reach of children until assembly is complete.
This product is not intended for institutional or commercial use.

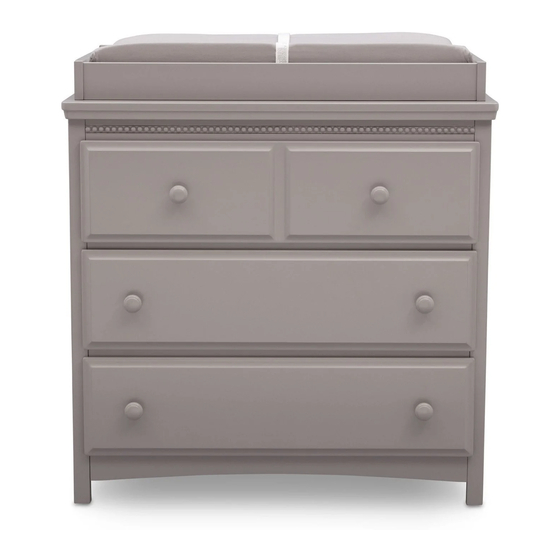

Dresser With
Changing Top
For Questions or
to Contact Us:
DeltaChildren.com/Help
If unable to access website, please email
wcs@DeltaChildren.com
Expect longer response times via email.
June 02, 2021, 29393, R0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Emerson 3 Drawer Dresser with Changing Top 551030-026 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Children Emerson 3 Drawer Dresser with Changing Top 551030-026

Summary of Contents for Delta Children Emerson 3 Drawer Dresser with Changing Top 551030-026

  • Page 1 Dresser With Changing Top Read all instructions For Questions or To Make Assembly Even before assembly and use. to Contact Us: Easier Watch Video Here! DeltaChildren.com/Help KEEP INSTRUCTIONS FOR FUTURE USE. If unable to access website, please email wcs@DeltaChildren.com Expect longer response times via email. Style #: ___________ ADULT ASSEMBLY REQUIRED...
  • Page 2 Cómoda con el cambiador Para facilitar más aun el Lea todas las instrucciones Para preguntar o para ensamblaje ver el video aquí contactarnos : antes de ensamblar y usar. DeltaChildren.com/Help MANTENGA LAS Si no puede acceder el sitio web, por INSTRUCCIONES PARA SU favor envíenos un email a USO FUTURO.
  • Page 4 B A B Y S A F E S L E E P T I P S Visit Deltachildren.Com/Pages/Crib-Safety-Tips for more information Read all warnings and DO NOT place any follow all instructions. items in the crib. The safest place for your Pillows and blankets have baby to sleep is in a caused infants to suffocate,...
  • Page 5 F U R N I T U R E S A F E T Y T I P S Visit Deltachildren.Com/Pages/Leaders-In-Safety for more information SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. NEVER open more than Read all warnings and one drawer at a time.
  • Page 6 C O N S E J O S P A R A U N S U E Ñ O S E G U R O P A R A L O S B E B É S Visite Deltachildren.Com/Pages/Crib-Safety-Tips para obtener más información Lea todas las NO coloque artículos advertencias y siga...
  • Page 7 C O N S E J O S D E S E G U R I D A D S O B R E M U E B L E S Visite Deltachildren.Com/Pages/Leaders-In-Safety para obtener más información PUEDEN PRODUCIRSE LESIONES GRAVES O MORTALES POR APLASTAMIENTO AL VOLCARSE MUEBLES.
  • Page 8 SAVE BIG WITH DELTA CHILDREN Visit Deltachildren.com To Start Shopping Welcome to the DELTA FAMILY Here's a Gift From Us To You USE CODE: DELTA10 Your Next Purchase From DeltaChildren.com *Exclusions Apply *Subject to Change REVIEW TO WIN $2500 R U L E S T O E N T E R “We LOVE, LOVE, LOVE this crib”...
  • Page 9 AHORRE MUCHO CON DELTA CHILDREN Deltachildren.com Para Comenzar A Comprar Visita Bienvenido a la FAMILIA DELTA Aquí Está Nuestro Regalo UTILICE EL CÓDIGO: Para Usted DELTA10 Su Próxima Compra En DeltaChildren.com *Exclusions Apply *Subject to Change CALIFIQUE EL PRODUCTO PARA GANAR $2500 REGLAS PARA PARTICIPAR CALIFIQUE EL PRODUCTO en la página web de la tienda donde haya sido comprado...

  • Page 10: Notes On Assembly

    NOTES ON CARE AND MAINTENANCE: - Do not scratch or chip the finish. - Inspect the product periodically, contact Delta Children's Products for replacement parts or questions. - Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.

  • Page 11: Información Sobre El Uso

    NOTAS SOBRE SU CUIDADO Y MANTENIMIENTO: - No arañe ni desconche el acabado. - Inspeccione el producto con regularidad, póngase en contacto con Delta Children’s Products para el recambio de partes o para formular preguntas. - No guarde el producto ni ninguna de sus partes a temperaturas ni en condiciones extremas como un ático caluroso o un sótano húmedo y frío.
  • Page 12 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT PIEZAS: ASEGÚRESE DE QUE TODAS LAS PIEZAS PRE-ENSAMBLADAS ESTÁN BIEN APRETADAS. Top Panel Top Front Rail x1 Drawer Rail x2 Panel superior Barra frontal superior Barra de la gaveta # 27415 # 27416 # 27417 Left Side x1...
  • Page 13 PARTS: HARDWARE KITS PART#27433 PIEZAS: EL KIT DE HERRAMIENTAS - PIEZA #27433 Barrel Nut x4 Tuercacilíndrica 75mm Bolt x2 Perno 75mm Crescent Washer x10 Arandela de media luna 50mm Bolt x16 30mm Bolt x4 Perno 50mm Perno 30mm Plastic Barrel Nut x15 Tuercacilíndricaplástica 40mm Screw x18 25mm Screw x18...
  • Page 14 Hardware System - Review Before Assembly Revise Antes De Armar- Elementos De Fijacion Y Ensamble 50mm Bolt Perno 50mm Crescent Washer Arandela de Media Luna 1. Insert the Dowels in the Rail into the holes in the Post. 1. Inserte los pasadores del Riel en los agujeros del Poste.
  • Page 15 Install (1) bolt and (1) crescent washer at a time. Tighten until it looks like the picture. Instale (1) perno y (1) Arandela de media luna al mismo tiempo. Apriételos hasta que quede como en la ilustración. Tighten the bolt with the ball end screwdriver.
  • Page 16 STEP 1 PASO 1 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Crescent Washer x5 50mm Bolt x5 Arandela de media luna Perno 50mm Φ6x30mm Dowel x8 Pasador Φ6x30mm M4 Ballend Screwdriver destornillador M4 con cabeza de bola M4 Allen Wrench Llave Allen M4 Fije la...
  • Page 17 JJ x 8...
  • Page 18 STEP 2 PASO 2 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Φ6x30mm Dowel x4 Pasador Φ6x30mm Install (2) Drawer Rails (Part J) as Instale (2) Barras de la Gaveta (Pieza J) shown with the rounded edges facing como se muestra con bordes redondead- the front using (4)
  • Page 19 JJ x 4...
  • Page 20 STEP 3 PASO 3 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Crescent Washer x5 50mm Bolt x5 Arandela de media luna Perno 50mm Φ6x30mm Dowel x12 Pasador Φ6x30mm M4 Ballend Screwdriver destornillador M4 con cabeza de bola M4 Allen Wrench Llave Allen M4 Fije la...
  • Page 21 JJ x 12...
  • Page 22 STEP 4 PASO 4 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso 50mm Bolt x2 Perno 50mm 75mm Bolt x2 Φ6x30mm Dowel x4 Perno 75mm Pasador Φ6x30mm M4 Ballend Screwdriver destornillador M4 con cabeza de bola M4 Allen Wrench Llave Allen M4 Insert (2) Dowels (Part JJ) into the top...
  • Page 24 STEP 5 PASO 5 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso 30mm Bolt x4 Perno 30mm M4 Ballend Screwdriver destornillador M4 con cabeza de bola M4 Allen Wrench Llave Allen M4 Attach the Top Panel using (4) 30mm Fije el Panel superior (4) pernos de 30 mm Bolts (Part AA).
  • Page 26 STEP 6 PASO 6 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Back Panel Screw x12 Phillips Screwdriver – Not included Tornillo de Panel Trasero Destornillidor Phillips – no incluido No drills necessary. Do not use power screwdriver.
  • Page 27 HH x 12...
  • Page 28 STEP 7 PASO 7 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Φ6x30mm Dowel x4 Pasador Φ6x30mm 50mm Bolt x2 Perno 50mm Barrel Nut x2 Tuercacilíndrica Flat Screwdriver – Not included M4 Allen Wrench destornillador de cabeza plana –...
  • Page 30 STEP 8 PASO 8 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Φ6x30mm Dowel x4 Pasador Φ6x30mm 50mm Bolt x2 Perno 50mm Barrel Nut x2 Tuercacilíndrica Flat Screwdriver – Not included M4 Allen Wrench destornillador de cabeza plana –...
  • Page 32 STEP 9 PASO 9 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso 40mm Screw x18 Tornillo 40mm Phillips Screwdriver – Not included Destornillidor Phillips – no incluido DRE SSE R UNIT LA COMMODE L A COMMODA 1.
  • Page 33 •Tighten all loose screws and bolts before each use. •The maximum recommended weight of the child is 30lbs for the changing unit. •Secure the changing unit only to Delta Children's Products item 551030. •The changing pad used should be 32" x 16" with a maximum thickness of 1".
  • Page 34 STEP 10 Tipover Restraint PASO 10 Protección contra volcamiento WARNING ADVERTENCIA Use of tip-over restraints may only El uso de herramientas de contención de reduce, but not eliminate, the risk of vuelcos tan solo puede reducir, pero no tip-over. eliminar, el riesgo de vuelco. Do not attempt to Screw into the No intente atornillar a paredes hechas wallboard only.
  • Page 35 NOTE: Be sure to attach any accessory items to case before completing this step. 7)Feed the Tipover Restarint through the hole as you place the dresser in it’s final position. NOTA: Asegúrese de fijar todos los accesorios a la carcasa antes de completar este paso.
  • Page 36 STEP 11 PASO 11 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso 25mm Screw x12 Phillips Screwdriver – Not included Tornillo 25mm Destornillidor Phillips – no incluido No drills necessary. Do not use power screwdriver. No hace falta taladrar.
  • Page 38 STEP 12 PASO 12 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Plastic Barrel Nut x15 Tuercacilíndricaplástica 40mm Screw x15 Tornillo 40mm Φ6x30mm Dowel x3 Pasador Φ6x30mm 25mm Screw x6 Tornillo 25mm Phillips Screwdriver – Not included No drills necessary.
  • Page 40 STEP 13 PASO 13 Parts and tools required to complete step Piezas y herramientas necesarias para completar este paso Knob Screw x6 Knob x6 Tornillo para Perilla Perilla Phillips Screwdriver – Not included Destornillidor Phillips – no incluido No drills necessary. Do not use power screwdriver.
  • Page 42 STEP 14 PASO 14 Install the drawers in the case body. Instale las gavetas en el cuerpo del mueble. Changing the locations may improve Cambiar las ubicaciones podría mejorar el fit or performance. funcionamiento.

  • Page 44: Limited Warranty

    Limited Warranty: This Delta Product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. If a product is defective during this period, we will at our option repair or replace the defective part or product. This limited warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
  • Page 45 SAFETY LEADERS Visit Deltachildren.Com/Pages/Leaders-In-Safety for more information SAFE MATERIALS PRODUCTS YOU CAN TRUST WE GO ABOVE & BEYOND...
  • Page 46 LÍDERES EN LA SEGURIDAD Visite Deltachildren.Com/Pages/Leaders-In-Safety para más información MATERIALES SEGUROS PRODUCTOS CONFIABLES ESTAMOS POR ENCIMA Y MÁS ALLÁ...
  • Page 47 POR QUÉ ELEGIR A DELTA CHILDREN? Visita Deltachildren.Com/Pages/Our-Story para más información DELTA LIDERA DELTA DONA A DELTA DELTA CRECE Más De 50 DELTA ESTÁ LE IMPORTA CON USTEDES Años De DEDICADA 1 de cada 2 10% de nuestros Seguridad, niños en los ingresos está...
  • Page 48 WHY CHOOSE DELTA CHILDREN? Visit Deltachildren.Com/Pages/Our-Story for more information DELTA IS DELTA DELTA DELTA DELTA GROWS Over DEDICATED LEADS GIVES CARES WITH YOU 50 Years Of Our Family-Run Safety, Style 1 Out Of 2 Children 10% Of Our Profits We Test Above &...
