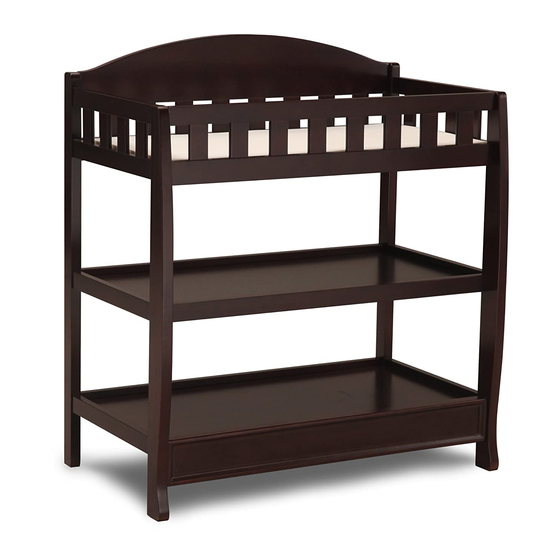

Changing table

Advertisement

Changing Table
THIS PRODUCT IS NOT INTENDED FOR
INSTITUTIONAL OR COMMERCIAL USE.
When contacting Delta Consumer Care please reference the above information. Before contacting Delta
Consumer Care please ensure that the information above matches the information found on the label on
the Top Shelf, please reference the information found on the product when contacting Delta Consumer
Care.
To register your product for important safety alerts and updates to your product please visit
www.DeltaChildren.com and click on Product Registration.
MAY 6, 2014, 24364, R1
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly, keep out of
reach of children until assembly is complete.
Consumer Care:
www.DeltaChildren.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Style #:
Date:
Conforms to
ASTM F2388
Safety Standards
Tele.212-645-9033
___________
Lot:
___________
___________
©2014 DELTA ENTERPRISE CORP.
B
REV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7530 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Children 7530

  • Page 1 ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete. Changing Table Consumer Care: www.DeltaChildren.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 Style #: ___________...
  • Page 2 - Do not scratch or chip the finish. - Inspect the product periodically, contact Delta Children's Products for replacement parts or questions. - Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.
  • Page 3 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. C. Back Top Rail x 1 Part # 24356 B. Right Side x 1 A. Left Side x 1 Part # 24355 Part # 24354 D. Front Top Rail x 1 Part # 24357 G.
  • Page 4 PARTS: HARDWARE KIT IS PART #24363-986 FOR COLOR 100 OR #24363-988 FOR COLOR 205, 207, 604 AND 607 OR #24363-989 FOR COLOR 001. SEE FRONT COVER. No drills necessary. L. M6 x 55 mm Bolt x 12 Do not use power Part # 5468 screwdriver.
  • Page 5 Section 1: Changing Table Assembly Step 1 Parts and tools required to complete step. C. Back Top Rail x 1 M4 Allen Wrench Supplied D. Front Top Rail x 1 R. M6x17mm Barrel Nut x 6 E. Shelf Rail x 3 A.
  • Page 6 Section 1: Changing Table Assembly Step 2 Parts and tools required to complete step. G. Top Shelf x 1 H. Bottom Shelf x 2 From Step 1 Lay the Left Side on the floor, rails up. Slide the Top Shelf (Part G) in the grooves on the Front Top Rail and Back Top Rail, into the groove on the Left Side, Slide (2) Bottom Shelves (Part H) in the grooves on the Shelf Rails and Front Bottom Rail, into the grooves on the Left Side as shown.
  • Page 7 Section 1: Changing Table Assembly Step 3 Parts and tools required to complete step. From Step 2 M4 Allen Wrench Supplied R. M6x17mm Barrel Nut x 6 B. Right Side x 1 L. M6 x 55 mm Bolt x 6 Attach (1) Right Side (Part B) to the assembly from step 2 with (6) M6x55 mm Bolts (Part L) and (6) M6x17mm Barrel Nuts (Part R) using the M4 Allen Wrench as shown.
  • Page 8 Section 1: Changing Table Assembly Step 4 Parts and tools required to complete step. M. M6 x 25 mm Bolt x 2 P. Nut x 2 N. Nylon Washer x 4 M4 Allen Wrench Supplied Pliers or Adjustable K. Restraint Harness x 1 Wrench (Not Supplied) From Step 3 Align the hole in the end of the strap of the Restraint Harness (Part K) with the hole in the Top Shelf.
  • Page 9 Section 1: Changing Table Assembly Step 5 Parts and tools required to complete step. J. Changer Pad x 1 From Step 4 Place the Changer Pad (Part J) onto the Top Shelf (Part G) on top of the attached Strap from step 4, Be sure the buckle on the strap is over the Pad as shown.
  • Page 10 Section 1: Changing Table Assembly Final RESTRAINT HARNESS SYSTEM USE: . PLACE THE INFANT ON THE CHANGING TABLE FOAM PAD. . POSITION THE RESTRAINT HARNESS OVER THE MIDDLE OF THE INFANT’S TORSO AND INSERT THE BUCKLED ENDS INTO EACH OTHER UNTIL THE LOCK SHUT WITH A CLICK.
  • Page 11 Style Number and Lot Number available. Use the space below to make note of those numbers. They can be found on the label on the Top Shelf. STYLE No: 7530 COLOR Lot No. : _______________________ Pack Date:_____________________...
