Bend-Pak EXCEL Series Installation And Operation Manual page 8

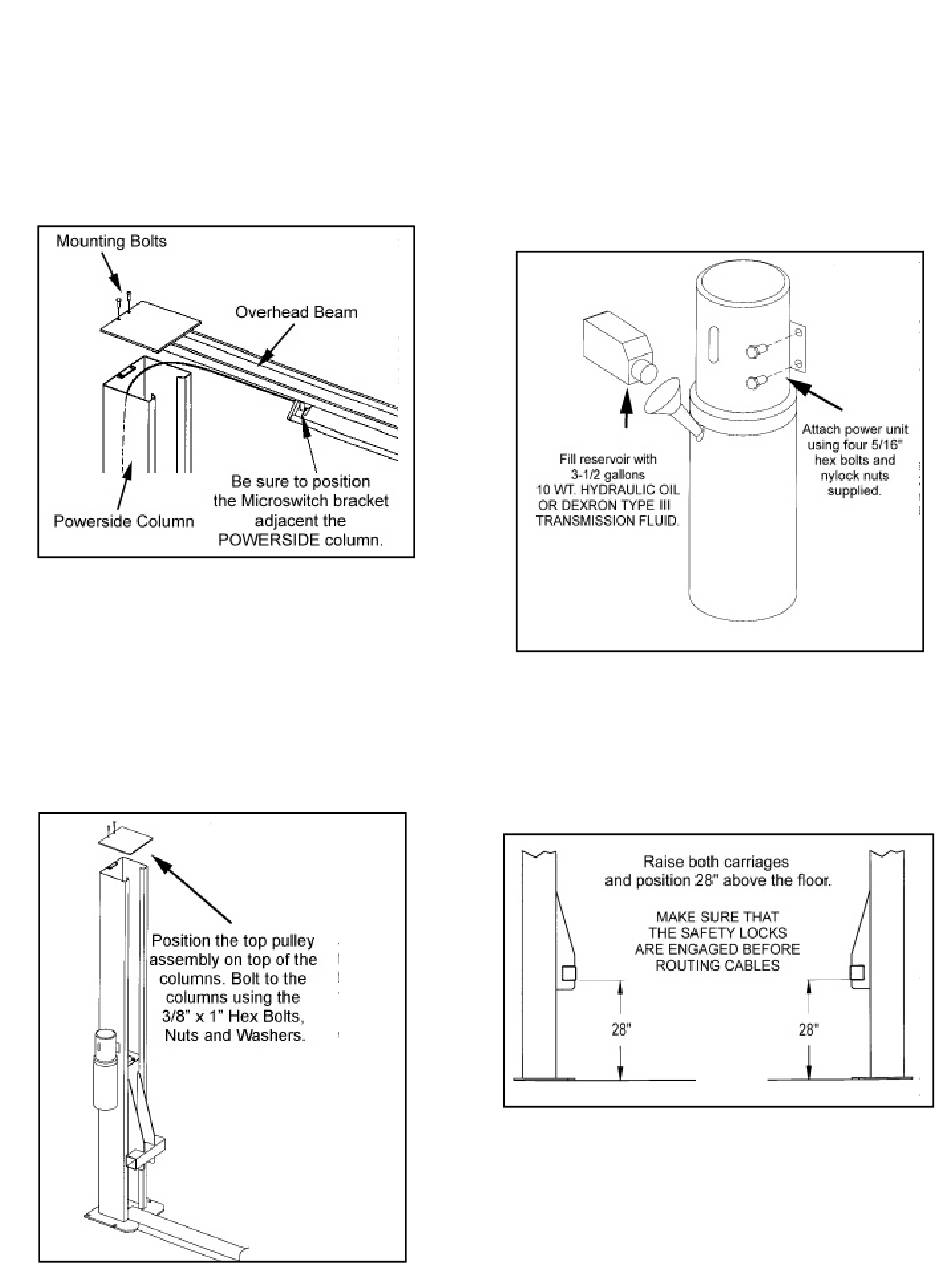

STEP SIX
( Mounting the OVERHEAD BEAM. )
Clearfloor Models Only
1. Using a lifting devise, raise the OVERHEAD
beam in position on top of the columns. Bolt to
the columns using the 3/8" x 1" Hex Bolts, Nuts
and Washers. ( See Fig. 5 )
STEP SEVEN
( Mounting the TOP PULLEY ASSEMBLY. )
Floorplate Models Only
1. Using a lifting devise, raise the OVERHEAD
beam in position on top of the columns. Bolt to
the columns using the 3/8" x 1" Hex Bolts, Nuts
and Washers. ( See Fig. 6 )
Fig. 5
Fig. 6
STEP EIGHT
( Mounting The POWER UNIT )
1. Attach the power unit to the POWERSIDE
COLUMN using four 5/16" hex bolts and nylock
nuts supplied. Fill the reservoir with 10 WT.
HYDRAULIC OIL OR DEXRON TYPE III ATF.
Make sure the funnel used to fill the power unit is
clean. ( See Fig. 7 )
Fig 7
STEP NINE
( Routing The EQUALIZER CABLES )
1. Raise and lock each carriage approximately
28" above the ground. ( See Fig. 8 )
2. Make sure that the safety locks on each
column are fully engaged before attempting to
route equalizer cables. Carriages must be equal
height from the floor before proceeding.
Fig 8
