Floorplan Layout - Bend-Pak EXCEL Series Installation And Operation Manual

MODEL
XL-9
XL-9X
XL-9C
XL-9CX
XL-9AC
XL-9ACX
PR-12F
STEP THREE
( Site Layout )
1. Determine which side will be the approach side.
2. Now determine which side you prefer the power
unit to be located on. The POWERSIDE column
has the power-unit mounting bracket attached to
the side. ( See diagram above for power unit
location. )
3. Once a location is determined, use a carpenters
chalk line to layout a grid for the post locations.
Keep all dimensions and squareness within 1/8"
or malfunctioning of the lift will occur.

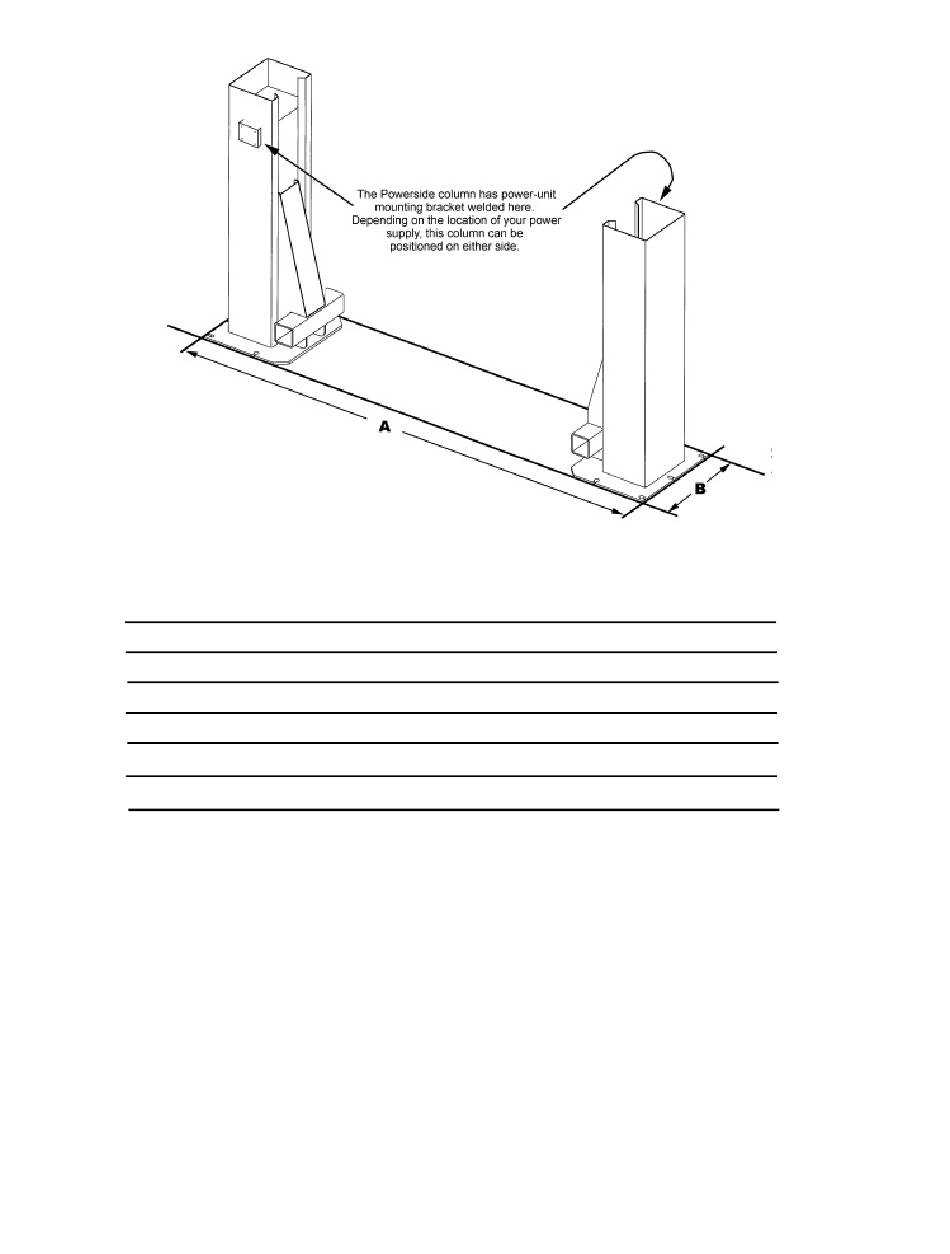

FLOORPLAN
LAYOUT
LAYOUT DIMENSIONS
A
132" / 3353mm
145" / 3683mm
132" / 3353mm
145" / 3683mm
132" / 3353mm
145" / 3683mm
155" / 3937mm
4. After the post locations are properly marked,
use a chalk or crayon to make an outline of the
posts on the floor at each location using the post
baseplates as a template.
5. Double check all dimensions and make sure
that the layout is perfectly square.
6. Before continuing with the installation it is
helpful to stand the posts up at their respective
locations and get a visual of the shop, aisles and
other clearances. Also, this is a good time to drive
a vehicle into position and check for adequate
clearance.
B
17" / 432mm
17" / 432mm
17" / 432mm
17" / 432mm
17" / 432mm
17" / 432mm
28" / 711mm
