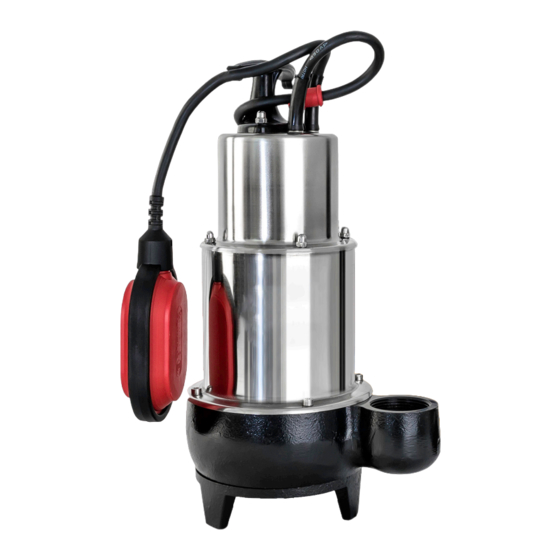

- Page 1 INDUSTRIAL CUTTER PUMP EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RCE90 CODE: 21293 www.reefe.com.au...
- Page 2 COMPONENTS & MATERIALS POSITION COMPONENT MATERIAL Motor Body INOX Stainless Steel Hose Tail Noryl PPO Axial Seal Ceramic Silicon Pump Case INOX Stainless Steel www.reefe.com.au...
-
Page 3: Parts List
30 Nut + Washer 12 Mechanical Seal 31 O Ring 13 Washer 32 Screw 14 Pin 33 Handle 15 Impeller 34 Nut 16 Nut 35 O Ring 17 Cutting Disc 36 Connection Plug 18 Leg 37 Current Protection Relay 19 Screw www.reefe.com.au... - Page 4 If large quantities of earth are sucked up, damage resulting from erosion in the pump can lead to electrical leakage and shock To prevent the pump strainer stand from becoming submerged in mud, causing it to suck in debris, mount it on a blaock or firm base www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 5: Electrical Circuit Diagrams
THREE PHASE PUMPS must be connected to an external motor starter fitted with a contactor and overload. The nominal current of the motor starter must correspond to the electrical data marked on the pump nameplate. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 6: Before Starting
Continuing to operate the pump under abnormal conditions may result in electrical shock, fire property damage injury or death. 2 If the test operation reveals no problems, continue operating the pump. WARNING Do not operate the pump in dry pit, well, trench etc. The pump may become very hot during operation. To avoid being burned, be careful not to contact the pump accidentally Make sure no extraneous objects such as pins, nails, or other metal objects, cloth wipes, rocks, wood, napkins or sanitary items or products of this nature are sucked into the pump. These can damage the pump or cause it to malfunction, and can result in electrical shock or electrical leakage In case of a power outage, turn off the power to the pump to avoid having it start unexpectedly when the power is restored, pre- senting serious danger to people in the vicinity. Pay careful attention to the water level while the pump is operating. Dry operation may cause the pump to malfunction. NOTE: See page ..., “Operating Water LEvel” for water level necessary for operation Sharp bends in the hose, especially near it’s base may cause air pockets to form resulting in idle operation. Lessen the degree of bending while continuing to operate the pump. CAUTION Do not operate the pump below C.W.L (Continuous running water level.) Failure to observe this condition may result in damage to pump, electrical leakage or electrical shock. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... - Page 7 NOTE: Used oil and other waste products should be disposed of by a qualified agent, in accord with applicable laws. The Oil Plug packing and O-Ring should be replaced each time the oil is inspected or changed. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 8: Troubleshooting
Disassemble and remove foreign matter Replace bearing Pump Vibrates; excessive Shut off valve closed too far Open shut off (valve) operating noise. Piping resonates Improve pipe mounting Reverse rotation Correct rotation (see page 7) www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... - Page 9 P: 1800 807 604 Ascento Group Australia AI.062020 ©...
- Page 10 [ ] The pipes and connections have been checked for leaks [ ] The pump is protected from sunlight, with a suitable vented cover or enclosure. Signed by the Installer:________________________________________ Date Installed: www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 11: Warranty Conditions
Ascento Group Australia. E&EO. PRIVACY STATEMENT: We will not use your name, address, phone or fax number, or email address for marketing, nor sell or provide it to any other third party for the purpose of marketing. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
