Reefe RPS57E Exploded View & Instruction Manual
Multistage submersible pressure pump
Hide thumbs
Also See for RPS57E:
- Exploded view & instruction manual (14 pages) ,
- Exploded view & instruction manual (14 pages)
Subscribe to Our Youtube Channel
Related Manuals for Reefe RPS57E
Summary of Contents for Reefe RPS57E

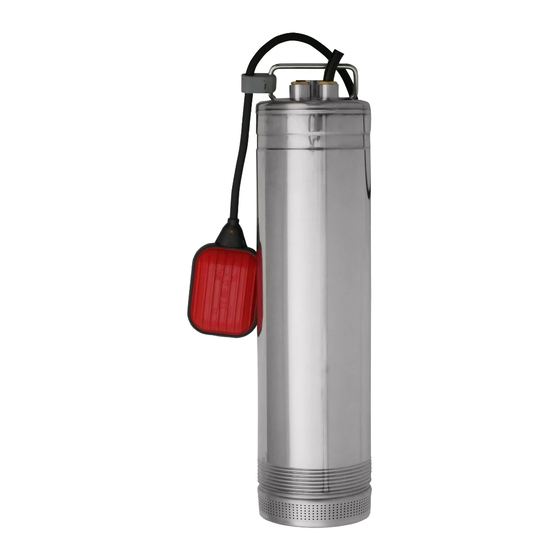

- Page 1 MULTISTAGE SUBMERSIBLE PRESSURE PUMP EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RPS57E CODE: 20739 www.reefe.com.au...
-
Page 2: Parts List
PARTS LIST & EXPLODED VIEW Refer next page for componentry listing www.reefe.com.au... - Page 3 22 Cover 46 Cable Gland 23 O-Ring 47 Cable 24 Screw POSITION COMPONENT MATERIAL Pump Body & Handle Stainless Steel 304 Motor Body Stainless Steel 304 Mechanical Seal Alumina/Graphite Lubricated Motor Shaft Stainless Steel 304 Impellers & Diffusers Re-enforced PPO www.reefe.com.au...
-
Page 4: Warranty
WARRANTY & INSTRUCTION MANUAL RPS34E & RPS57E MULTISTAGE SUBMERSIBLE PUMPS **PLEASE LEAVE THIS GUIDE IN A SAFE PLACE FOR THE OWNER** RPS34E RPS57E Flow (Litres/Minute) POWER 240V RATED MAXIMUM SIZE NO. OF NO. OF CABLE CODE MODEL OUTLET DIA X H... - Page 5 Tank, set pressure tank to 70% of maximum head pressure of pump (displayed in performance data table) 18)Some air can be pumped when the tank is low in water – this is not a fault it is normal operation. NO RCD/SAFETY SWITCH? DO NOT INSTALL PUMPS! *Continued on page 8 www.reefe.com.au...
-
Page 6: Correct Installation
TAPE ON MI FITTING WARNING! GLUE DRIPPED INSIDE PUMP VOIDS WARRANTY CORRECT INSTALLATION RECOMMENDATION: PRESSURE TANK PIPEWORK: DISCHARGE PIPEWORK MUST NOT BE SMALLER THAN 25MM (OR THE OUTLET OF THE PUMP.) IF UNSURE, CONFIRM WITH A CONSULTANT FOR A SUITABLE RECOMMENDATION www.reefe.com.au... - Page 7 SERVICE DOES N SERVICE DOES NOT COVER COST OF COVER COST OF MOVING TANK MOVING TANK NEVER LIFT THE PUMP FROM THE CABLE LIFT THE PUMP USING A CHAIN/ROPE THROUGH THE HANDLE NEVER LIFT THE PUMP FROM THE CABLE www.reefe.com.au...
- Page 8 It must NOT be used as a continuous duty fountain pump, or to pump dirty water, or to pump liquids other than clean water. WARNING! It must never be used in bodies of water used for swimming or bathing or in animal drinking containers. www.reefe.com.au...
- Page 9 – even a slight leak will cause the pump to cycle on/off on/off > if there is water leaking inside the tank have the original installer return and rectify this, it is not covered by the pump warranty as it is an installation issue. www.reefe.com.au...
- Page 10 ☐ The pipes and connections and the barrel-union on the pump, and toilet cisterns (if connected) have been check for leaks WARRANTY RECORD - FILL IN AND RETAIN THIS WITH YOUR ORIGINAL PURCHASE RECEIPT PURCHASER NAME:......................PHONE NO................. DATE OF PURCHASE..../..../....DEALER/STORE NAME......................DEALER SUBURB/TOWN....................PHONE NO................BRAND & MODEL NUMBER OF PUMP................SERIAL/BATCH NO............www.reefe.com.au...
- Page 11 If an exact replacement is not available, the closest equivalent product will be supplied at our discretion. Do not send the product to us unless we ask you to do so WARRANTY PERIODS DOMESTIC USE; REEFE EXTERNAL CONSTANT PRESSURE PUMPS: 3 Years Rain&Town EXTERNAL CONSTANT PRESSURE PUMPS:...
