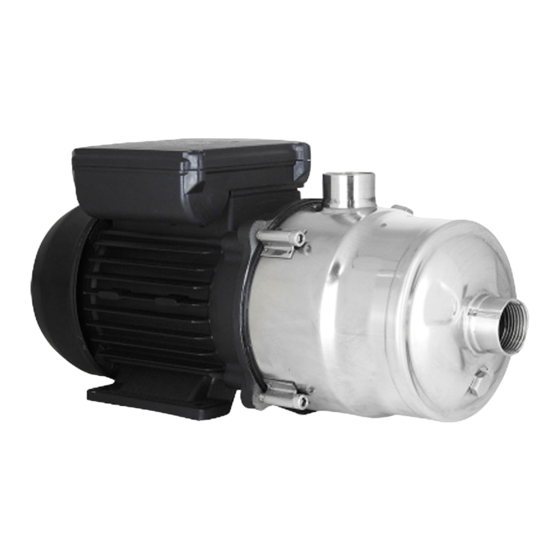

INSTRUCTION |

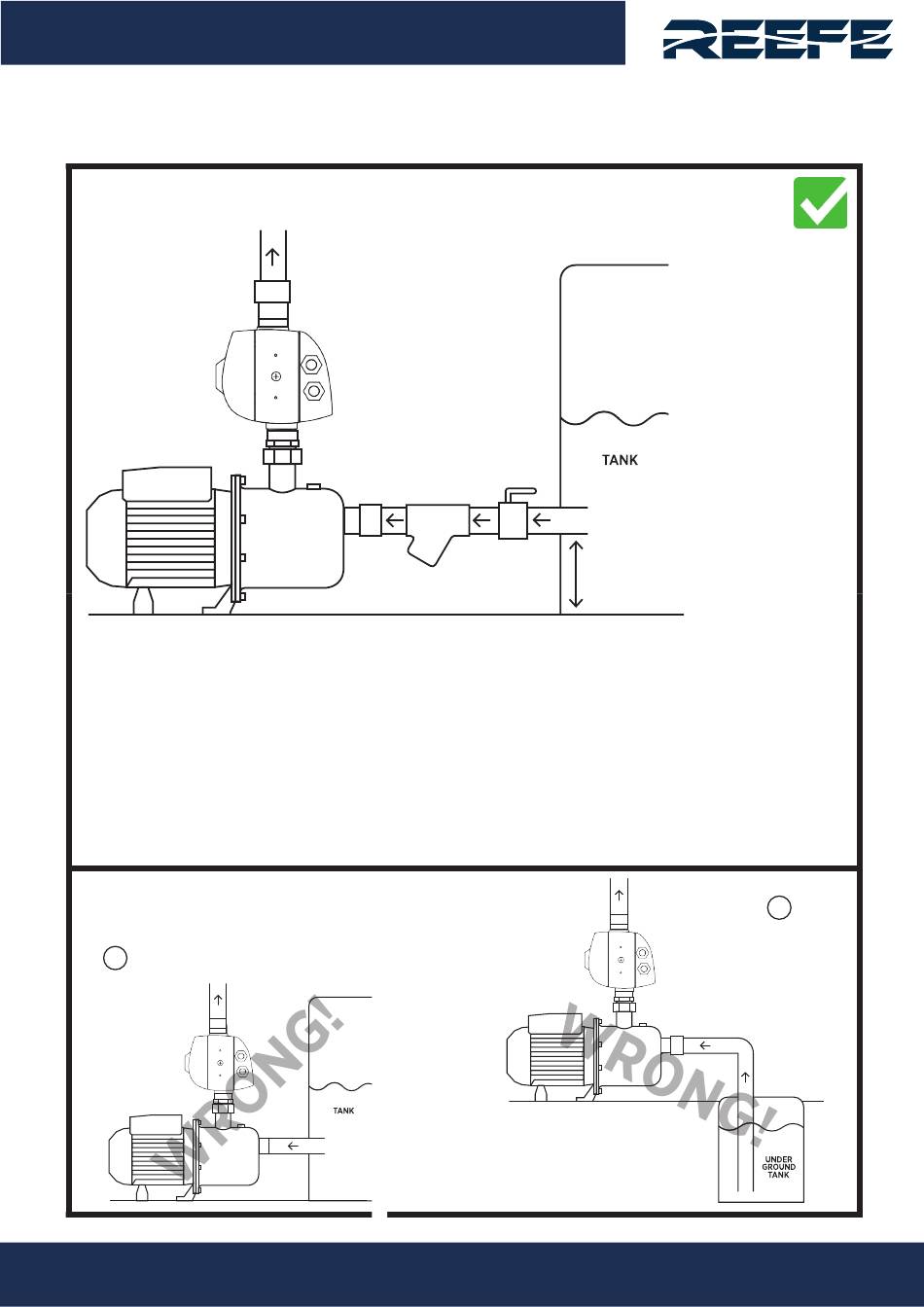

CORRECT INSTALLATIONS
ALWAYS INSTALL YOUR PUMP ON A LEVEL CONCRETE OR PAVED SURFACE!
KEY
(1) BARREL UNION
(2) Y-STRAINER OR PRE-FILTER
(3) BALL VALVE OR GATE VALVE
TIP! CLEAN THE Y-STRAINER MONTHLY TO ENSURE PEAK PERFORMANCE.
SIMPLY UNDO THE BUNG AND LET IT FLUSH OUT. MAKE SURE YOU RE-FIT THE
MESH FILTER.
TIP! IF PUMP STARTS FREQUENTLY, CHECK TOILET CISTERNS, THEY ARE
PROBABLY LEAKING.
IMPORTANT! MULTISTAGE PUMPS MUST NOT BE USED WITH SUCTION LIFT.
INCORRECT INSTALLATIONS
INCORRECT! PUMP IS INSTALLED
!
WITHOUT BARREL UNION'S, A
Y-STRAINER & A BALL VALVE.
DIAGRAM 3
Ascento Group Australia
AI.062020
©
INSTALLATION MANUAL
DIAGRAM 1
www.reefe.com.au
P U M P S A U S T R A L I A
TIP!
PRESSURE TANKS
CAN SAVE YOU
MONEY AS THE
PUMP DOES NOT
HAVE TO START SO
OFTEN.
!
INCORRECT!
PUMP IS
INSTALLED
WITHOUT A
CHECKVALVE OR
A FOOT VALVE.
DIAGRAM 4
P: 1800 807 604
B E T T E R • F A S T E R • E A S I E R
B E T T E R • F A S T E R • E A S I E R
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reefe RHMS92-120.T
Summary of Contents for Reefe RHMS92-120.T
- Page 1 INCORRECT INSTALLATIONS INCORRECT! INCORRECT! PUMP IS INSTALLED PUMP IS WITHOUT BARREL UNION’S, A INSTALLED Y-STRAINER & A BALL VALVE. WITHOUT A CHECKVALVE OR A FOOT VALVE. DIAGRAM 3 DIAGRAM 4 www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
- Page 2 NOT BE USED WITH SUCTION LIFT. INCORRECT! NO FOOT VALVE! FOR INSTALLATIONS WHERE THE PUMP IS ABOVE THE OUTLET OF THE TANK, ALWAYS USE A FOOT VALVE IN THE TANK. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
- Page 3 ALWAYS DISCONNECT THE PUMP FROM POWER WHEN INSTALLING, AND WHILE SERVICING OR REPAIRING. DIAGRAM 11 DANGER! ENSURE THE PUMP IS CONNECTED TO A DEDICATED POWER OUTLET THAT IS PROTECTED BY A SAFETY SWITCH (RCD). www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
- Page 4 Electrical and Plumbing Standards and Local Council Regulations, and that the product is suitable for their purpose of use. Warranty does not include rectification of incorrect installation and/or problems caused by incorrect installation. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 5: Performance Data
If noise is likely to cause problems, we recommend that you use a MULTISTAGE Pump, and install the pump AWAY from bedrooms. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... - Page 6 Note that if the pump starts and stops more than 7 times within 2 minutes, it may switch itself off and you will need to press the restart button to reactivate it. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
- Page 7 WARNING! Multistage pumps are not recommended to be used in suction lift applications. Contact REEFE Pumps technicians on 1800 807 604 if you have any questions in relation to suction lift installation.
- Page 8 6. If a check valve has been installed directly on the discharge of the pump controller, this may cause the pump controller to malfunction > Move the check valve to a different position. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 9: Electrical Precautions
] The pump is protected from sunlight & rain, with a suitable vented pump-cover or enclosure. ] The Owner has been shown how to re-prime and re-set the pump (re-fill the pump with water if it runs dry) Signed by the Installer:________________________________________ Date Installed: www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
