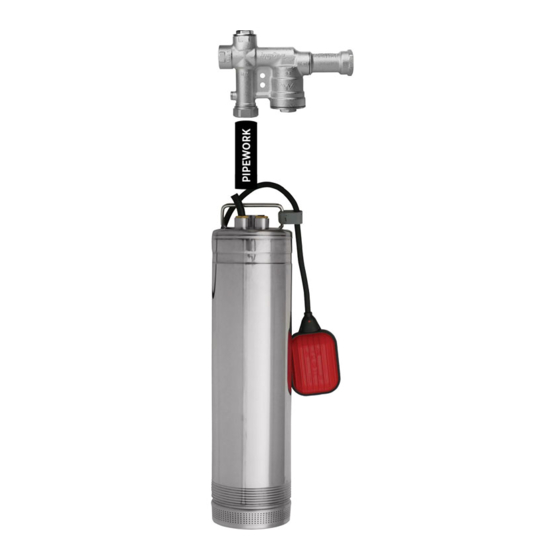

- Page 1 SUBMERSIBLE RAIN MAINS SYSTEM EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RM5000-5 PUMP: RPS57E CODE: 22856 www.reefe.com.au...
-
Page 2: Parts List
PARTS LIST & EXPLODED VIEW Refer next page for componentry listing www.reefe.com.au... - Page 3 Motor Body Stainless Steel 304 Mechanical Seal Alumina/Graphite Lubricated Motor Shaft Stainless Steel 304 Impellers & Diffusers Re-enforced PPO RM1400-2 Body DZR Brass 1/8 BSP Plug Stainless Steel Brass Tail DZR Brass End Cap DZR Brass DN25 Nut Brass www.reefe.com.au...
-
Page 4: Warranty
AUSTRALIAN STANDARD: WMTS-477 WaterMark Quality System Doc # RQS.1059 Ver.20190925 ADDITIONAL OUTLET PORT DUAL CHECK VALVE MAINS WATER DISCHARGE RM BODY 1/8 BSP PLUG END CAP BRASS TAIL DN25 NUT www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... -
Page 5: Installation Instructions
Submersible Pump Pump Pump with built in controller Submersible Pump with built in controller Fig. 3 Fig. 3 www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 © To House Mains Water In To House Mains Water In... -
Page 6: Specifications
The above conditions form part of the instructions and do not over-ride your statutory rights. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 7: Incorrect Installation
CONNECTION DOES NOT DEPTH OF PUMP: 5m WORK LOOSE USE 15+ WRAPS OF THREAD SEAL TAPE ON MI FITTING WARNING! GLUE DRIPPED INSIDE PUMP VOIDS WARRANTY INCORRECT INSTALLATION INCORRECT INSTALLATION MAINS HOUSE www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... - Page 8 COVER COST OF MOVING TANK MOVING TANK NEVER LIFT THE PUMP FROM THE CABLE LIFT THE PUMP USING A CORD THROUGH THE HANDLE NEVER LIFT THE PUMP FROM THE CABLE www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
-
Page 9: How The System Works
& the installation, also see the important note below) 14. IMPORTANT! FOR PUMPS WITH FLOATS: The water level will need to be 250mm to 800mm high inside the tank, for the pump to start. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 10: Installation & Checklist
If you experience any problems, refer to the troubleshooting guide first, before calling for warranty service. A call-out fee will apply for all field … service work if it is found not to be a Warranty problem. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 11: Things To Check Before You Call For Service
Turn the pump off, and turn off the valve between the RM1500-2 Valves and the pump (Ball-valve or Gate-valve) b) Then ensure all water outlets in the house and garden etc are turned off, ensure that any garden taps are off and not dripping. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 12: Operating & Maintenance
6. AFTER SALES SERVICE: Not normally necessary, however if you have any queries please call 1800 807 604 7. RECOMMENDED PRESSURES: A pressure reduction valve must be fitted if the mains supply exceeds 500kPa www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... - Page 13 ASCENTO GROUP AUSTRALIA 37 Export St, Lytton, Brisbane, QLD 4178 | P: 1800 807 604 • E: sales@ascento.com.au • W: www.ascento.com.au © COPYRIGHT 2020 No part of this publication is to be copied stored or distributed in any manner or form without the prior written permission of Ascento Group Australia. E&EO. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
