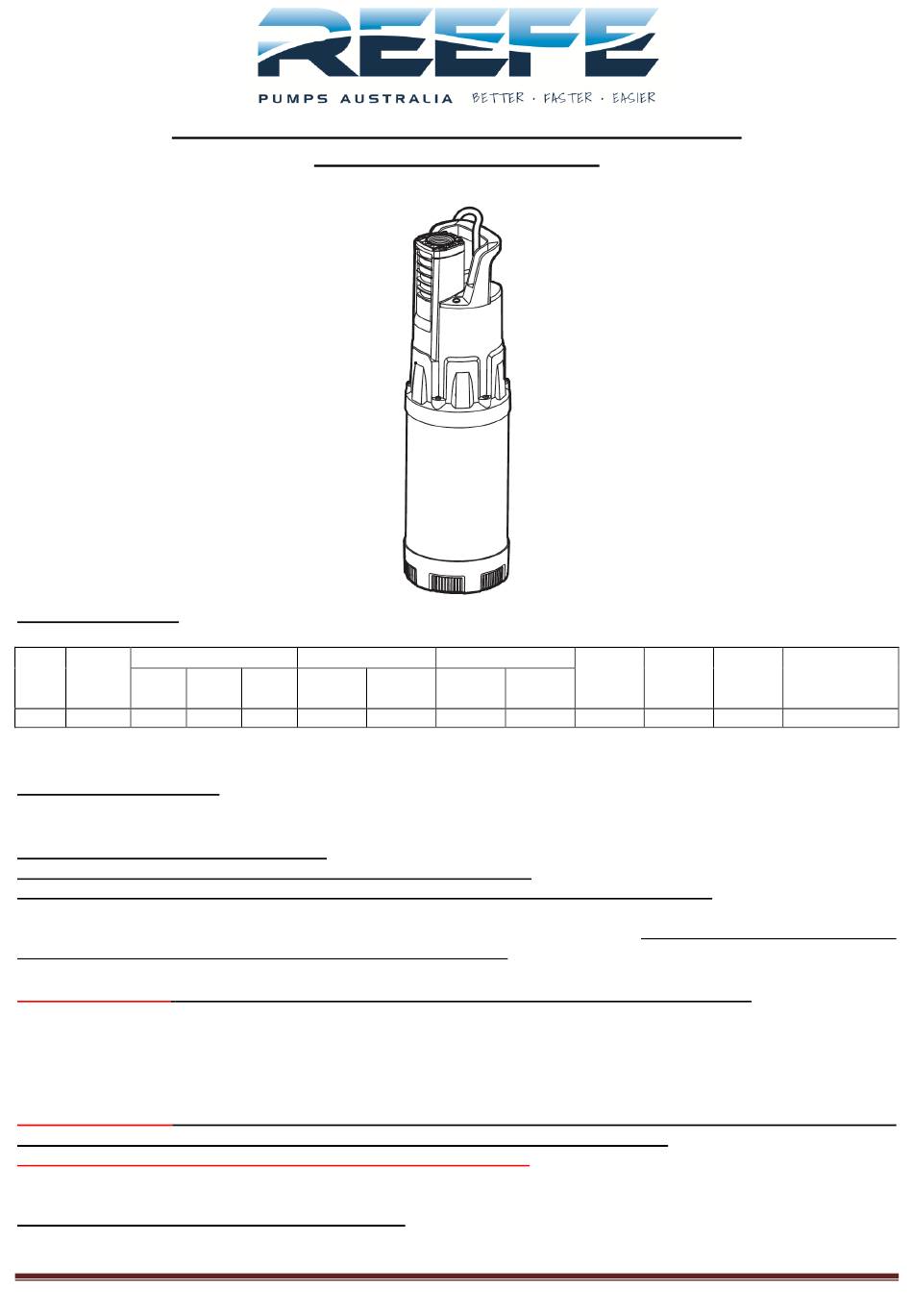

INSTRUCTION MANUAL & WARRANTY – REEFE RSMP SERIES
** Please leave this guide in a safe place for the owner **

PERFORMANCE DATA

POWER
CODE MODEL
AMPS P1 (W) P2 (W)
19771 RSMP35 3.7
NOTE: Performance data quoted is generally from test data and does not take into account factors in the installation such as loss of pressure and flow due to pipework & pipe-fittings &
valves.

INSTALLATION GUIDELINES

Please read and follow the instructions. Warranty is voided if the instructions are not followed. Use for CLEAN FRESH WATER only.
1.IMPORTANT NOTICE FOR INSTALLER
You MUST use 25mm or larger pipe connected to the discharge of the pump
DO NOT CONNECT 13/18/20mm COPPER PIPE or 13/18/20mm POLY PIPE DIRECTLY TO THIS PUMP it is recommended to use
25mm Poly or PVC pipework. Try to minimise the amount of bends in the delivery pipe. Pipes of insufficient diameter connected to
the pump will severely restrict the performance of the pump, use more electricity, and may cause the pump to cycle on/off
frequently, this is not covered by warranty as it is caused by the installer. The recommendation is for delivery pipe to be 25mm ID
for the majority of the pipeline.
VERY IMPORTANT:
Ensure that the connection to the outlet of the pump is robust and sealed VERY well. Use at least 12 layers
of thread-seal tape on the male thread. DO NOT USE glue unless you are CERTAIN that you will not drip glue inside the pump. Glue
inside the pump will lead to improper function which will not be covered by warranty. Also do NOT fit threaded fitting to the pump
then glue pipe to that fitting as glue will drip inside the pump. Glue the fitting and allow it to dry BEFORE attaching the threaded
fitting. If the fitting leaks, it will cause cycling of the pump, which is not covered by warranty – this is the installer's responsibility.
Also ensure that the pump will not knock against the side of the tank during start-up, or operation or stopping.
VERY IMPORTANT:
A "First Flush Diverter" or similar, AND a filtering screen, MUST be installed to prevent debris particles
entering the rainwater tank, all warranty is void if this is not included in the original installation.

IRRIGATION USE - MANDATORY REQUIREMENTS FOR ALL INSTALLATIONS:

irrigation, you must fit an 18L or larger pressure tank. Air pressure must be set at 70% of maximum pump pressure (RSMP35 =
245kPa). Tank is simply fitted to the discharge pipework with a "tee", anywhere between the pump and the first point of discharge.
IMPORTANT NOTICE RE SHORT PIPEWORK CONNECTION: If these pumps are fitted to short lengths of pipework (for example Pump
> Garden Tap and nothing else) they will cycle a few times after each use. THIS IS NOT A WARRANTY FAULT, it is a normal function of
the internal pump controller releasing excess pressure when there is a short discharge pipe.
ASCENTO GROUP AUSTRALIA 37 Export Street Lytton Brisbane QLD 4178 P: 1800 807 604 • F: 1800 807 609 • E: sales@ascento.com.au

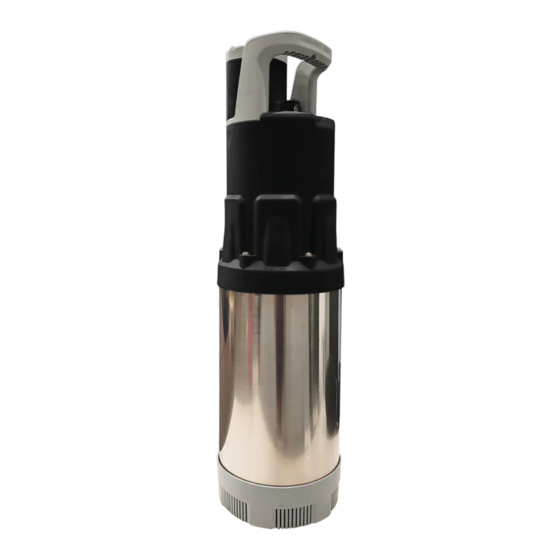

Submersible Multistage Pump
RATED
FLOW
(L/min)
870 600 40
MAXIMUM
HEAD FLOW HEAD
(m) (L/min) (m)
25 105 35
For any installation of these pumps that is supplying
WATER
CABLE OUTLET
OUTLET
LENGTH (mm)
NO. TAPS
4 - 6 10m 25FBSP
SIZE L x W x H
(mm)
150 x 150 x 510
