SPLIT SYSTEM AIR CONDITIONER
INSTALLATION INSTRUCTIONS
S4BD SERIES - 018, 024, 030, 036, 042, 048, & 060 (1.5, 2, 2.5, 3, 3.5, 4, & 5 Ton)
IMPORTANT SAFETY INFORMATION ................. 2
AIR CONDITIONER INSTALLATION .................... 3
General Information .............................................. 3
Before You Install this Unit ..................................... 3
Locating the Air conditioner................................... 3
Packaging Removal .............................................. 3
Ground Level ......................................................... 3
Roof Mount............................................................ 3
Indoor & Outdoor Unit ........................................... 4
ELECTRICAL WIRING ........................................... 4
Pre - Electrical Checklist ....................................... 4
Line Voltage ........................................................... 4
Diagnostics Module ..................... 5
24VAC Power Wiring ........................................... 5
Thermostat Demand Wiring ................................ 5
Interpreting the Diagnostic LED's ....................... 5
LED Description .................................................. 6
Grounding ............................................................. 6
Thermostat Low / Voltage Connections ................. 6
AIR CONDITIONER MAINTENANCE .................... 6
STARTUP & ADJUSTMENTS ............................... 7
Pre - Start Checklist .............................................. 7
Start-up Procedures .............................................. 7
Air Circulation - Indoor Blower .............................. 7
System Cooling ..................................................... 7
System Heating ..................................................... 7
It is your responsibility to know this product better than your customer. This includes being able to install the product
according to strict safety guidelines and instructing the customer on how to operate and maintain the equipment for
the life of the product. Safety should always be the deciding factor when installing this product and using common
sense plays an important role as well. Pay attention to all safety warnings and any other special notes highlighted
in the manual. Improper installation of the furnace or failure to follow safety warnings could result in serious injury,
death, or property damage.
These instructions are primarily intended to assist qualified individuals experienced in the proper installation of this
appliance. Some local codes require licensed installation/service personnel for this type of equipment. Please read all
instructions carefully before starting the installation. Return these instructions to the customer's package for future
reference.
DO NOT DESTROY. PLEASE READ CAREFULLY & KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
REFRIGERANT CHARGING ................................. 7
S4BD CHARGING CHARTS ................................. 8
Figure 3. Charging Chart for 1.5 Ton Units .......... 8
Figure 4. Charging Chart for 2 Ton Units ............. 9
Figure 5. Charging Chart for 2.5 Ton Units .......... 9
Figure 6. Charging Chart for 3 Ton Units ........... 10
Figure 7. Charging Chart for 3.5 Ton Units ........ 10
Figure 8. Charging Chart for 4 Ton Units ........... 11
Figure 9. Charging Chart for 5 Ton Units ........... 11
S4BD CHARGING TABLES ................................. 12
Table 3. Charging Table for 1.5 Ton Units .......... 12
Table 4. Charging Table for 2 Ton Units ............. 12
Table 5. Charging Table for 2.5 Ton Units .......... 13
Table 6. Charging Table for 3 Ton Units ............. 13
Table 7. Charging Table for 3.5 Ton Units .......... 14
Table 8. Charging Table for 4 Ton Units ............. 14
Table 9. Charging Table for 5 Ton Units ............. 15
ELECTRICAL DIAGRAMS & TABLES ................ 16
Figure 10. W.D., Single Phase (1.5 - 5 Ton) ...... 16
Table 10. Comfort Alert LED Diagnostics .......... 17
Table 11. Module Wiring Troubleshooting .......... 18
INSTALLATION CHECKLIST .............................. 20
REPLACEMENT PARTS ...................................... 20
IMPORTANT
ATTENTION INSTALLERS:
13 SEER, SINGLE PHASE MODELS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nortek MSA4BD-KA
Summary of Contents for Nortek MSA4BD-KA
-
Page 1: Table Of Contents

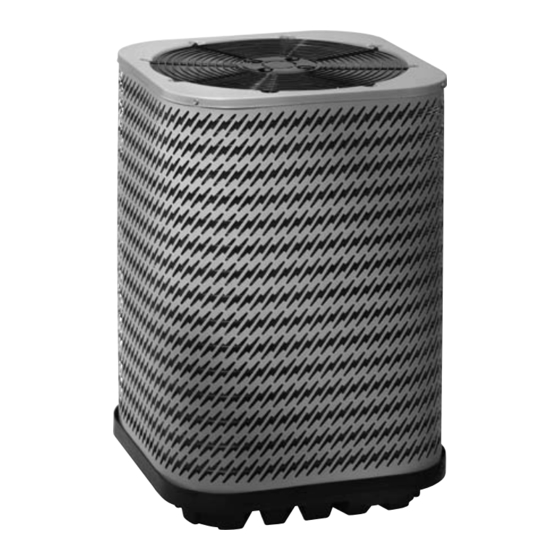

SPLIT SYSTEM AIR CONDITIONER 13 SEER, SINGLE PHASE MODELS INSTALLATION INSTRUCTIONS S4BD SERIES - 018, 024, 030, 036, 042, 048, & 060 (1.5, 2, 2.5, 3, 3.5, 4, & 5 Ton) IMPORTANT SAFETY INFORMATION ....2 REFRIGERANT CHARGING ......... 7 Charging the Unit in AC Mode AIR CONDITIONER INSTALLATION .... -
