CK-1P9
Promotion-On-Hold Module
For the Panasonic KX-TG9581B telephone
04/20/15
Introduction
Thank you for purchasing the Skutch CK- 1P9
Promotion-On-Hold Module for the Panasonic KX-
TG9581B two line expanded phone system. This unit
ONLY works with one specific KX-TG9581B BASE
phone, and on all of the cordless units, KX- TGA950
units, that are registered to that specific BASE unit. It
will NOT supply promotion-on-hold to Cell Phone
calls that are Linked to this phone. This phone allows
you to register a maximum of 12 handsets to the
BASE phone. The CK-1P9 is a true plug and play
device. This unit requires an external music on hold
source to provide the music on hold audio. When a
call is placed ON HOLD or TRANSFERRED to
another phone, from the base or any of the phone's
cordless units, the ON HOLD caller will hear the
music on hold audio. When the line is re-answered,
the music on hold audio automatically stops. It's that
simple!
Installation
The SENSOR Board MUST be attached to the BASE phone or this unit will not function. The
Sensor board MUST completely cover the LINE 1 and LINE 2 buttons on the phone. 1- Make sure
that the surface on the telephone is clean and free of dust and/or oil.
Music On Hold, Messages On Hold, Commercials On Hold by TelephoneOnHold.com

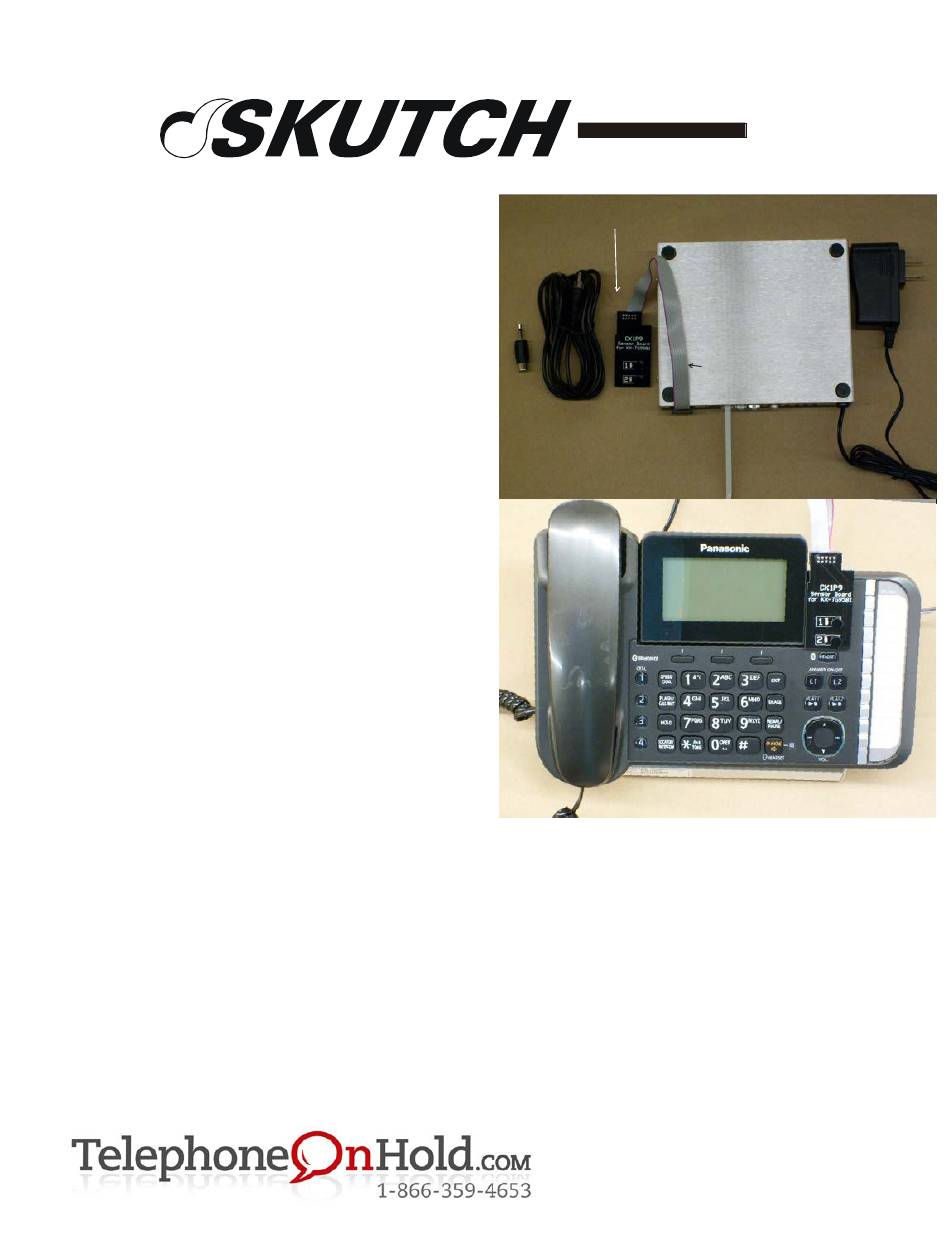

SENSOR Board
Adapter
Audio Cord

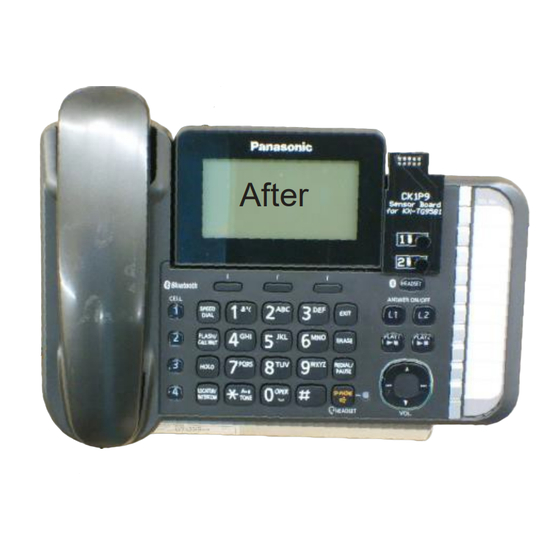

CK1P9 Installed on KXTG9581B
Power Cube
CK-1P9
Box
Flat Cable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKUTCH CK-1P9
Summary of Contents for SKUTCH CK-1P9
- Page 1 Linked to this phone. This phone allows you to register a maximum of 12 handsets to the BASE phone. The CK-1P9 is a true plug and play device. This unit requires an external music on hold source to provide the music on hold audio. When a call is placed ON HOLD or TRANSFERRED to another phone, from the base or any of the phone’s...
- Page 2 5- Connect a MOD cord from Telephone Wall Jack 1&2 to [1&2 to Line] on CK-1. 6- Connect one end of the audio cord to the CK-1P9 in the AUDIO IN jack. Connect the other end to the output of your audio player.
- Page 3 FIG #3 LINE 2 LINE 1/2 Line 1 & 2 to Wall Audio Cord from Music On Hold Player Testing the System: 1- Pickup line 1 on your telephone. The line one Green LED on the SENSOR BOARD should light up. Hang up.
- Page 4 Lights on CK-1 Box. When you place a line on HOLD, the corresponding LED on the rear of the CK-1P9 box lights up to confirm the music on hold condition. When the CK-1P9 is plugged into power, these lights will flash three times then will go out.
