SKUTCH CK1R Manual

"Telecommunication Products to solve Telecommunication Problems"
CK1R
Promotion-On-Hold
Module
For the RCA 25450RE3 telephone system
9/13/06

Introduction

Thank you for purchasing the Skutch CK1R Promotion-On-Hold Module for the RCA
25450RE3 four line cordless phone system. The CK1R adds Promotion-On-Hold
capability to the phone system. The CK1R is a true plug and play device. The unit does
not require any "Learning" to operate. When a call is placed ON HOLD from any
cordless phone or the base station, the ON HOLD caller will hear the Promotion-On-Hold
audio. When the line is re-answered, the audio automatically stops. It's that simple!

Installation

1- On the base telephone, make sure that the surface area around the "LINE
BUTTONS" is clean and free from any dust or oil film. The surface MUST be
clean in order for the "SENSOR BOARD" to stick properly.
2- Locate the "SENSOR BOARD". Peel all three paper protectors off back side, and
carefully align as shown in Fig. 1 . Notice that the "Right" edge of the "SENSOR
BOARD" is aligned to edge "A" of the phone on Fig. 2, and that the lights and
buttons on the "SENSOR BOARD" are centered directly over the LINE
BUTTONS on the base phone.
3- Once you are SURE it is aligned, press down to attach to phone.

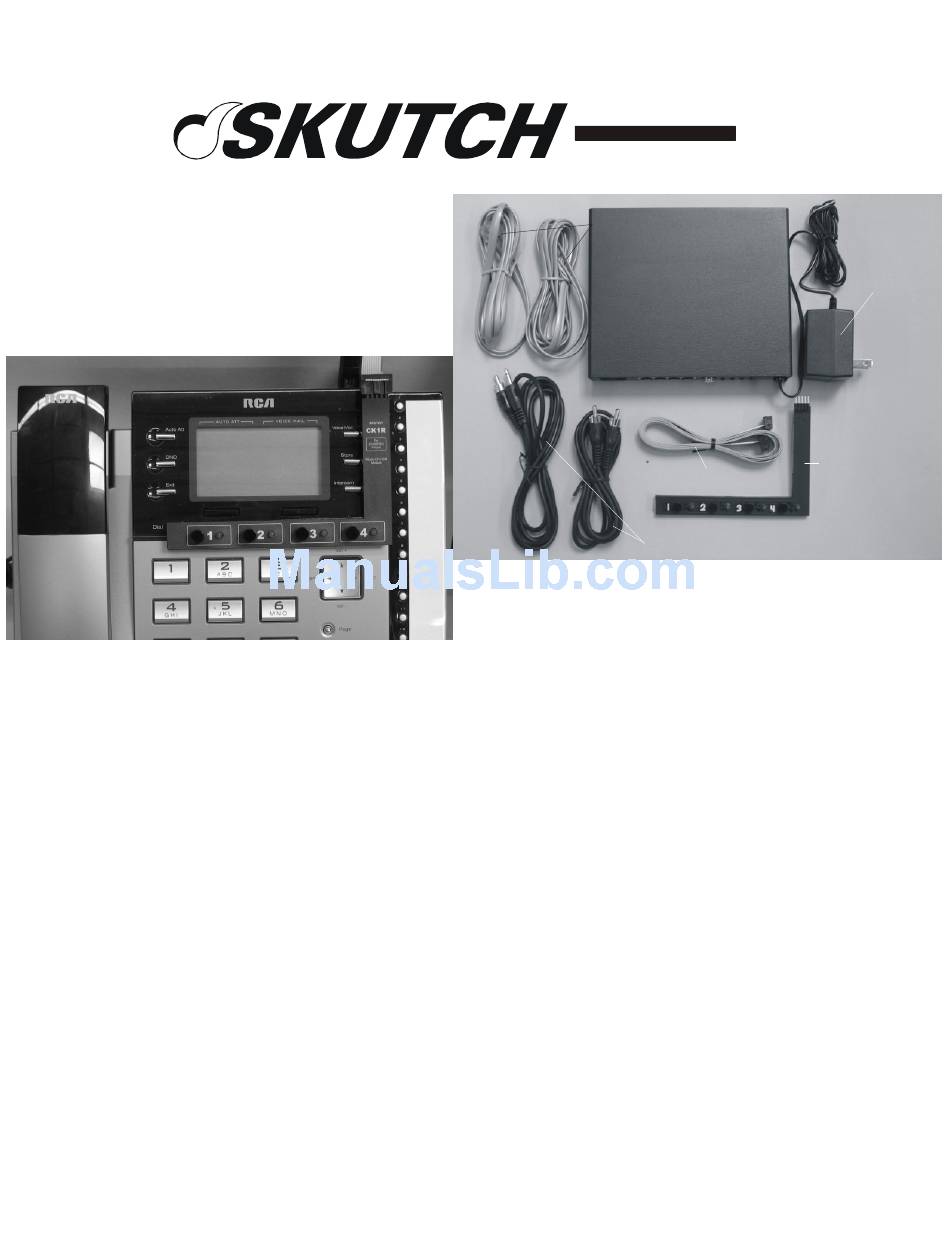

Modular Phone Cords (2)
Page 1 of 5
CK-1R Black Box
Sensor Board Cable
Audio Cables (Use Only One)
Power Cube
Sensor Board
