"Telecommunication Products to solve Telecommunication Problems"

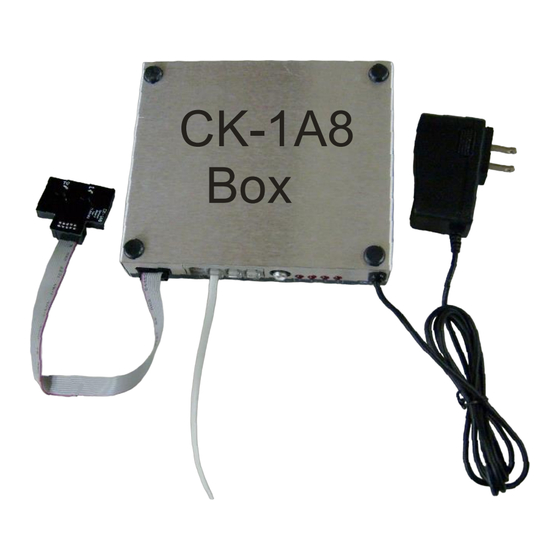

Power Cube
CK-1A8
CK-1A8
Promotion-On-Hold
Box
Module
For the AT&T TL86103
2 line telephone
12/17/15
Audio Cord
with Adapter
Flat Cable
Introduction
Thank you for purchasing the
Skutch CK-1A8 Promotion-On-
Hold Module for the AT&T
TL86103 two line expanded phone
system. This unit will ONLY
provide Promotion-On-Hold to calls
placed on HOLD on the two analog
telephone lines from this phone. It
will not provide Promotion-On-
Hold on any Cell Phone that has
been PAIRED to this phone. The
CK-1A8 ONLY works with this
phone model. The CK-1A8 is a true
plug and play device. This unit
requires an external sound source
such as a CD or Digital Player to
provide the Promotion-On-Hold
audio. When a call is placed ON
CK-1A8 Installed on TL86103
HOLD, from the base or any of it's
cordless phones, the ON HOLD caller will hear the Promotion-On-Hold audio. When the
line is re-answered, the audio automatically stops. It's that simple!
Installation
The SENSOR Board MUST be attached to the phone or this unit will not function. The
Sensor board has been custom molded to fit the TL86103 telephone so alignment is very
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKUTCH CK-1A8
Summary of Contents for SKUTCH CK-1A8
- Page 1 Hold on any Cell Phone that has been PAIRED to this phone. The CK-1A8 ONLY works with this phone model. The CK-1A8 is a true plug and play device. This unit requires an external sound source such as a CD or Digital Player to provide the Promotion-On-Hold audio.
- Page 2 easy. The SENSOR board completely covers the Line 1 and Line 2 push buttons on the phone. 1- Make sure that the surface on the telephone is clean and free of dust and/or oil. 2- Peel the paper protectors off back side of the "SENSOR BOARD" . Carefully slide SENSOR board snug against corner of phone as shown in Fig.
- Page 3 1&2 to [1&2 to Line] on CK-1. 1 & 2 To Phone 6- Connect one end of the audio cord to the CK-1A8 AUDIO IN jack. Connect the other end to the output of your audio player. Do NOT use the supplied Audio Adapter on the CK1A8 side.
- Page 4 ONE YEAR LIMITED WARRANTY This SKUTCH PRODUCT is warranted against defects for a period of one (1) year from the date of the original invoice. Within this period, we will repair it without charge for parts and labor. To obtain warranty service the product must be returned, at the customer's expense, to SKUTCH Electronics along with a copy of the original invoice.
