"Telecommunication Products to solve Telecommunication Problems"
For the AT&T 1040, 1070, and 1080 series of Phones
Introduction
Thank you for purchasing the Skutch
CK-1A4 Promotion-On-Hold Module for

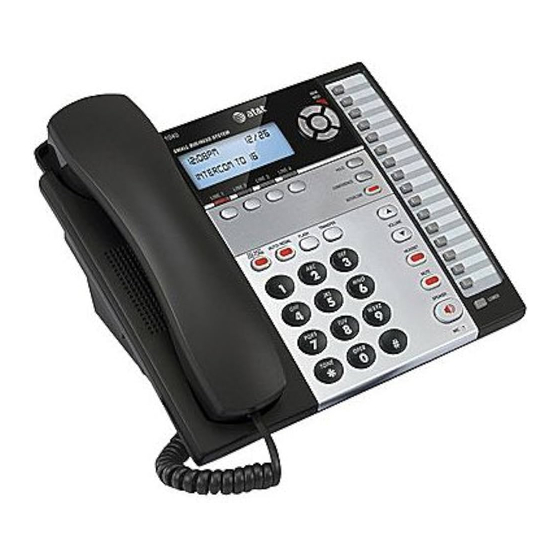

the AT&T 1040, 1070, and 1080 four line
phone system. This unit ONLY works
with these 3 phone models. The CK-1A4
is a true plug and play device. This unit
requires an external sound source such as
a Digital MP3 Player to provide the
Promotion-On-Hold audio. When a call is
placed ON HOLD from any of the
phones, the ON HOLD caller will hear the
Promotion-On-Hold audio. When the line
is re-answered, the audio automatically
stops. It's that simple!
Installation
The SENSOR Board MUST be stuck to
the phone or this unit will not function.
The Sensor Board has a plastic PAD that
has been custom made to fit the contour of
the telephone. This makes it very easy to
align the sensor board. The Sensor Board
should almost snap in to place and fit
snuggly. We have supplied extra adhesive
strips in case they are needed.
3D PAD Version
CK-1A4
Promotion-On-Hold Module
6/12/14 V4 S/N B407000 and above
Page 1 of 4

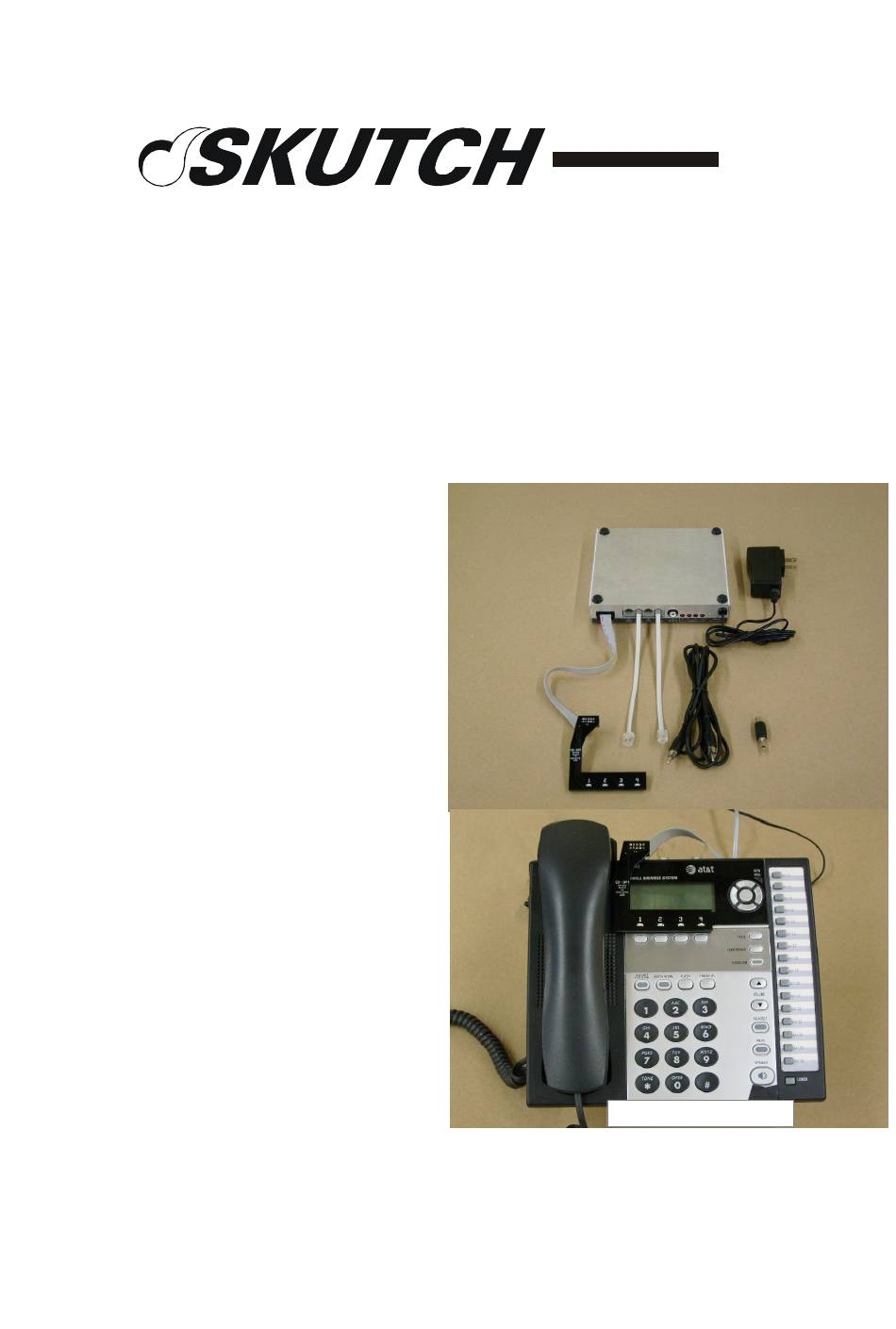

CK-1A4
Flat Cable
SENSOR Board
CK-1A4 Installed on 1040
Box
Power Cube
Audio Adapter
Audio Cord
Advertisement
Table of Contents
Related Manuals for SKUTCH CK-1A4
Summary of Contents for SKUTCH CK-1A4
- Page 1 AT&T 1040, 1070, and 1080 four line Power Cube phone system. This unit ONLY works with these 3 phone models. The CK-1A4 is a true plug and play device. This unit Flat Cable requires an external sound source such as a Digital MP3 Player to provide the Promotion-On-Hold audio.
- Page 2 1- Position the CK-1A4 box under the telephone with the jacks facing towards the back of the phone. (See Fig. 3). 2- Make sure that the surface on the telephone is clean and free of dust and/or oil. 3- Peel the two paper protectors off back side of the "SENSOR BOARD" . Align the SENSOR Board as shown in Fig.
- Page 3 )LJ L3/L4 L1/L2 Audio Cable Lines 1&2 Lines 3&4 4- Connect the short modular cord from [1&2 to Phone] on the CK-1 to the [L1/L2] jack on the Phone. 5- Connect the short modular cord from [3&4 to Phone] on the CK-1 to [L3/L4] jack on the Phone.
- Page 4 • ONE YEAR LIMITED WARRANTY This SKUTCH PRODUCT is warranted against defects for a period of one (1) year from the date of the original invoice. Within this period, we will repair it without charge for parts and labor. To obtain warranty service the product must be returned, at the customer's expense, to SKUTCH Electronics along with a copy of the original invoice.
